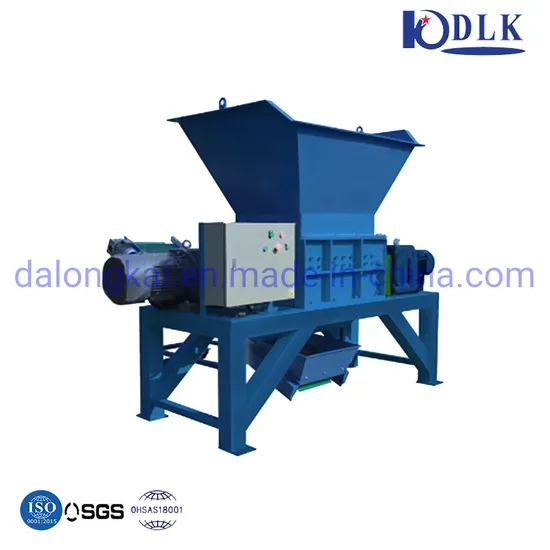

Pcfs180 Plastic Recycling Crusher Shredder Machine
| US$1.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PCFS180
Crushing Style
Grinding and Impact
Cutter Material
High-Speed Steel
Drive
Hydraulic
Object
Plastic, Plastic
Type
Roller Crusher
Power
2.2kw
Rotor Diameter
150mm
Crusher Diameter
180*200mm
Mesh
8mm
Weight
240kg
Principle
Fixed Culling
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
100-250MPA
Warranty
12 Months
After-sales Service
Engineers Available to Service Overseas
Transport Package
Container
Specification
PCFS180
Trademark
Dalongkai
Origin
China
Production Capacity
5 Sets /Month
Product Description
Features of the machine:Special tool steel is imported refined tool. The gap of the tool can be adjusted . After being used, it can be resharpened repeatedly. It can work for a long time.. It has high-strength steel nuts and knife blade holder. The bearing's capacity is strong.The soundproof are installed around the crushing chamber peripheral wall.Separate design , hopper , main body , screen filter are easily cleared.Let the motor overload protection and interlock device , double protection of safety of personnel and motor.It has stepped knife design and particularly strong crushing force.
| Model Number: HBS-500~HBS-630 |
| Certification: SGS |
| Place of Origin: Jiangsu P.R. China |
| Product Name: HBS Scrap Baler&Shear |
| Condition: New |
| Application: Scrap metal |
| Nominal Force: 500Tons ~630Tons |
| Driven Type: Hydraulic |
| Power: 3*90KW~4*90kW |
| Voltage : 21.5Mpa, Customized |
| Color: Customized |
| Automatic Grade: Automatic |
| Minimum Order Quantity: 1 Set |
| Price: Negotiable |
| Payment Terms: 30% T/T In Advance |
| Supply Ability: 5 sets /month |
| Delivery Time: As your requirement |
| Packaging Details: Seaworthy packing |
| After-sales Service : Engineers are available to overseas service |
| Technical Specification | |||||||||||||
| Model | Power(kw) | Rotor diameter(mm) | Crushing diameter(mm) | Crushing capacity (kg/h) | Mesh(mm) | Weight (kg) | |||||||
| PCFS180 | 2.2 | 150 | 180*200 | 100-150 | 8 | 240 | |||||||
| PCFS230 | 4 | 215 | 230*215 | 150-200 | 8 | 340 | |||||||
| PCFS300 | 5.5 | 235 | 300*220 | 200-300 | 8 | 480 | |||||||
| PCFS400 | 7.5 | 260 | 400*270 | 400-600 | 10 | 660 | |||||||
| PCFS500 | 11 | 290 | 500*300 | 460-650 | 10 | 900 | |||||||
| PCFS600 | 15 | 310 | 600*340 | 600-800 | 12 | 1400 | |||||||
| PCFS800 | 22 | 400 | 800*480 | 800-1000 | 12 | 2000 | |||||||
| PCFS1000 | 37 | 500 | 1000*660 | 1000-1300 | 14 | 3000 | |||||||
Applications
It can be used for cabinets , thin pipe , blow molded parts , bottles , shells and other waste plastics' recycling or crushed again or as an auxiliary injection machine to reground and smash machine's nozzle material or defective parts.
Recommended Products
Our factory
Jiangsu Dalongkai Technology Co., Ltd. specializes in the development and production of large and medium-sized hydraulic machinery. Our machine types are mainly hydraulic metal baler and hydraulic metal shear. Our machines are sold all over the world and are well received by users.
