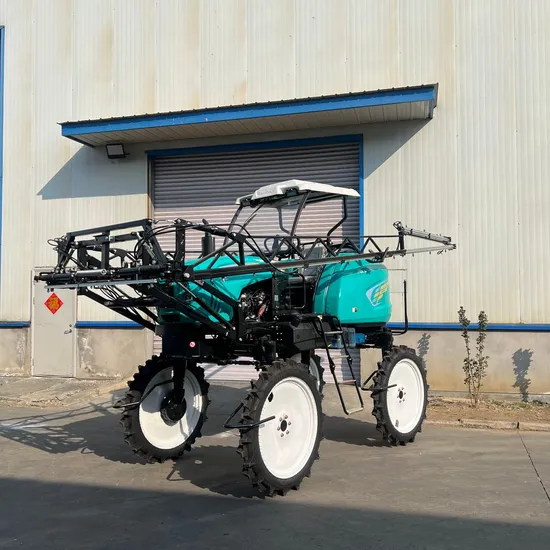

800L Agricultural Boom Sprayer for Large-Scale Farms - Efficient Pesticide Spraying on Corn, Rice, and Cotton

Product Description

Product Parameter:

Project name		Specification parameters	Item name		Specification parameters
Overall size	Overall dimensions (mm)	5250*1960*3080	Powertrain	Engine power (kw/r/min)	36.8/2400
	Ground clearance (mm)	1060		Battery capacity	Two 24V, 45Ah batteries
	Spray length (mm)	12000/15000		Engine type	Four-cylinder water-cooled engine
	Spray rod lift (mm)	320-1720	Walking system	Weight of the whole machine (Kg)	2250
	Wheel track (mm)	1500/1800/1500-1800		Drive	Four-wheel drive
	Wheelbase (mm)	2200		Steering	Four-wheel steering
	Cab	Adjustable		Gearbox	Uniquely designed 8-speed gearbox very smooth
Spray system	Spray rod position	Front		Brakes	Drum Brake
	Spray rod material	Aluminium		Tires	Pneumatic rubber
	Number of spray bodies	24/32		Tire diameter (mm)	1080
	Spray rod type	Hydraulic lift		Tire width (mm)	130
	Medicine cabinet Volume (L)	800/1000		Turning radius (mm)	3850
	Working pressure (Mpa)	0.2-0.5		Drive mode	mechanical drive
	Drug pump flow (L/min)	36-81		Walking speed (km/h)	Low :2.53/8.8/13.2/3.3 High:4.95/17.6/26.4/6.6
	Medicated liquid stirring	Jet +Reflux	Work benefit	Application efficiency	2.5-3.5hec/h
	Medicine pump construction	3-cylinder plunger pump		Topdressing efficiency	3-4hec/h
	Medicine pump drive	Belt drive		Fuel consumption (L/h)	4-6

Product Parameters
Company Profile
Shandong Yuhe Intelligent Agricultural Equipment Co.,Ltd. is located in the provincial key high-end equipment manufacturing industrial park, Yihe New District, Linyi City, Shandong Province. Is an intelligent agricultural equipment research and development, production, sales, service as one of the innovative enterprises. The products are mainly medium and large plant protection machinery, orchard machinery, health and epidemic prevention machinery, mainly used in domestic and foreign agriculture and forestry plant disease control, fertilizer and emergency epidemic prevention and other work.
The company has cultivated plant protection machinery for more than 10 years, has a professional technical team, and has developed and produced a number of products through the national 3C certification, and obtained a number of technical patents. The production of products adopts advanced process welding equipment and assembly technology, follows the quality concept of "details cast quality", strictly controls every detail of welding, processing, procurement, assembly and testing, continues to provide users with excellent products with technical temperament, and provides users with the whole process of crop planting services.
The company's business purpose: adhere to the "environmental protection innovation, convenient and efficient" business philosophy, market-oriented, quality as the core, to fine management as a means, to after-sales service as a guarantee, make the company become the benchmark of the same industry at home and abroad. Under the premise of meeting market demand, to achieve the harmonious development of products, users and market value.
Company Qualification
Packaging & Shipping
Workshop management
FAQ
Q: how can we guarantee quality?
A:Always a pre-production sample before mass production;Always final Inspection before shipment
Q: what can you buy from us?
A: We have the most complete range of agricultural machinery spraying accessories in the industry, as well as various types of spraying machines
Q: What's your delivery time?
A: Normally about 15-30days after got your deposit.Q: what services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF;
