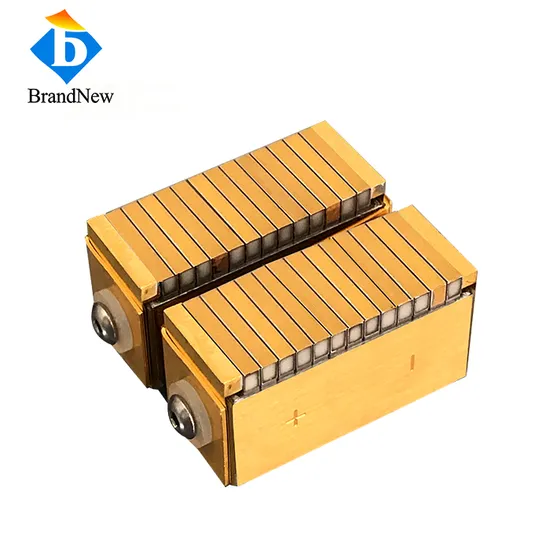

OEM Factory Big Spot Size 2400W 808nm Laser Diode Stack for Vectus Hair Removal Machine

Product Description

Product Description
Item Name
Big Spot Size 2400W 808nm Laser Diode Stack for Vectus Hair Removal Machine2400W 808nm QCW Water Cooled Vertical Stack Diode Laser 24BarsThis diode laser stack is bulit in Palomar Cynosure Vectus Laser 808nm hair removal machine
BrandNew Technology also can repair diode lasers for medical & Aesthetic machine,such as Alma soprano, Vectus Palomar, Lumenis Lightsheer Duet....etc
Feature:100watt per bar,totally 2400wattCustomized geometries and housings availableLow pressure and water flow requirementsSmall bar-to-bar pitch for increased brightnessApplication: Hair Removal Handle RepairingRepairing procedure>Choice A: Send the old broken hand piece to our factory. We will do the process of checking , repairing, cleaning and etc. Then send the fresh new hand piece back to you.
>Choice B: if you have basic assembly capacity, you can send the diode laser stack only to our factory. We remove the old bar and mount the new bar to recover the laser power of the stack.
>Choice C: Measure your stack and confirm the water pipe hole and screw hole position. Then press the button below to buy a ready-made stack which is match your old hand piece
Product Photo
Product Specification

Optical	Typical Value
Center Wavelength λ	808nm
Wavelength Tolerance	±10nm
Output Power	2400W
Fast Axis Divergence(FWHM)	38Deg
Slow Axis Divergence(FWHM)	12Deg
Pulse Width	40ms
Frequency	1Hz
Electrical
Threshold Current Lth	25A
Operating Current Lop	100A
Operating Voltage Vop	42V
Thermal
Operating Temperature	20~30ºC
Storage Temperature	0-55ºC
Coolant	Distilled Water
Flow Rate/Bar	6L/min
Max Inlet Pressure	350~500KPa
Water Temperature(No Condensation)	23~27ºC
Filtered Water Particles	<20um

Delivery & Packing
Packing:One set in a case(According to your request)Delivery:Normally 1-2 WeeksFedEx,DHL Express, UPS, TNTPayment Term:T/T and Western Union, For your ChoiceReturn Policy:Buyer Pay the Shipping Cost.
Why Choose Us
Why BrandNew Technology to be your partner?(1). Higher reliability, performance, long lifetime, all kinds of models and cost-effective.
(2). Offer customized products, simplify your development processing, improve the stability of whole device and accelerate marketing.
(3). Volume manufacturing, many models in stocking
(4). Provide wavelength range from 450nm to 1550nm and a wide range of output power from mW to kW
(5).Professional technology support,24hours timely response.
(6). Door to door delivery with official express DHLCertification
Company Profile
Founded in 2011, Professional Laser diode supplier,manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including laser chip, fiber coupled laser diode, single bar and high power diode laser array.Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.
BrandNews strengths are in talent employees, quality engineering, process control, product development and volume manufacturing.
Our range of products gives this feeling to our customers who rapidly understand that our solutions help them save time in their RD photonic system and integration work.
Core Competency
Diode Packaging Beam Shaping
Reliability Testing Efficient Cooling
