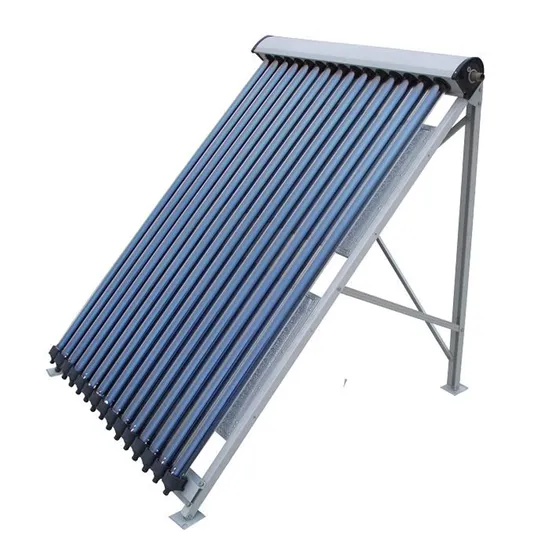

High Efficiency Heat Water Solar Thermal Vacuum Collector
Basic Info.
Model NO.
NPC-58
Certification
ISO, CE
Concentrating
No
Working Temperature Range
Medium Temperature
Type
Pressurized
Application
Water Heater, Solar Thermal, Air Conditioning System
Pipe Material
Glass
Product Name
Air Source Heat Pump Solar Water Heater
Inner Tank
Food Grade Stainless Steel SUS304-2b
Outer Tank
Stainless Steel SUS201/Galvanized Steel
Frame
Stainless Steel SUS201-1.2mm/ Galvanized Steel-1.5
Pressure
Pressurized
Solar Collector
Three Target Vacuum Tubes
Heat Source
Solar Heat Energy+ Electric
Usage
Industrial Project
Transport Package
Carton
Specification
1800*1600mm
Trademark
Bessent
Origin
Jiangsu
Production Capacity
1000 Sets Per Month
Product Description
Product Description| Vacuum tube | Size (mm) | Φ58×1800/Φ47×1500 | ||
| Tube (pcs) | 10/15/20/30/40/50/60 | |||
| Glass | Double layer borosilicate 3.3 glass with high vacuum | |||
| Coating | Three-target selective coating Cu/SS-ALN | |||
| Distance from tube to tube (mm) | 75 | |||
| Manifold | Dimension | 1800*1600mm | ||
| Manifold Inner tank | Food-grade stainless steel SUS304-2B/SS316 | |||
| Manifold | Stainless steel/Galvanized steel | |||
| Out Tank | ||||
| Insulation | High-density polyurethane foaming40mm thickness | |||
| Manifold connections | 3/4" or 1/2" optional | |||
| Bracket | Stainless steel/Galvanized steel/Aluminum Alloy | |||
| Nut and bolts are made up of stainless steel | ||||
| Angle | 0°~ 90°,adaptable to flat or slope roof | |||
| Hail resistance | Φ25mm diameter | |||
| Model Number | Solar Vacuum Tube | Aperture Area/ m² | Installation | |
| Size/mm | Qty/pcs | |||
| NPC-58-15 | Φ58*1800 | 15 | 1.421 | horizontal |
| NPC-58-20 | 20 | 1.894 | horizontal | |
| NPC-58-25 | 25 | 2.369 | horizontal | |
| NPC-58-30 | 30 | 2.842 | horizontal | |
| NPC-58-40 | 40 | 3.788 | vertical | |
| NPC-58-50 | 50 | 4.738 | vertical | |
| NPC-58-60 | 60 | 5.684 | vertical | |
