ASTM A333 Gr6/En10216-2 13crmo4-5 Seamless Pipes
| US$800.00-970.00 | 1 Ton (MOQ) |
Basic Info.
Model NO.
A333 GR. 6/13CrMo4-5 Tubes
Type
Seamless
Technique
Cold Drawn
Material
Alloy Steel
Surface Treatment
Black
Usage
Pipeline Transport, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Machinery Industry, Chemical Industry, Mining, Special Purpose
Section Shape
Round
Pipe Type
Seamless & Welded
Standard
ASTM A333/A335
Standard2
En10216-2
Length
3-20m
Loading Port
Tianjin/Shanghai
Shipment
Bulk Vessel and Container
Steel Grade
P5 P9 P91 P22/T11 T12 T22
Transport Package
Steel Strip in Bundle&Wooden Case
Specification
OD4-1/2-30INCH
Trademark
OEM/TC STEEL
Origin
China
HS Code
730419
Production Capacity
50000 Tons
Product Description
1.Carbon Steel Seamless Pipe Description| Product Name | Seamless Carbon steel pipe | |
| Size | OD | 12.7mm-710mm |
| Thickness | 3mm-45mm | |
| Length | SRL,DRL,5.8M,11.8M | |
| Steel Material | ASTM A53/A106,API 5L,EN10216,DN162ASTM A179 A192 A210 | |
| Steel Grade | Grade A,Grade B,Grade C,X42,X52.S235JRH,S355,P265 ect. | |
| Process | Hot rolled/hot expansion/cold drawn/cold rolled | |
| Usage | High temperature service | |
| Surface | Bared Black Painting, Galvanized,Coating | |
| Proctor | Plastic cap | |
| Package | Bundles, Bulk | |
| Inspection | With Hydraulic Testing, Ultrasonic testing or X-ray Test | |
| Certificate | ISO9001;2000 | |
| Date of Delivery | Less Than 15/20/25/30/40/50/60 Days According To The Quantity | |
| Payment: | L/C or T/T | |
| Port of Shipment | Xingang,China | |
A.Chemical composition in % For API 5L PSL1
| TYPE | Steel grade | C . | Si | Mn . | P | S |
| API 5L PSL1 | B | ≤0.28 | - | ≤1.20 | ≤0.03 | ≤0.03 |
| API 5L PSL1 | X42 | ≤0.28 | - | ≤1.3 | ≤0.03 | ≤0.03 |
| API 5L PSL1 | X52 | ≤0.28 | - | ≤1.4 | ≤0.03 | ≤0.03 |
| API 5L PSL1 | X56 | ≤0.28 | - | ≤1.4 | ≤0.03 | ≤0.03 |
| API 5L PSL1 | X60 | ≤0.28 | - | ≤1.4 | ≤0.03 | ≤0.03 |
| API 5L PSL1 | X65 | ≤0.28 | - | ≤1.4 | ≤0.03 | ≤0.03 |
| API 5L PSL1 | X70 | ≤0.28 | - | ≤1.4 | ≤0.03 | ≤0.03 |
| TYPE | grade | Tensile strength (Mpa) | Yield strength (Mpa) | Elongation |
| API 5L PSL1 | B | ≥415 | ≥245 | As per API 5L |
| API 5L PSL1 | X42 | ≥415 | ≥290 | As per API 5L |
| API 5L PSL1 | X52 | ≥460 | ≥360 | As per API 5L |
| API 5L PSL1 | X56 | ≥490 | ≥390 | As per API 5L |
| API 5L PSL1 | X60 | ≥520 | ≥415 | As per API 5L |
| API 5L PSL1 | X65 | ≥535 | ≥450 | As per API 5L |
| API 5L PSL1 | X70 | ≥565 | ≥483 | As per API 5L |
| Level | Steel grade | C . | Si | Mn . | P | S |
| PSL2 | B | ≤0.24 | - | ≤1.20 | ≤0.03 | ≤0.03 |
| PSL2 | X42 | ≤0.24 | - | ≤1.3 | ≤0.03 | ≤0.03 |
| PSL2 | X52 | ≤0.24 | - | ≤1.4 | ≤0.03 | ≤0.03 |
| PSL2 | X56 | ≤0.24 | - | ≤1.4 | ≤0.03 | ≤0.03 |
| PSL2 | X60 | ≤0.24 | - | ≤1.4 | ≤0.03 | ≤0.03 |
| PSL2 | X65 | ≤0.24 | - | ≤1.4 | ≤0.03 | ≤0.03 |
| PSL2 | X70 | ≤0.24 | - | ≤1.4 | ≤0.03 | ≤0.03 |
| Level | grade | Tensile strength (Mpa) | Yield strength (Mpa) | Elongation |
| PSL2 | B | 415-760 | 245-450 | As per API 5L |
| PSL2 | X42 | 415-760 | 290-495 | As per API 5L |
| PSL2 | X52 | 460-760 | 360-530 | As per API 5L |
| PSL2 | X56 | 490-760 | 390-545 | As per API 5L |
| PSL2 | X60 | 520-760 | 415-565 | As per API 5L |
| PSL2 | X65 | 535-760 | 450-600 | As per API 5L |
| PSL2 | X70 | 565-758 | 483-621 | As per API 5L |

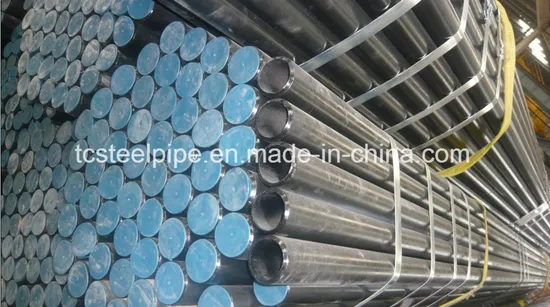

2.Carbon Steel Seamless Pipe Showcase
3. Carbon Steel Seamless Pipe Process 4.Carbon Steel Seamless Pipe Production Facility 5.Carbon Steel Seamless Pipe Inspection Equipment 6.SA179/SA192 CHEMICAL AND MECHANICAL COMPONENT:
| ASTM A179/(ASME SA179) | |
| Seamless Cold Drawn Low Carbon Steel Heat Exchanger And Conderser Tubes | |
| Application: | For tubular heat exchangers,condensers,and similar heat transfer apparatus. |
| Size(mm): | O.D.:6.0~114.0 W.T.:1~15 L:max 12000 |
| Chemical Composition | C | Mn | P≤ | S≤ | Si≤ |
| 0.06-0.18 | 0.27-0.63 | 0.035 | 0.035 | 0.25 |
| OD In (mm) | + | - | WT In(mm) | + | - |
| <1(25.4) | 0.10 | 0.10 | ≤1.1/2(38.1) | 20% | 0 |
| 1~1.1/2(25.4~38.1) | 0.15 | 0.15 | >1.1/2(38.1) | 22% | 0 |
| >1.1/2~<2(38.1~50.8) | 0.20 | 0.20 | |||
| 2~<2.1/2(50.8~63.5) | 0.25 | 0.25 | |||
| 2.1/2~<3(63.5~76.2) | 0.30 | 0.30 | |||
| 3~4(76.2~101.6) | 0.38 | 0.38 | |||
| >4~7.1/2(101.6~190.5) | 0.38 | 0.64 | |||
| >7.1/2~9(190.5~228.6) | 0.38 | 1.14 |
ASTM A192/A192M-02 | |
| Seamless Carbon Steel Bolier Tubes for High-Pressure | |
| Application: | For seamless carbon steel bolier and superheater tubes for high-pressure service |
| Size(mm): | O.D.:6.0~114.0 W.T.:1~15 L:max 12000 |
| Chemical Composition | C | Mn | P≤ | S≤ | Si≤ |
| 0.06-0.18 | 0.27-0.63 | 0.035 | 0.035 | 0.25 |
| OD In (mm) | + | - | WT In(mm) | + | - |
| <1(25.4) | 0.10 | 0.10 | ≤1.1/2(38.1) | 20% | 0 |
| 1~1.1/2(25.4~38.1) | 0.15 | 0.15 | >1.1/2(38.1) | 22% | 0 |
| >1.1/2~<2(38.1~50.8) | 0.20 | 0.20 | |||
| 2~<2.1/2(50.8~63.5) | 0.25 | 0.25 | |||
| 2.1/2~<3(63.5~76.2) | 0.30 | 0.30 | |||
| 3~4(76.2~101.6) | 0.38 | 0.38 | |||
| >4~7.1/2(101.6~190.5) | 0.38 | 0.64 | |||
| >7.1/2~9(190.5~228.6) | 0.38 | 1.14 |
