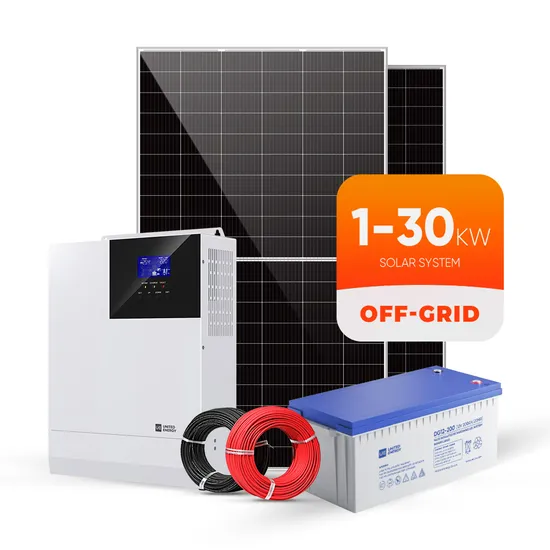

Hot-Selling Residential Solar Energy System 5/10/20/30kw Complete Set with Hybrid off-Grid Inverter and 48V Lithium Battery

Product Description

Product Description

Components	UE5KW-OFF	UE8KW-OFF	UE10KW-OFF	UE15KW-OFF	UE30KW-OFF
560W Mono Solar Panel	10 Piece	15 Piece	18 Piece	30 Piece	60 Piece
MC4 Y Branch	1 Pair	1 Pair	2 Pair	/	/
Combiner Box	/	/	/	3 in 1 out	4 in 1 out
Off Grid Inverter	5KW	8KW	10KW	15KW	30KW
Battery	Lead-Acid, Lithium Ion, Capacity customized based on user's demand
DC Cable	100 Meters	100 Meters	200 Meters	300 Meters	500 Meters
MC4 Connector	10 Pair	10 Pair	20 Pair	20 Pair	30 Pair
Mounting System	Standards Pitched Roof ( Customized Optional)

System ComponentsPerc / Topcon PV ModulePeak Power Watts: 560W
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75
V Short Circuit Current: 13.63A
Dimensions:2279x1134x35/30mm Weight:28 kgOff Grid InverterThe Off Grid Inverter is Integrated with a MPPT Solar Charger Controller,a High Frequency Pure Sine Wave Inverter and a UPS
Fuction Module in One Machine.Remote Monitoring is Available by Using Wifi Monitoring Kit.PV Mounting SystemMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs OptionalBatteryLead-AcidLithium Ion
Capacity customized based on user's demandDC & AC Disconnect SwitchIP Rating: IP66
Rated Voltage: 600VDC/1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,32ADC & AC Disconnect SwitchCross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
PV ToolsWire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
Professional Packing
UE Project Case
Company Profile
As a world-class solar products manufacturer, United Energy specializes in research, development, production, and sales of solarPV products.
United Energy founded in 2009, National high-tech enterprise, specializing in R&D, which manufactures solar cells, modules, and PV power generation systems with global production capacity of 6.5GW, aiming at becoming "The expert of solar power generation". Serves worldwide customers with high-quality products and professional services. So far more than 10 GW United Energy' s products have been widely applied in over 150 countries.
