Wire EDM Small CNC EDM Wire Cut Machine CNC Cutting Equipment

Product Description

Our Advantages

Product Description

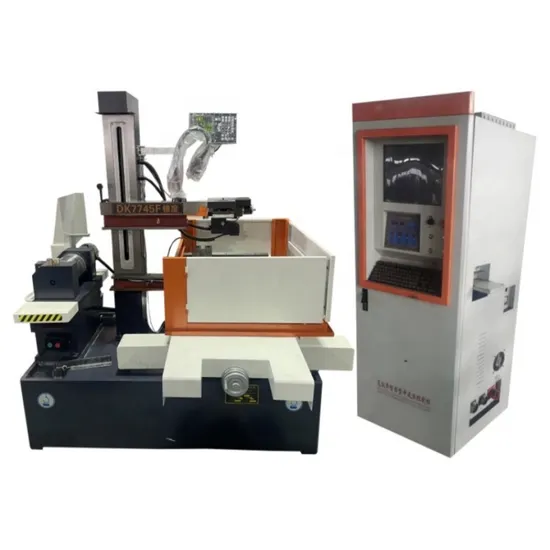

DK7735 high speed wire cutting machine
During WEDM, a pulse discharge is performed between the electrode wire and the workpiece. When an electric pulse comes, a spark discharge is generated between the electrode wire and the workpiece. In the center of the discharge channel, the temperature can reach above 10,000°C instantaneously. The high temperature melts the metal of the workpiece, thereby achieving the purpose of cutting metal. Factory supply High speed Computer control Automatic EDM machine DK7720 DK7725 DK7740 DK7745 CNC wire cutting machine.
High-grade machine adopts precision linear guide rail, and high column optionally equips electric lifting roller span adjustment. Swinging big taper series machine tools are equipped with wire electrode wire agencies, and produce semi-hermetic environmental protection machine tools. Molybdenum wire diameter range is from 0.12-0.18mm, maximum processing speed is more than 120 mm² / min, the best surface roughness ≤Ra2.5um(single cut)Ra1.6mm(multicut).

Product Parameters

Model	Worktable size (mm)	Worktable travel (mm)	Max. cutting thickness (mm)	Processing taper	Max. load weight (kg)	Main machine weight(kg)
DK7720	250x320	200x250	200	6°/80mm	100	800
DK7725	270x420	250x320	400	6°/80mm	200	1200
DK7732	380x600	320x400	400	6°/80mm	300	1400
DK7740	410x710	400x500	400	6°/80mm	450	1600
DK7745	500x750	450x550	400	6°/80mm	450	1650
DK7755	596x880	550x650	500	6°/80mm	800	2500
DK7763	790x1260	630x1000	600	6°/80mm	1000	3500
DK7780	900x1500	800x1200	600	6°/80mm	1500	5500
DK77120	1300x1900	1200x1600	600	6°/80mm	4000	10000

Detailed Photos

Company Profile
Henan rowdai Machinery Equipment Co., LTD is a well-known machine tool manufacturer in the world market. The various products and technologies it operates are at the leading level at home and abroad, and the product range covers many fields. Henan rowdai Machinery Equipment Co., LTD has the right to operate import and export business, and the product quality reaches international standards. And passed the ISO international quality system certification. With excellent product quality, the company actively explores domestic and foreign markets, the marketing network covers the world, customers include many Fortune 500 companies, and the product quality has been well received by customers.Henan rowdai Machinery Equipment Co., LTD insists that the success of customers is our success, insists on providing customers with excellent products and professional services, and develops into the most attractive supplier in China, and cooperates with customers all over the world to achieve win-win development.
FAQ
1. who are we?We are based in Henan, China, start from 2022,sell to Southeast Asia(15.00%),Africa(10.00%),North America(10.00%),EasternEurope(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),CentralAmerica(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),South America(5.00%),Oceania(5.00%). There are total about 51-100 peoplein our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?CNC Lathe,CNC Milling Machine,Metal Cutting Machine,Roll Forming Machine,Machine Tool4. why should you buy from us not from other suppliers?Over more than 20 years experience for exporting machines After service is very finished fully Best price for customer from allover the world Technical engineers are very professional5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
