Portable Laser Cleaning Machine for Rust Removal/Tire Mould Laser Cleaner Machine 200W

Product Description

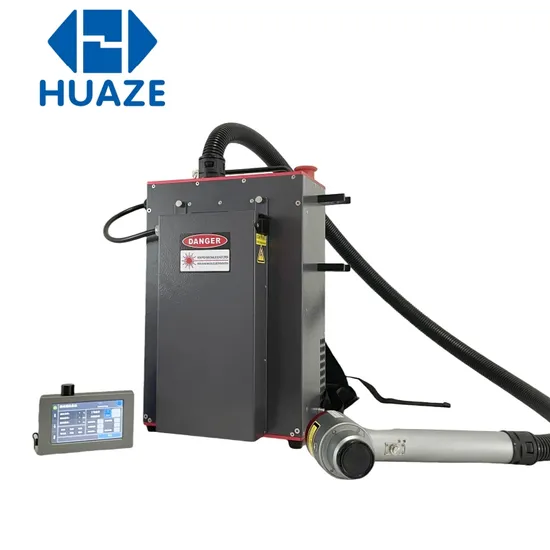

Backpack hand-held Laser Cleaning Machine 200w
The laser cleaning equipment produced by our company is a new generation of surface cleaning high-tech equipments.Environmental friendly laser ablation method to replace chemical and mechanical cleaning methods, which is easy of installation, manipulation and automation.. It can remove the surface of the rust, resin, stains, oil, dirt, coating, paint etc. Laser cleaning is considered to be the most reliable and effective solution because of its non-abrasive, non-contact, non-thermal effect and applicability to various materials. Laser cleaning will be instead of traditional chemical and mechanical cleaning methods for environmental protection and safety. our machine is widely using in various industries, including ships, auto repair, rubber molds, high-end machine tools, tracks, and environmental protection.
Welcome to send us inquiry now, discounts will be available. Product Description
1.1 What is Laser cleaning machine?
This 100w backpack mini pulse laser cleaning machine is hand-held, small size, light weight.It can achieve very fast and simple cleaning, with a backpack style design, whole machine weight is about 12-17kg, you can carry it on your back to clan spots that other lasrge equipment cannot reach, such as outdoor work at heights, corner cleaning etc, mainly used for laser graffiti clean, weld cleaning and metal primer removal.It is also known as laser rust cleaning machine;
1.2 How many types of laser cleaning machine?
There're two most common types of laser cleaning machines:
1.One is pulsed laser cleaning machine.
Pulsed laser cleaning machine with pulse laser source and galvo cleaning head, if you have high-value products to be cleaned without harm the base materials, you must use this Pulsed laser cleaning machine, because CW laser cleaning machine will damage the base materials. If you wanna cleaning oil fouling, blot, and dirt on molds, you can choose this damage-free pulsed laser cleaning machine, it support 50w, 100w, 200w.

2.Another one is CW fiber laser cleaning machine;
CW fiber laser adopt handheld cleaning head with continuous laser source, the advantage of CW laser cleaning machine is of high cost performance, if you have low requirements for laser cleaning and only remove rust or thin paint of stainless steel, mild steel, iron and other metals, you can choose the CW laser cleaning machine. The laser power support 1000w, 1500w, 2000w.

1.3 How is it working?
Laser cleaning machine is a type of laser ablation machine to irradiate and heat the surface material of object with a CW (Continuous wave) laser or pulsed laser and make it evaporate or sublime to achieve the purpose of removing the surface materials.

1.4 Security identification & Electrical safety
Product Parameters
2.1 Operating environment and related parameters

Operating Environment
Content	HZ-B200MC
Supply Voltage	Standard AC220V±10%, 50/60Hz power adapter (output DC48V)
	Optional single battery, 200w continuous work 80min
Power consumption	≤800w
Working environment temperature	5ºC~40ºC
Working environment humidity	≤80%

Optical Parameters
Average laser power	≥200w
Power instability	<5%
Laser working mode	Pulse
Pulse width	13-500ns
Maximum monopulse energy	5mJ
Power regulation range(%)	0-100(Gradient Adjustable)
Repeat frequency (kHz)	1-3000 (Gradient Adjustable)
Fiber length	1.5m
Cooling mode	Air cooling

Cleaning Head Parameters
Scan range(Length*Width)	0mm~145mm, continuously adjustable; Biaxial supporting 9 scanning modes
Field mirror focal length(mm)	160mm (Optical 210mm/254mm/330mm/420mm)
Depth of focus	About 5mm

Mechanical Parameters
Machine size (L*W*H)	About 268*135*445mm(Do not contain batteries)
	About 268*191.5*445mm(Contain the battery)
Size after packing (L*W*H)	About 860*840*420mm
Machine weight	About 12.5kg (Do not contain batteries)
	About 17kg(Contain the battery)
Weight after packing	Carton packing	About 23kg(Do not contain batteries)
		About 27.5Kg (Contain the battery)
	Export packing	About 49.9Kg (Do not contain batteries)
		About 55.3Kg (Contain the battery)
Cleaning head weight(excluding Optical head)	<0.75KG
Mode of operation	Wireless control screen

2.2 Products structure
Product Features
3.1 Which features of the handheld laser cleaning machine?
3.2 What's the configurations of this handheld laser cleaning machine?

Name of name	Model specifications	Units	Quantity	Remarks
Laser cleaning mainframe	HZ-B200MC	Table	1	/
Laser cleaning head	HZ-QCDXY200P	Sets	1	/
Process database	Built-in	Sets	1	/
Laser Protecive glasses	SD-3	Payment	1	/
Protect the lens	43*2	Pcs	5	/
Lens cleaning kit	Chassis	Pcs	10	/
Specialized 220V power adapter	HZ-DC48500	Sets	1	/
Wireless control panel	HZ-43W	Sets	1	/
Control screen lithium battery charger	DC12V0.3A	Unit	1	/
Specialized lithium battery module	48V20Ah	Unit	1	Optional
Dedicated lithium battery charger	HZ-DC5405	Unit	1	Optional

3.3 16 kinds world languages support;
Our Laser cleaning machine' cleaning software is easy to understand, it supports 16kinds languages, including English, Chinese, Russian, Spanish etc
3.4 Compare with traditional cleaning machine, what advantages of our laser cleaning machine?

Item	Traditional		New Generation
	Dry Ice Cleaning	Mechanical Polishing	Laser cleaning machine
Workpiece Damage	Damaged	Damaged	No Damage
Side effect	No Pollution	Polluted	No pollution
Operation	Simple	High-intensity work	Simple
Contact	No contact	Touch and grind	Non contact
Cleaning Size	No limit	No limit	Accurate size cleaning
Consumable	Dry Ice	Sandpaper, grinding, wheel, oil stone etc	Only power on the machine
Frequency or Efficiency	Slow	Generally	Fast, improve at least 6times
Cost	Initial:Middle	Initial:Low	Initial:High
	Later:High	Later:High	Later:Low

Installation Instructions
Application
Our Laser cleaning machine is widely using in construction works,Machinery repair shops, Advertisement, Building material shops, Auto parts, Ship industry, for example rubber mold,High-end machine manufacturing,tire mold track,environmental protection industry,energy and Mining, Manufacturing plant etc
Hot selling Recommend
Company Profile
Henan Huaze Intelligent Technology Co., Ltd. is a technology growth enterprise specializing in the research and development, sales, and service of intelligent device technology; The company relies on the research and development resources of "Wuhan · China Optics Valley" and has mastered multiple core technologies in laser processing. It has full technological innovation capabilities in laser cleaning, laser welding and other equipment, and its production factory covers an area of 4800 square meters.
The company's laser cleaning and micro jet water guided laser equipment is widely used for component bonding, welding surface pretreatment, metal surface rust removal, paint stripping (full surface rust removal, paint stripping or designated parts rust removal, paint stripping), as well as cleaning various industrial products or molds.
Through continuous efforts, our products have received high praise from customers in various fields;
The product is popular in Europe, America, Australia, the Middle East, Southeast Asia, and South Africa, and enjoys a good reputation among domestic and foreign customers.
The company is committed to establishing long-term strategic partnerships with suppliers and distributors, improving the technical expertise of its employees, becoming a leader in quality and innovation in the laser equipment industry, and achieving mutual benefit and win-win cooperation with customers.
Welcome to visit and inspect our company!
FAQ
1. Why Choose us?
Customer always first, provide you comprehensive and personalized pre-sales and after-sales services such as installation, debugging, training, and maintenance.
2.What you can get?
Free technical consultation, process and software upgrades and other services;Lifetime maintenance service, only charging cost for parts;
Providing extensive software and hardware support throughout life;Free one-year warranty for equipment (excluding human damage and fiber breakage)
3.If we can visit your factory?
Sure, welcome you to visit us.
4.What about the lead time?
Sample:5-7days;Batch quantity:7-15days;
5.Which Terms of payment you support?
T/T in advance; Xt or Paypal for small order, quick receipt.
