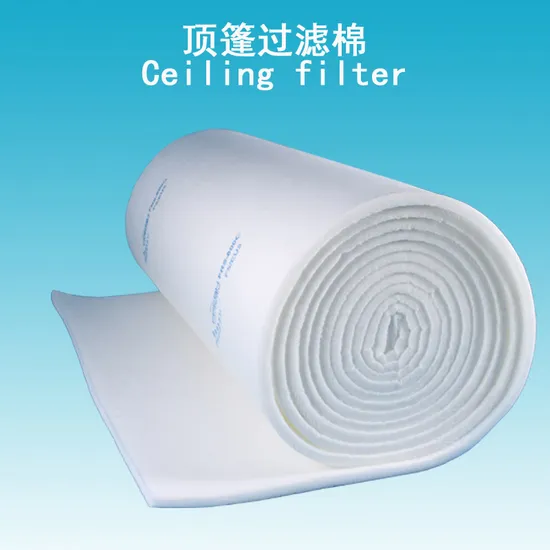

Synthetic Fiber 560g Ceiling Filter for Spray Booth

Product Description

F5/EU5 560G Ceiling Filter Material

Feature:
* Low Initial airflow resistance
* Material Flexibility
* High dust capture capability
* Air outlet side pasted with cloth or mesh
Application:
Mainly use for air intake system and painting workshops which are strict with spraying technology.
1) Filtering micro particles in spray booth air inflow system. 2) Dust removal in Painting equipment, painting system and painting workshop 3) Secondary filtering in high-quality painting system and air intake system of baking equipment 4) Medium filter media for producing air filter 5) Using in piece, in roll, or with frame.
Details:
* Hot-blast air fusion technology with elastic and tenacious fiber combed to form compact filter structure. * Air intake side surface fiber treated with sticky glue, improving the capture of the particles adhesion. * Air outlet side pasted with cloth or mesh, in order to ensure the strength and effect of airflow uniformity * With better resistance to corrosion of general solvent, weak acid and Weak base.
Technical parameters:
Filter class: F5/M5(EN779),EU5(EUROVENT)
Filter particles: ≥1μm
Average arrestance: ≥95%(ASHRAE52.1-1992)
Inflaming retarding class: F1(DIN 53438),B1(GB/T 17591-2006)
Final pressure: 400pa (recommended)
Dust holding capacity: 550g/m2
Humidity resistance(relative humidity): ≤100%RH
Temperature resistance: ≤100ºC
Temperature resistance in a short moment: ≤120ºC
Technical Specification:

Type	Dimension			Rated air velocity (m/s)	Initial pressure (Pa)	Initial air flow (m2/h)
	Length (m)	Width (m)	Thickness (mm)
FRS-560G	14/21	1.6/2	22±2	0.3	≤45	1080
Remark: Other specifications can be customized according to demand

Product Display:
Frequently Asked Questions
1. When can I get the quotation?
Answer: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Do you accept any OEM/ Customization order?
Answer: Yes, we are open to all OEM orders, once your LOGO is granted to be used by us from you ,We fully understand all ventilation projects / tenders are customized normally, thus we are open to size / spec customization.
3.What Certification, What QA measurements you have?
Answer:
Guangdong Fresh Filter Co.,Ltd is certified by UKAS ISO9001-2015 and TS14969.
All Fresh Air Filter products are strictly following EN779:2012 and EN1822 criteria. For any 3rd party testing, we can always submit to well-known 3rd parties for product testing.
In-house test report(s) can be furnished upon request.
Up to now, FRESH AIR FILTER has been granted for EN1822-5 sample testing for H14 HEPA Filters, also ISO16890 test certificate by European Authority, 3rd party CE certificate for Air filters and Activated carbon filters, all the test reports/certificates can be furnished upon request.
