2400mm Tissue Paper Making Solution for Capacity 8 Tons/Day

Product Description

Feasibility
1. Required workshop size(L x W): 50 x 12 x 6.5 meter
2.The factory area: ≥ 3000
3.Natural gas consumption: 350m3 for producing 1 ton paper
4.Power consumption: 250-280 kwh for producing 1 ton paper
5.Water consumption: 25 tons for producing 1 ton paper (80% be recycled)
6.Raw material consumption: 1.1-1.2 tons for producing 1 ton paper
7.Operating personal: 8-10workers/shift, 3 shifts/24hours
8.Delivery time: 2-3 month from the date receiving the first payment
9.Installation time: about 3 months
.Technical parameter

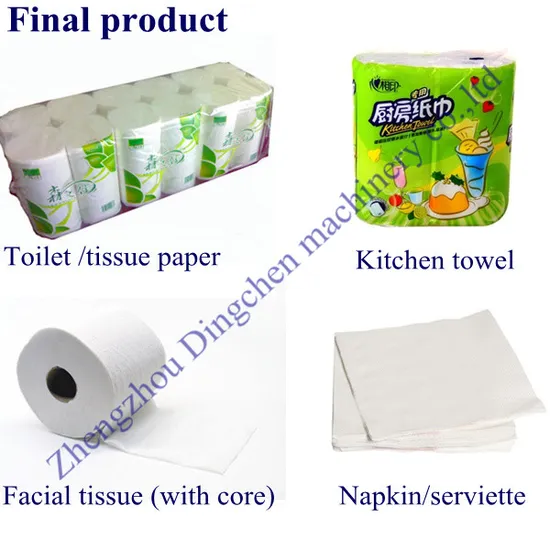

1. Raw material: waste paper,wood pulp Output paper: tissue paper Paper weight: 15-40 g/m2 Net paper width: 2400mm Width of cylinder mold: 2800mm Capacity: 8 Ton/Day Working speed: 80-160m/min Design speed: 180m/min Rail gauge: 3300mm Drive way: A/C converter speed controlling, section drive.
. Main equipment for paper machine

No.	Item	Qty (set)
1	2400mm high speed tissue paper machine	1
2	Exhaust hood of dryer cylinder	1
3	Φ800mm axial-flow ventilator	1
4	15 type roots vacuum pump	1
5	Suction box	3
6	Moving water spray pipe device	2
7	High pressure water pump	1
8	Air compressor with air tank	1
9	Frequency control cabinet	1
10	4T Boiler(burning gas)	1
11	Working platform	1
12	2400mm automatic rewinding & perforating embossing machine	1
13	Φ450 Cutting machine	1
14	Plastic bag sealing machine	1

IV. Pulp making equipment

No	Item	Qty (set)
1	10m conveyor	2
2	8m3 high concentration pulper For waste paper( with deinking function)	1
3	5m3 D type hydra-pulper For wood pulp	1
4	2m2 High frequency vibrating screen	2
5	pressure screen	1
6	35 m3 bleacher	4
7	Φ380mm refiner	2
8	Φ450mm refiner	1
9	Φ700mm propeller	8
10	606 de-sander	12pc
11	-150 pulp pump	8
12	-150 water pump	2
13	-200 water pump	2
14	Electric operating cabinet	8

V. Quotation
The total amount of the above production line is USD270,000.00/set EXW (including all motors, but without civil works, pipes, electric lines, cable, meters, valves, instruments, and boiler) The price for 4T gas boiler is USD45,000/set EXW.
(3) Payment term: 30% T/T in advance, 70% L/C at sight or T/T before transportation.
Installation and commissioning: Technicians will be sent for installation and commissioning according to customer's requirement. Customers should pay the wages at USD2000/month for each technician, afford all the charges for traveling, visa, safety insurance, living, and provide them necessary support. It will take about 3 months for installation and commissioning the above production line.
VI. Guarantee term
a. Quality guarantee is one year;
b. Consumable parts are not in the quality guarantee range;
c. If any damage caused by improperly operation, the seller will not be responsible;
d. After installation is ready and if machine is not performing, seller will be responsible for the all costs incurred by the buyer, but if machine is not performing due to reason of lack of water, electricity and lack of raw materials after installation, the seller will not be responsible;
e. Technical support
We provide technical support all the time. If any questions about this production line, we will answer within 24hours.
. Main machine structure with spec
Cylinder mold section: Φ1800mm×2800mm×3300mm stainless-steel plate cylinder mold 1set. Φ500mm×2800mm×3300mm couch roll 1 set, coated by rubber, rubber shore hardness 38ºC±2. Dryer section: Φ2500mm×2800mm×3300mm alloy dryer cylinder 1 set, with double-deck breath exhaust hood, Φ600mm×2800mm×3300mm touch roll 1 set, Coated by rubber, rubber shore hardness 95ºC±2, pneumatic pressurizing device, with pneumatic blade 2 sets. Winding section: Φ900mm×2800mm×3300mm sweat cylinder 1 set, winding paper on sweat cylinder. Driving part: A/C converter speed controlling, section drive.
5. Paper converting part
1 set of 2400mm rewinding machine with embossing and perforating.
1 set of tissue paper cutting machine.
1 set of sealing machine
