Product Description

Metal Roof Tile Panel Cold Roll Forming Machine with High Speed
Metal Roof Tile Panel Cold Roll Forming Machine with High Speed is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 940 mm, thickness range is from 0.3mm to 0.8mm. We adopt 16mm thick wall panel type to make machine frame strong. Usually it can run with the max speed to 10/min, PLC with touch screen operation make the machine simple and easy for usage.
1. Processing flow diagram of machine:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic stepping→Hydraulic cutting →Output table
2. Profile Drawings for Reference:
3. Technical parameters:

Manual decoiler
Capacity	5ton
Feeding width	MAX 1300mm
Expanding range	460-520mm

Metal Roof Tile Panel Cold Roll Forming Machine with High Speed
Main motor power	5.5kw
Drive	1'' single chain
Type:	Wall board
Main shaft dia	¢70mm
Material	45# forge steel and quenched
Roller material	45# high grade forge steel, chrome coated 0.05mm
Roll station	16 groups
Raw material	0.3-0.8mm
Coil width	914mm
Working speed	3m--5m/min(Exclude cutting time)
Length Tolerance	±1.5mm
Weight of machine	About 5 ton
Size of machine	About 7500×1800×1500mm L x W x H
Color of machine	Yellow and Blue
Coder	Omron, made in Japan
Control	PLC Panasonic, made in Japan. 380V 50Hz, 3phase (Also depend on client)
Computer operating panel	Touching screen
Other electrical element	Schneider
Cutting	Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power	3KW
Blade material	Cr12MOV, quenched 58°-62°
Working pressure	16MPa
Cutting tolerance	+/- 1.0mm

4. Equipment list:

No.	Product Name	QTY
1	5T Manual decoiler	1
2	Metal Roof Tile Panel Cold Roll Forming Machine with High Speed (Includes Hydraulic steeping, cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

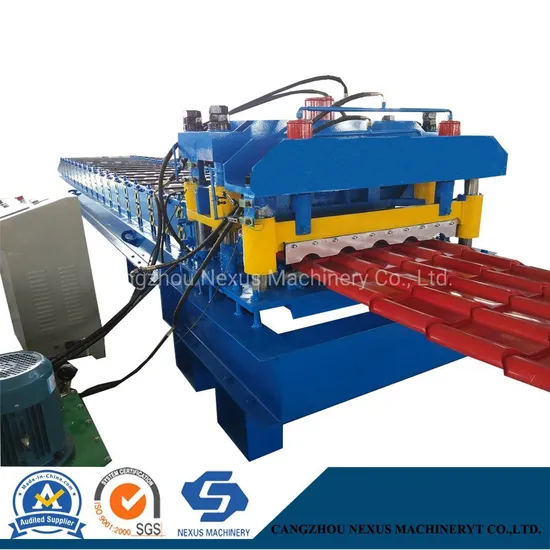

5. Character of main structure: The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming. It is very easy to install the equipment and suitable for producing in the factory. Low noise with high efficiency. 6. Photos of Metal Roof Tile Panel Cold Roll Forming Machine with High Speed for Reference:
Electric Elements on Roll Forming Machine:
Packing Photos of Metal Forming Equipments:
Exhibition Photos:
