Outdoor FTTH FTTX Dome Optical Cable Heat-Shrink Distribution Fiber Optic Splice Closure

Product Description

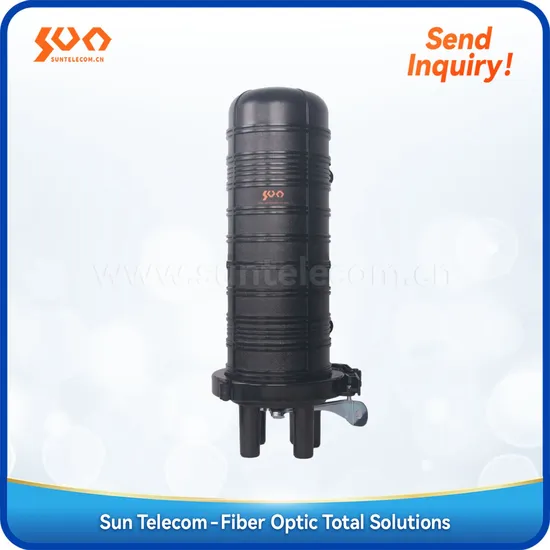

Product Description Sun Telecom's SUN-FOSC-ZT701 fiber optic splice closure is used for outdoor cable distribution, splicing, storage and splicing point protection. This type of closure can be used in aerial mounting, wall mounting, pole mounting, direct buried and pipeline laying installations.
Features Advanced internal design with enough space for fiber splicing and storage Long lasting body with high-strength PC plastic material Protection rating IP68 Cable ports with heat shrink sealing One oval-shaped port for straight-through cabling
Applications FTTH access networks Telecommunication networks CATV networks Local Area Networks Specifications

Parameters	Specification
Material	PC
Protection Rating	IP68
Number of In-out Ports	4
Cable Diameter (mm)	3 holes: 8~16 fiber optic cables 1 oval shape hole: 1 fiber optic cable 8~25 or 2 fiber optic cables 8~21
No. of Fibers/Tray	24
Max. Capacity of Fibers	96
Dimensions (mm)	190 (D) × 435 (H)

Structural Drawing
Standard Package

No.	Name	Unit	Quantity
1	Fiber Optic Splice Closure	set	1
2	Protective Sleeves	pieces	According to no. of fibers
3	Ties	piece	4×no. of trays+4
4	Insulation Tape	piece	1
5	Heat Shrinkable Fixing Sleeve	pieces	4
6	Ground Wire	piece	1
7	Emery Cloth	piece	1
8	Numbering Paper	piece	According to no. of fibers
9	Cable Splitter Slot	piece	1
10	Butterfly Style Wrench	piece	1
11	Aluminum Foil	piece	1

Optional Accessories

No.	Name	Unit	Quantity
1	Earthing Deriving Device	set	1
2	Valve	piece	1
3	Protection Tube	piece	1
4	Aerial Mounting (Customized)	set	1
5	Wall Mounting (Vertical)	set	1
6	Wall Mounting (Horizontal) (Customized)	set	1
7	Pole Mounting	set	1

Installation

	Application	Remark
Pole mounted		Another pole mounted method as below picture show, it's designed for the situation some dome type closure whose bottom without screw holes to install mounting bracket, or as customer request.
Wall Mounted (Vertical)
Aerial (MOQ: 200pcs)
Wall mounted (Horizontal, MOQ: 200pcs)		For some dome type closure whose bottom without screw holes to install mounting bracket, it only can horizontal wall mounted by this way.

Ordering Information
Example 1: SUN-FOSC-ZT701-24P-2T12
Dome type, heat shrink sealing; 24 fibers, 2 tray of 12 fibers/tray (12 slots/tray) included; 4 cable ports, max capacity: 48 fibers; IP68, material: PC, dimensions (mm): 190 (D) ×435 (H); With accessories for pole mounting
Example 2: SUN-FOSC-ZT701-48VW-4T12
Dome type, heat shrink sealing; 48 fibers, 4 trays of 12 fibers/tray (12 slots/tray) included; 4 cable ports, max capacity: 48 fibers; IP68, material: PC, dimensions (mm): 190 (D)×435 (H); With accessories for wall mounting (vertical) Related Products
