High Efficiency Flexible Label Laser Marking Die Cutting Machine for Automotive Parts, Engine, Car Body Labels, Engine Labels, Vin Code Labels

Product Description

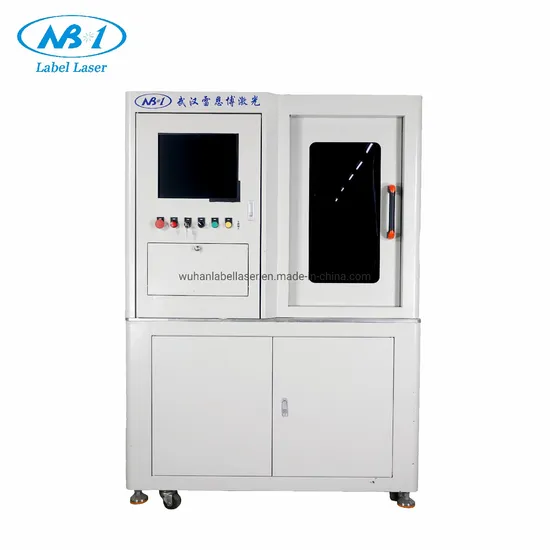

Flexible Label Laser Marking Machine For Automotive, Household Appliance Industry
The flexible label laser marking machine is widely used in automobile and household appliance industry. With abundant market experience and mature solutions, it is the optimal model of flexible label marking(3M, TESA labels).
Product features:
1. Professional, international, high-quality laser light;
2. Fast speed, high efficiency, maximize benefits;
3. High electro-optic conversion efficiency, long life, steady output power, high reliability, operated in 24 hours, maintenance-free within 100,000 hours;
4. Little-energy coupling loss, free consumable, minimize use-cost for customers.
It is widely used in car body labels, engine labels, VIN code labels, bar code labels, car key labels, fuel tank labels, airbag warning labels, tire pressure labels, air-conditioner labels, cooling system labels, motor-start control labels, car door labels, etc.
Technical Parameter:

Technical parameters
Laser Type	Fiber laser
Laser Power	20W 30W 50W 70W 100W
Model	LBGX-300-A, LBGX-300-B, LBGX-300-C, LBGX-300-D, LBGX-300-E/F, LBGX-300-G I/II/III, LBGX-310-B, LBGX-320
Laser Wavelength	1064nm
Laser Source	IPG, Raycus, Max, JPT
Marking Area	110*110mm,145*145mm,175mm*175mm, 230mm*230mm, 300mm*300mm
Marking Depth	0.01-0.2mm(depand on power, processed material and procedure)
Marking Speed	≤7000mm/s
Repeated Precision	±0.003mm
Marking Type	Figure, letter, charaters, automatic calender, count, serial no., ect. Barcode: code39/code128/PDF417, ect. QR code: DataMatrix, QR, ect. Graphic: multi-language charaters, CAD, DXF, BMP, JPEG, PLT, ect. Fixed point, straight line, broken line, circle, ellipse, elliptical arc, Bezier curve, ect. can also custom as request.
Marking State	Static, uniform motion, encoder
Marking Setting	Array direction: horizontal, vertical, curved, arc define coordinates. The arc shape can be set to define the starting angle, the ending angle and the radius. Linear transformation: rotatable character, can make the character X/Y mirror. Fill: define the fill mode and density
Minimum Character	0.3mm
Life-span of Fiber Laser Module	100,000hours
Beam Quality	M2 <1.1
Focus Spot Diameter	<0.01mm
Operation System and Software	Windows XP/2000 / Windows 7, 8, 10, JCZ EZCAD
Communication Interface	RS-232 serial port, TCP/IP network port, I/O port, ect.
Cooling Mode	Air cooling
Temperature of Operation Environment	5ºC~35ºC
Humidity of Operation Environment	30-85%( Condensation is not allowed)
Power Input	220V ( ±10%)/ 50HZ( ±5%) single phase
Power Requirement	≤500W
Communication Interface	USB
Machine Dimension	750*650*1440mm
Optional	Rotary Device, Moving Table, other customized Automation

Marked Samples:

Packing Detail:
Company Profile
Wuhan Label Laser Science & Technology Co.,Ltd. has been specialized in researching and manufacturing industrial laser marking equipments, fiber laser marking machine, laser welding machine, laser cleaning machine, processing equipments and supplying marking solutions for customers since 2006.
With over 18 years development,Label Laser has accumulated rich technical and design experience for industrial marking system, a large number of successful cases and well-known
customers in industries of machinery, automotive, iron and steel, petroleum, petrochemical, aviation, electronic products, tools, instrument, apparatus, etc.
Why choose us
A. More than 18 years laser marking, welding, cleaning, processing, manufacturing, research and design rich experience.

B. Professional technical group for customized industrial laser marking system.
C. More than 3000+marking solution cases accumulated in domestic and oversea markets.
D. 100% strict QC for both raw materials and finished products.
E. Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.
F. ISO,CE,SGS certified and complete aftersales service team.
FAQ
Q1: What type of the machine suitable for us?
Please tell us what material will be marked/engraved and the depth of marking/engraving, we will advise you the suitable model machines. If you can provide material picture, it is better. It is best if you send sample to us, we will mark on it. Sample with marking pictures and videos will be sent to you for checking. Or we can send the sample to you for quality and marking effect checking.

Q2: If we do not know how to use the machine,can you teach us?

Yes, we will. Our user manuals are together with goods shipment. We can also
operation video to you for study.
If you come to our factory in China, our technicians will offer you free training until you can use machine freely.

Our professional engineer can come to your country for trainning, installation, adjusting, ect.
Q3: How about the delivery time?
For standard machine, lead time is 10-15 days.
Regarding customized machine, we need to check with technicians.
Q4: How about the warranty time?

Our fiber laser marking machine warranty time is 12 months. Please send back the broken parts to us, we will send the new and replaced one to you. We suggest you take one extra set of spare parts together with your order which will be more convinient for your production line continurous running.
