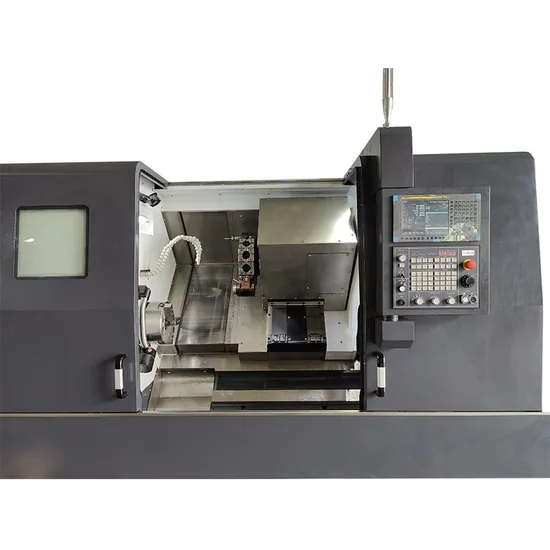

4500rpm A2-5 Precision CNC Spindle Slant Bed Lathe for Steel Structure

Product Description

Big Size High Accuracy Hard Metals, Soft Metals, Alloys Processing CNC Slant Bed Milling Machine
Product Description

Processing Capability			Unit	RA-750MY
Processing Capability	Maximum bed swivel diameter		mm	Φ580
	Maximum machining diameter		mm	Φ420
	Maximum machining diameter on the tool holder		mm	Φ370
	Maximum processing length		mm	710
	Maximum bar through-hole diameter		mm	Φ52
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-6
	Spindle through-hole diameter		mm	Φ65
	Maximum spindle speed		rpm	4000
	Hydraulic cylinders/chucks		Inch	8''
Axis feed	Axis travel	X-Axis	mm	260
		Z-Axis	mm	800
		Y-Axis	mm	±50
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
		Y-Axis	mm	10
	Rail Type		/	Linear track 45 (ball)
Turret	Number of tool positions		pcs	BMT40-12T with Y-axis
	OD tool holder specifications		mm	25x25
	I.D. Tool Holder Specifications		mm	Φ40
Tailstock	Hard rail as standard		/	Z-axis driven
	Maximum travel of tailstock rail		mm	700
	Tailstock Sleeve Taper		mm	Morse #5
	Tailstock Sleeve Diameter		mm	Φ80
	Tailstock sleeve travel		mm	80

• Experience the pinnacle of high-precision machining! Our machine tool is engineered to meet the most exacting machining precision standards, delivering exceptional fine cutting capabilities for internal and external surfaces, roundness, and coaxiality.
• Embrace versatility with our machine's ability to execute multiple processes simultaneously. This powerhouse handles a vast array of complex procedures, from radial and axial cutting to drilling, tapping, hobbing, scribing, and drawing with ease.
• Clamping and positioning the workpiece:
The gripper's fundamental mission is to secure the workpiece firmly, ensuring unwavering positional integrity throughout machining.
Thanks to precise positioning technology, the gripper maintains the exact relative position between the workpiece and the cutting tool, guaranteeing unparalleled machining accuracy.
• Solve special clamping problems:
Specialised fixtures are key for machining holes, shafts, slots, and threads in parts without bushings or wheels. They provide innovative solutions where conventional fixtures fall short.
Designed to address specific workpiece challenges, these specialised fixtures solve clamping issues unmanageable by standard fixtures.

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Detailed Photos
Control System

Anoher Advantages
• Achieve optimal processing conditions and enjoy a top-tier production environment with our advanced systems.
Our state-of-the-art imported machinery, including horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines, assure superior workpiece accuracy. This significantly enhances assembly precision and ensures long-lasting accuracy.
•Cutting-Edge Detection Methods
Positioning accuracy is scrupulously tested and finely tuned using cutting-edge laser technology, strictly following the German VDI3411 inspection specification with five exhaustive tests each.
Every machine tool is subjected to rigorous processing tests prior to leaving the factory, ensuring they not only meet but consistently exceed actual processing accuracy requirements.
Product sample
• This CNC machine center effortlessly integrates milling, drilling, and tapping functionalities to streamline your production processes.
• Expertly capable of CNC machining a diverse range of metal profiles such as aluminum, steel, copper, and various non-metal materials.
• Perfect for industries ranging from 3C electronics and rail transportation to aerospace and linear module guide rails.
Packaging & Shipping
•Highly Protective
•Structural Stability
•Environmentally Friendly and Recyclable
Professional Team
FAQ
1. What are the Payment Terms?
A: T/T, 40% initial payment when ordering, 60% balance payment before shipment.
2. What are your trade terms?
A: FOB, CFR, and CIF are all acceptable.
3. When is the delivery time?
A: For standard machines, we can prepare the machine within 30 days. Special machines may take longer. You can place your order based on the delivery timeline we provide.
4. What is your minimum order quantity and warranty?
A: Our MOQ is one set, and we offer a one-year warranty.
5. How are the machines packaged?
A: The machines are standardly packed in wooden cases.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the best model for you. Alternatively, you can select the exact model yourself.
You can also send us the product drawings, and we will choose the most suitable machines for you.
