High Quality 67 Meter Remote Control Concrete Pump Truck

Product Description

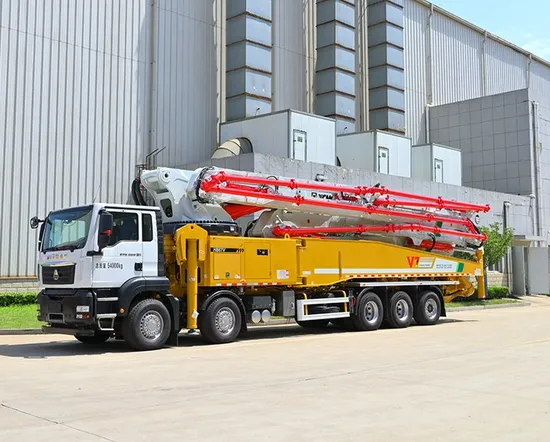

V7 series truck mounted concrete pump is a new generation equipment which is developed by XC and SCHWING Germany technology.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.

* Large diameter (260 mm) Φ, large displacement (170 / hour) pumping systems.
* Material absorption can reach more than 85%.
* Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
Product Paramenters

Description	Unit		Parameter value
Outline dimension	mm		15780×2500×4000
Overall weight	kg		54000
Chassis	Max. speed	km/h	85
	Max. grade-ability	%	51.4
	Wheelbase	mm	2020 + 5180 + 1350 + 1450
Engine	Model		OM501LA·V6
	Max. power	kW	335
	Max. torque	N·m/(r/min)	2200/1080
	Displacement	L	11.946
	Emission standard		Eruo V
Pumping system	Theoretical output	m³/h	170
	Concrete pumping pressure	MPa	8
	Theoretical pumping times	Time/min	21~23
	Delivery cylinder diameter ×stroke	mm	φ260×2200
	Max. diameter of pumping concrete	mm	≤40
	Filling height	mm	1570
	Concrete slump range	cm	8~23
Placing boom	Reach height	m	66.1
	Reach depth	m	48.6
	Slewingradius	m	60.9
	Slewing angle	°	±270
	Unfolding angle of the 1st section	°	90
	Unfolding angle of the 2nd section	°	180
	Unfolding angle of the 3rd section	°	180
	Unfolding angle of the 4th section	°	230
	Unfolding angle of the 5th section	°	210
	Unfolding angle of the 6th section	°	90
	Unfolding angle of the 7th section	°	180
Stabilizer span	Longitudinal span of stabilizer	mm	13700
	Transverse span of front stabilizer	mm	13000
	Transverse span of rear stabilizer	mm	15300
Others	Lubrication method		Automatic lubrication
	Control method		Manual/remote control
	Volume of water box	L	1000
