Square Deep Sea Fish Farming Net Floating Cages

Product Description

square deep sea fish farming net floating cages
Comapny Introduction:
We are the biggest manufacturer of HDPE fish cages in China, cooperate with the East China Sea Fisheries Research Institute, as the Chinese Academy of Sciences anti-wave cage manufacturing industry base.
Also as Sun Yat-sen Mariner equipment manufacturing industry base, the first base, we draft the Chinese national standard for HDPE fish cages..
Our fish cages can be in the sea or lake while lifetime is more than 25 years.
Now more and more people use our cage to breed fish for better fish quality.
Product Description
Features of Nanfengwang Fish Cage
Strong ability of anti-wind,anti-current and anti-wave. It's made of new material HDPE pipe,making the cage have a long life. The cage capacity is large and makes a high survival rate.
1. Wide range of applications, it can be set in the depth of water from -6m to 50m.
2. Strong ability of wind resistance, can defend against the typhoon,the maximum is 12 grade.Strong ability of wave resistance to 7m,strong ability of current resistance to 1.2m/s.
3. Aquaculture capacity,the living space and growing space are large.
4. The cage has a long life, the cage frame can be used over 15 years.
5. The net can be replaced easily.
6. Material is a marine special HDPE pipe,which is high strength,high toughness,anti-oxidant and anti-aging.
Deep-sea offshore cages aquaculture is a high technology for marine fish culture, has a strong ability anti-wave, anti-current and anti-wind, can be use in semi-open sea fish farming. Deep-sea off-shore cages aquaculture with a high level of intensive ,high culture density, more abundant food resource for fish grow faster, better meat quality ,nature quality. At the same time, the sea water has a certain velocity ,fish dejection will be taken away very soon, while compared with the tradition cages, offshore cages aquaculture reduce the fish diseases. With so many advantages, offshore cages aquaculture produce high quality products, making significant economic benefits.
Product Parameters

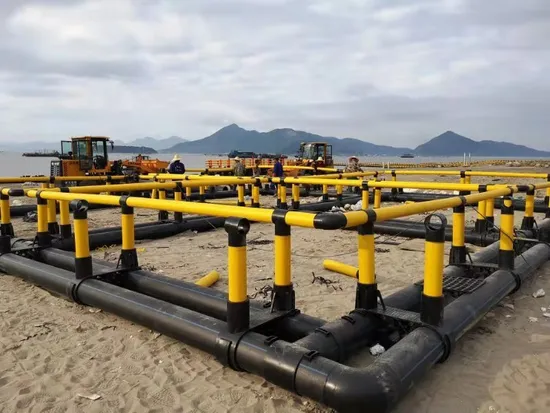

Cage Components
1. Floating Pipe: The Key part of the pipe, two of a complete Fish cage, inside can be filled with foam which strengthen the Buoyancy(See 7).2. Handrail Pipe: higher than the floating pipe and water level, can be held by fisherman while feeding or fishing.3. Bracket: usually every 2 meter of 1 pc, major part of supporting the fish cage structure, including L shape Bracket, triangle bracket, one-hole bracket and two-holes bracket etc., each has deferent features and advantages.4. Walkway Decking: equipped for more convenient for feeding or fishing, can also be replaced by plank, not a must of a fish cage.5. Pipe for the Walkway Decking: there are two small holes both in the bracket and the walkway decking, while two small pipes can combine the bracket and walkway decking to make it stronger.6. Secondary Pipe: make the fish cage more stable. 7. Foam inside the floating pipe: usually only the inside floating pipe will use the foam to add Buoyancy.8. Pin: combine the handrail pipe and bracket, also the bracket and floating pipe.9. Stopper: being used at both side of bracket which give a swing space for the bracket. as storm and ocean current, a little space for bracket can bring more elasticity and longer life span for the fish cage.10. More parts of a fish cage:Net, Growing net, Cover net and Anti-bird net.Pontoon, Foam.Mooring, rope and anchor etc.Welding mahine.…
Our service
Pre-Sales Service
* OEM and ODM available. According to your location, water area, fish species etc., we can help design fish cage for u.* Highly welcomed visiting our factory in Dongguan Guangdong China.* Visiting our project in China.
After-Sales Service
* Engineers can be sent to your distinct for installing Fish Cage, training how to use the machine. * After sale services are available, you can tell us what in need, we try best to support you..

Customer Photos
Certifications
Why Choose us?
*Abundant Experience, accomplished many projects from China to Global, including Saudi Arabia and Egypt, while those are very famous program among world. *Flexible abt the size of the fish cage, no matter how small or big, we can produce cage at best quality, and we are the only
company who has the ability for huge cages in China, and one of the biggest HDPE fich cage manufacturer in Asia. *Best Quality at competitive price, lots of thumb up after sale. *Long Production line, from pipe to all accessories, from mold design to the production and procession, we can all be self-sufficient, which cut down the cost, and bring much convenience for clients. FAQ
Q: What is your Raw material ?A: Only 100% virgin raw HDPE material are used.Q: What is your MOQ?A: 1 fish cage available. Q: what is your delivery time?A: 2 weeks for producing, u can pick up from our factory, or we help arrange the shipping, all as your request.Q: Can you help Design and put my logo on products?A: Yes, we have professional design service team, also logo can be put.
