Battery Cell Vacuum Coating Machine for Electrode Film coating Research

Product Description

Product Description

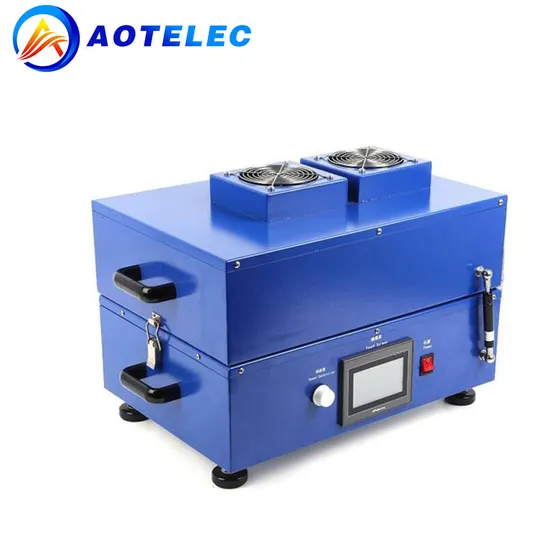

Battery cell lab equipment ( BATTERY ELECTRODE COATER WITH DRYER) :
It's a touch-screen film coater which widely used in all kinds of high- temperature film coating research,like ceramic films, crystal films, battery material films, and special namo-films, and can adapt to the technology development of high temperature film coating in future.
Features :
1. Touch-screen ,easy operation .
2. Temperature controlled heating system is digital displayed, max working temperature is 200ºC.
3. Timer is digital displayed; the heating time can be set freely.
4. Coating speed can be regulated at a range of 0~200mm/s.
5. Vacuum aluminum plate used to place and take off the substrate quickly.
6. Stroke can be regulated by touch screen at a range of 10~250mm.
7. Coating thickness can be regulated, the accuracy is 0.01mm.
8. Small dimension saves space.
9. Nice appearance, solid geometry design makes well- formed shape.
Application :
Battery lab
Battery research
Lithium ion battery lab
Material research
Trial-production
specification

Item Name	Automatic Film Coating Machine with Cover Heater
Model	AOT-FCM-100
Max Stroke	250mm
Vacuum plate	Equipped with vacuum aluminum plate
Coating Speed	0~100mm/s
Dimension of vacuum plate	L365mm×W200mm×H30mm
Regulating range of scrapper	0.01~3.5mm
Film width	100mm
Heating temperature	Room temperature ~ 200ºC Digital displayed thermostat, the accuracy is±1ºC
Power supply	220V/50Hz
Weight	45KG
Dimension	L800mm×W310mm×H330mm
Standard Configurations	*applicator *no-oil vacuum pump *horizontal rod *feeding box

Company Profile
Xiamen AOT Battery Equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Certifications
The products produced by the company have obtained anumber of certificates
Cooperative Brand
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.

Packaging
FAQ
Q1:How long do you need to prepare my goods?
A:3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A:Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
Q5:What's the warranty for the items?
A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge
