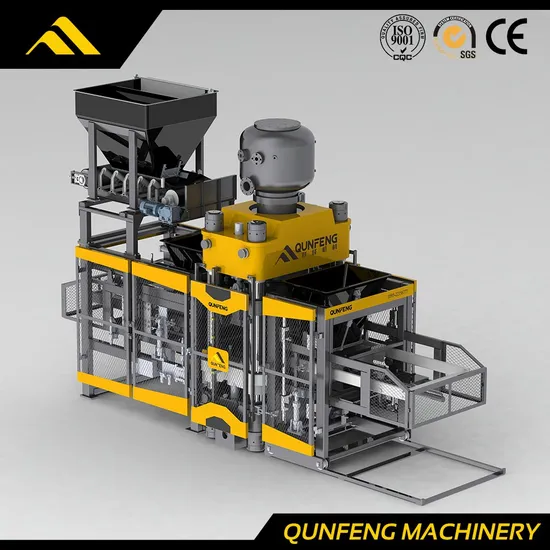

QP800 Automatic hydraulic pressing machine
Adopting servo electro-hydraulic control system, it has features of energy conservation, silent operation and high efficiency.The feeding efficiency is higher by adopting the concealed high frequency micro-vibration and variable frequency feeding system.It can produce high-strength paving bricks with topping color, slope-protect bricks, terrazzo tiles, clay bricks, etc.
Adopting servo electro-hydraulic control system, it has features of energy conservation, silent operation and high efficiency.The feeding efficiency is higher by adopting the concealed high frequency micro-vibration and variable frequency feeding system.It can produce high-strength paving bricks with topping color, slope-protect bricks, terrazzo tiles, clay bricks, etc.
Main technical features
1,Energy saving: adopt hybrid servo motor that's 30% more energy-efficient than regular one
2,Accurate material feeding:The feeding cart is able to adjust material metage according to different size of bricks .
3,Low noise, material feeding fast and well-proportioned:adopt servo motor on feeding cart and vibration table light shock,system to fasten the,feeding speed and reduce noise.

Maximum pressure	8000KN
Dimension(LxWxH)	6430×2250×4760mm
Rated hydraulic pressure	31.5MPa
Static pressing	adopt feeding vibrating, pressing formation
Adaptable block height	45~150mm
pallet size	1100x950mm
cycle time	18-26 s/pall
main machine power	96.9 kW
output	holland brick(200×100×60mm)	28pieces
	solid brick(240×53×115mm)	39pieces
