40 Series T Slot Structure Industrial Frame Aluminium Profile 40 X 40 Tslot 40 X 40 Aluminum Profile

Product Description

T-slot aluminum profilePG40 T-slot aluminum profile is recommended for applications with high loads, such as heavy work stations, fixtures, machine supporting structures, transporting shuttles etc. The optimized load-carrying capacity of 40 dimension offers a cost effective and stable solution for design engineers. Areas of the basic frame designed which are subject to less load can be constructed from light dimensions for optimized weight and cost.

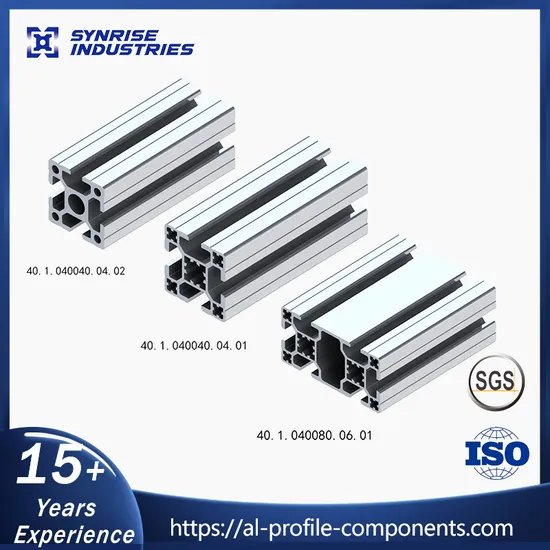

2 series modular dimensions 40 in stock:
-Strut profiles slot 8 with decorative molding on surface
-Strut profiles slot 10 with satin surface treatment. This series is designed with 10.2mm slots for applications with extremely strong connections.

Series	Modular Assembly System
Profile Group	PG 40
Material	6063-T5
Surface Treatment	Anodized (none for section)
Effective Length	6000mm
	A long frame (~ 6000 mm) can also be customized.
Color	Silver/ Customized

Product Introduction

T Slot	Cross Section	Core Hole	Slot Width	Slot Depth	Wall Thickness	Profile Group
	(mm)	(Ø)	(mm)	(mm)	(mm)
		12	8.2	11.5	3	PG 40

Dimensions of PG 40 series

Description	Moment of Inertia lx(cm4)	Moment of Inertia ly(cm4)	Moment of Resistance Wx(cm3)	Moment of Resistance Wy(cm3)	Mass (kg/m)	Part No.
40x40, 2 slots, Type A	7.20	7.10	2.70	2.40	1.30	40.1.040040.02.01
40x40, 2 slots, Type B	7.40	7.00	3.70	3.50	1.30	40.1.040040.02.02
40x40, 2 slots, R90	7.50	7.50	3.80	3.80	1.45	40.1.040040.02.90
40x40, 4 slots	8.70	8.70	4.40	4.40	1.45	40.1.040040.04.01
40x40, 4 slots, Heavy	10.40	10.40	5.20	5.20	1.85	40.1.040040.04.02
40x60, 4 slots	12.80	25.90	6.40	8.60	2.15	40.1.040060.04.01
40x80, 6 slots	16.00	58.00	8.00	14.50	2.50	40.1.040080.06.01
40x80, 6 slots, Heavy	18.20	71.50	9.10	17.90	3.10	40.1.040080.06.02
40x120, 8 slots, Heavy	26.00	219.00	13.00	36.50	4.50	40.1.040120.08.02
40x160, 10 slots, Heavy	34.00	488.70	17.00	61.10	5.55	40.1.040160.10.02
80x80, 8 slots	100.60	100.60	25.20	25.20	3.90	40.1.080080.08.01
80x80, 8 slots, Heavy	126.30	126.30	31.60	31.60	5.10	40.1.080080.08.02

ApplicationFlexibility and easy operation of assembly technology makes it possible for the factories to adapt to the rapidly changing environment and requirement.
Based on these features, We offers a comprehensive modular assembly system consist of aluminum profiles, connectors, fasteners and accessories.
With this integrated system, your requirements for upgrading production processes could be easily and fully met - from a simply assembled frame, material shuttle and storage rack through to machine guarding, protective devices, workbench and any imaginable profile applications.
