Cow Dung Collector Disposal for Cow Farm

Product Description

Product Description

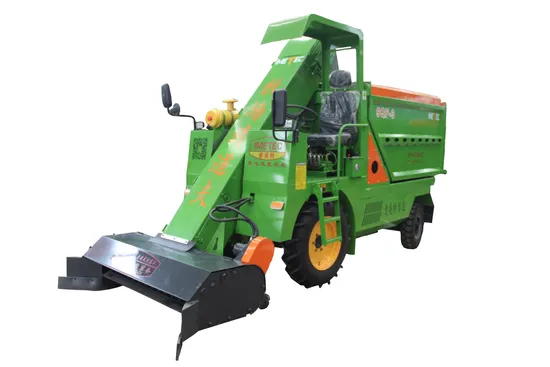

This 3CBM cow dung cleaning machine is a pasture manure cleaning equipment specially designed for pasture manure cleaning. After continuous research and development and experiments, combined with actual pasture operation and use, manure cleaning vehicle is suitable for both dry and thin manure on pastures. The 3CBM manure cleaning truck is driven by a diesel engine and is mainly used for livestock manure collecting in farms such as cowsheds and pig farms. This 3CBM manure cleaning truck is mainly designed for small and narrow manure channels, width is about 1.7 meters and height can be tailor made as request.
There are two types: two-wheel drive and four-wheel drive. Two wheel is easy to turn around and four wheel one is suitable for complicated muddy roads or passages.
Product Parameters
1. This manure collector can hold about 2.5cbm manure. The manure cleaning truck integrates the manure collection and transportation together, and directly transports the collected manure to the sewage discharge point without the need to add pipelines and transportation vehicles.
2. 3CBM collector is suitable for 1-300cows farm or small passages and other cattle farm manure cleaning trucks with different parameters according to different planning of ranches.
3. The manure cleaning truck system does not need to make up for the rated new water, which is convenient for later manure treatment and environmental protection.
4. Since the manure cleaning truck does not involve pipeline transportation during the manure transportation process, there is no pipeline blockage problem, and the failure rate of the entire manure system is reduced.
Detailed Photos
Product Parameters:

Item	3CBM--VDT 2WD	3CBM-VDT 4WD	3CBM-Manual transmission
Model	9QF-3	9QF-3	9QF-3
Size L*W*H(cm)	520*220*240	520*220*240	520*220*240
Driving way	Front drive, rear driving	4WD	Front drive, rear driving
Material	4mm thickness Q355B Steel	4mm thickness Q355B Steel	4mm thickness Q355B Steel
Engine	Yunnei 490	Yunnei 490	Yunnei 490
Power	42kw 57hp	42kw 57hp	42kw 57hp
Walking Way	Hydraulic controlled	Hydraulic controlled	Hydraulic controlled
Collecting System	Auger and Scraper combined and chain transmission lifting up	Auger and Scraper combined and chain transmission lifting up	Auger and Scraper combined and chain transmission lifting up
Discharge System	Hydraulic jacks, automatic discharge without physical contact	Hydraulic jacks, automatic discharge without physical contact	Hydraulic jacks, automatic discharge without physical contact
Tyre Number	4pieces	4pieces	4pieces
Chassis	Self Made	Self Made	Self Made
Capacity	3CBM	3CBM	3CBM
Applicable Farm	Cow/Cattle	Cow/Cattle	Cow/Cattle
Power	Diesel Engine	Diesel Engine	Diesel Engine
Function	Collector Manure/Dung	Collector Manure/Dung	Collector Manure/Dung

Processing Flowchart
