Monthly Deals Wanlong Water Jet Granite Multi Cutter Machinery Stone Granite Cutting Machine or Stone Block Wet Cutting

Monthly Deals Wanlong Water Jet Granite Multi Cutter Machinery Stone Granite Cutting Machine or Stone Block Wet Cutting

US$20,000.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LMQ-2200 2500 3000
Usage
Ceramics, Glass, Fire Brick, Red Brick, Cement Brick, Concrete Curb, Granite, Marble, Medium Granite Block Cutting Machine
Application
Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry, Stone Cutting Machine
Source Voltage
220V/380V/415V, Available Upon Request
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
API, CCC, SONCAP, GOST, ISO, CE, Bridge Stone Block Cutting Machine
Product Name
Gantry Cutting Machine
Main Motor Power
45/55/65kw
After Sales Service Provide
Engineer Available Service Machinery Overseas
Max. Processing Size
3400X2000X1350mm
Water Consumption
10m3/H
Approximate Weight
9-12 Tons
Quality
European Standard
Transport Package
Seaworthy Wooden Case for Auto Cutting Machine
Specification
7000x4700x6000mm
Trademark
Wanlong
Origin
Fujian, China
HS Code
84641000
Production Capacity
5000sets Per Year

Product Description

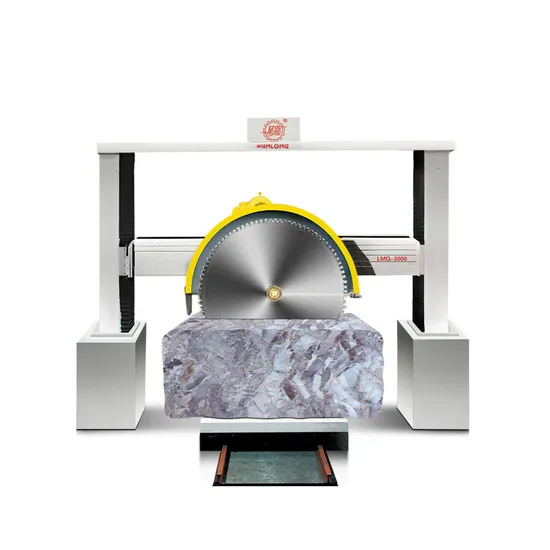

Wanlong Water Jet Granite Multi Cutter Machinery Stone Granite Cutting Machine or Stone Block Wet Cutting
Production Description:
1.Gantry cutting machine consists of solid columns and wide-span crossbeam.
2.It is max. blade can be diameter 2500mm. Also it is suitable for putting blade dia.2200,to work with proper speed.
3.Fully controlled by microcomputer, it can work automatically by programmed. Or work manual to meet the flexibility.
4.Heavy duty casting Iron, strong.
5.Electronic component mostly are Japanese brand for stable & accuracy assurance.
6.It work with motorized table for feeding the block.
Technicial parameter:
Model LMQ-2200 LMQ-2500 LMQ-3000
Max. blade diameter mm 2200 2500 3000
Max. NO. of blades pc 3 1 1
Recommended balde combination mm Φ2200,Φ1600,Φ940 Φ2500 Φ3000
Recommended thickness of blade mm 6.5 6.5 8
Linear speed m/s 37.75 36.75 36.75
Feeding speed mm/min 0-5350mm/min 0-5350mm/min 0-5350mm/min
Vertical feeding speed mm/min 590 590 590
Trolley feeding speed mm/min 200 200 200
Main Motor power KW 30 30 37
Table dimensions( L*W) mm 2000*2000 2000*2000 2000*2000
Max. cutting size(L*W*H) mm 3000*2000*950 3000*2000*1100 3400*2000*1350
Overall dimensions(L*W*H) mm 6600*6000*4800 6600*6000*4800 7000*4700*6000
Water consumption m3/h 6 6 10
Approximate weight kg 9000 9000 12000
