Plastic Recycling Machine for PE/PP/PA/PVC/ABS/PS/PC/Pet Washing and Pelletizing Granulating Recycling Line

Product Description

Plastic recycling washing system:plastic recycling washing system is one of the main recycling series of Kitech machinery.This system has smart modular design aiming at rigid plastic and bottles ,Such as Pe ,Ld ,Hd ,Ldpe ,Hdpe ,PC,Ps,Abs kinds of plastic soft recycling .
different module combinations design from kitech according to your reqirements and materials's condition.In range of different raw materials,kitech 300-10000Kg .Economy and high-level prduction lines with different machine configurations.
Soft plastic (films /woven bags /fiber /rope )washing line.

Type	RPW500	RPW100	RPW2000	RPW3000
Capacity(kg/h)	400-500	800-1000	1600-2000	2500-300
Dimension(L*W*H)	35*10*5	50*12*6	70*12*6	120*20*6
Steam consumption(kg/h)	0-150	0-200	0-300	0-600
Chemical consumption(kg/h)	0-3	0-5	0-10	0-20
Energy consumption(kwh)	175	198	306	550
instalation power(kwh)	210	330	498	810
man power (person /shift)	3-5	3-8	3-10	3-12

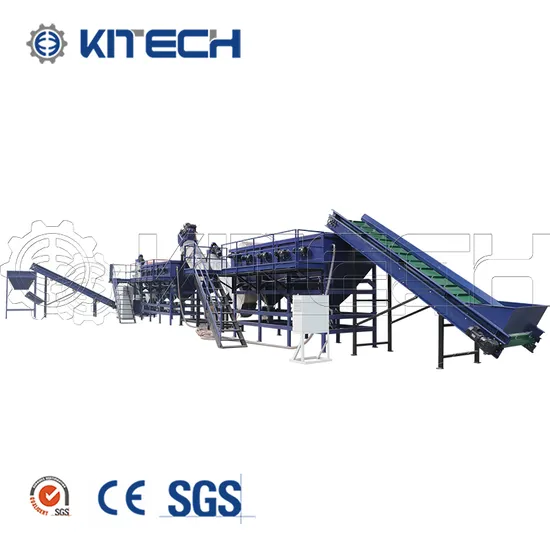

Belt conveyor-crusher-shredder-screw conveyor-washing tank-friction washer-Centrifugal dryer-Squeezing dryer-Hot air pipe dryer-Storage buffer-Electrical cabinet without PLC controller
Belt conveyor:
Heavy duty type, adopt gear motor;
Side walls to avoid spilling of feeding material;
Crusher:
Optimally designed blades are sharp and powerful;
Enclosed cutting chamber to prevent materials flying out;
Knives are externally adjustable;
Shredder
Special designed hopper to avoid material flying out; 4 way rotating knives with special knife holders;
Extremely robust pedestal bearing housings;
External mounted of bearing pedestal designs;
screw conveyor:
Screw adopt wear resistant stainless steel;
Triple sealing, External bearing design;
washing tank:
Double station discharge valve at bottom;
All Thumb-wheel speed variable by inverter control;
Heavy duty washing, separation of different specific densities material;
friction washer:
Rotor and blades adopt wear resistant steel;
Rotor with dynamic balance treatment. Accuracy: ±3-5g;
Active material washing to protect downstream units;
Centrifugal dryer:
Rotor with dynamic balance treatment. Accuracy: ±3-5g;
Mild circular screen in polygon 4 piece version;
Washer/dryer housing built in stainless steel welded construction;
Squeezing dryer:
Heavy built shaft and balde;
Double hydraulic press units;
Motorized Screw Squeezing;
Hot air pipe dryer:
Pipeline built in stainless steel welded construction;
All part touch raw materials are stainless steel;
Hot air drying system;
Storage buffer:
Direct connect with pelletizing process;
Large Storage capacity;
Electrical cabinet
International brand Low voltage components ;
Double circuit safety relay;
Intelligent and modular PLC controlling system
