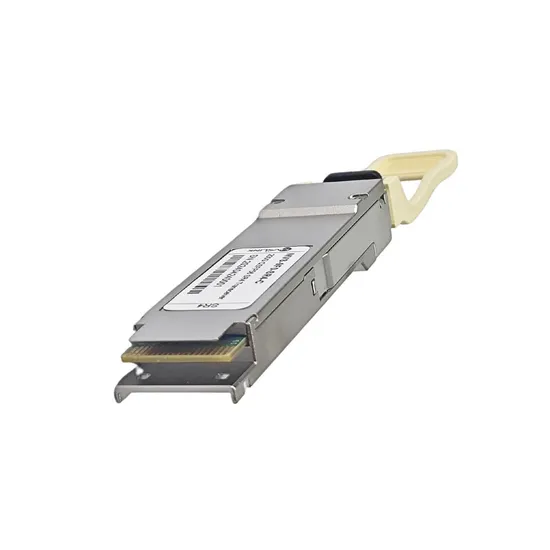

Generic Compatible 200gbase-Sr4 Qsfp56 200gbase-Sr4 Qsfp56 Mmf 850nm 100m Ddm Optical Transceiver

Product Description

Product Highlights* Compatibility -- for Arista Networks QSFP-200G-SR4, Cisco QSFP-200G-SR4-S, and other Open Switches.
* MVSLINK QSFP56 Optical Transceiver is an InfiniBand 200Gb/s Single-port QSFP56, SR4 multimode parallel transceiver using a single, 4-channel MPO-12/UPC optical connector using OM4 multimode fiber (MMF) with a wavelength of 850nm up to 100 meters.
* Easy to use -- 200G-SR4 transceiver with Advanced DDM Function to monitor real-time parameter and state on fiber links; It supports hot-pluggable, plug and play; IEEE 802.3bs, QSFP56 MSA, SFF-8665, CMIS Rev 4.0 compliant.
* NVIDIA -- Compatible with NVIDIA/Mellanox InfiniBand MMA1T00-HS devices, customizable for other brand compatibility.
* High Quality -- All of products are manufactured under strict quality control system, every module has been tested one by one on different switches before shipping, to ensure compatibility with different brand of switch.
* After-sales Service -- 30 days Free-Returned, 3 years Free Warranty and lifetime technology support, please contact us, any product quality and compatibility issues.
Product Description Generic Compatible 200GBASE-SR4 QSFP56 200gbase-Sr4 Qsfp56 Mmf 850nm 100m Ddm Transceiver Module
The Generic QSFP-200G-SR4 Compatible QSFP56 Optical Transceiver Module is designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fiber (MMF) with a wavelength of 850nm up to 100 meters.
MVSLINK 200G QSFP56 SR4 transceiver comes with an Industry Leading Lifetime Warranty, surpassing the OEM warranty for the same product. Every QSFP56 SR4 transceiver is environmentally tested in its specific port/platform, which includes compliance verification for distance, wavelength, traffic density and light.
MVSLINK's product solutions provide power-efficient connectivity enabling higher port bandwidth, density, and configurability at a low cost and reduced power requirement in the data centers.
Product Details

Compatible	Cisco, Juniper, Arista, Brocade, Mellanox, HW, Generic, HPE Aruba, Netgear, TP-Link, Linksys, Broadcom, etc.
Module	Mvs-9f0-Sr4-C	Vendor Name	Mvslink
Form Factor	Qsfp56	Max Data Rate	200Gbps
Wavelength	850nm	Max Cable Distance	70m@OM3/100m@OM4
Connector	MTP/MPO-12 Upc	Media	MMF
Transmitter Type	VCSEL 850nm	Receiver Type	PIN
TX Power	-3~3dBm	Receiver Sensitivity	-6.5dBm
Inbuilt FEC	No	Receiver Overload	5dbm
Power Consumption	≤5W	Extinction Ratio	3dB
DDM/DOM	Supported	Commercial Temperature Range	0 to 70°C (32 to 158°F)
Protocols	IEEE 802.3bs, QSFP56 MSA, SFF-8665, CMIS Rev 4.0	Warranty	3 Years
CDR (Clock and Data Recovery)	TX & RX Built-in CDR	Packaging Technology	BOX Packaging

Quality AssuranceCompatibility Testing
Our R&D team consists of experts with years of experience in the optical communications industry. Our manufacturers are top-class in the industry and support a product OEM. Installing a third-party transceiver does not affect your network equipment warranty.100% Third Party Compatible
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations. Prior to shipment, we meticulously code our optical modules and DAC/AOC cables, followed by rigorous testing on the corresponding switches to guarantee 100% compatibility with your system.
MVSLINK follows the principle of quality first. We strictly control the quality of our products and comply with certification and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, UKCA, and so on. To get the detailed certification, please contact us. Connectivity Solutions
Product Parameters
Production Workshop
Custom Coding & Manufacturing for Your Optical Modules.Expert optical module makers offering OEM branding & customized coding. Stand out with our reliable, personalized solutions!
Packaging & Shipping
Product Features
* Data rate up to 212.5Gbps (4x PAM4 53Gbps);
* Reach up to 70m on MMF(OM3);
* Reach up to 100m on MMF(OM4);
* 850nm VCSEL laser and PIN receiver;
* High speed I/O electrical interface (200GAUI-4);
* I2C interface with integrated Digital Diagnostic monitoring;
* Single MPO-12 receptacle;
* Single +3.3V power supply;
* Power consumption <5 W;
* Operating case temperature: 0 to +70°C;
* Compliant to RoHS-10
Applications
* 200GBASE-SR4
Company Profile About Suzhou Weimei Electronic Technology Co., Ltd
Mvslink was established in 2012, headquartered in Suzhou, with research and development laboratories in Shanghai, a production factory in Suzhou, and a sales office in South Korea.
Focus on the rapidly growing markets of cloud computing data centers, telecommunications, and 5G wireless, as well as consumer AOC products. Committed to building a semiconductor optoelectronic integration platform and aiming to become a leading brand in the global optoelectronics field.
FAQQ: Can the QSFP-SR4-200G be compatible with IB HDR Switches MQM8790-HS2F or MQM8700-HS2F?
A: Hello, the QSFP-SR4-200G is compatible with both the IB HDR Switches MQM8790-HS2F and the MQM8700-HS2F.
Q: Compared with NRZ technology, does PAM4 have any advantages?
A: Compared with NRZ, PAM4 has the advantages including: doubling the density of data, achieving higher resolution using the same oversampling rate, and having the same total noise power spread over a wider frequency so that the noise power in bandwidth goes down. PAM4 clearly offers power, footprint, and cost advantages because of the reduced number of transceivers compared to an identical NRZ solution (1/2 the number of TX/RX).
