Full Automatic Paper Cone Flocking Machine

Product Description

Still Heachache, Look at here As the rising cost for raw paper and labor and energy, More and more paper cone producers feel very difficult to survive nowadays. Now here come our high speed paper cone making line, the speed can reach 90-100pcs/min, Paper waste is only 8%, only 1 labor is needed,at least will save 10%-20% cost compared with common paper cone making line Product Overview Automatic paper cone flockign machine, speed 90-100pcs/min, paper waste is only 8%, only 1 labor is enough, Power is 50KW, all the electric elements is imported famous brand, can get 120000-140000pcs/24 hrs paper cone, most suitable paper cone size is 4'20 and 5'57 FEATURES AT A GLANCE PLC control
Twin head structure 2 sides robot arms Low paper waste high speed 90-100pcs/min Less labor Less energy consumption PRODUCT SPECIFICATIONS

Model	GLTS2019-T1
Main equipment	Automatic winding 1 set ,dryer 1 set ,finishing machine 2 sets
Capacity (pcs/min )	90-100pcs/min
Main power	Dryer driven by electricity 62.42kw (winding 24.73kw ,noshing 14.24kw ,electrical dryer 23.45kw) Dryer driven by coal 51.3kw (winding 24.73kw ,noshing 14.24kw ,coal dryer 12.33kw)
Control system	Automatic(PLC)
Catch paper	Left side CNC slider ,right side robot or both side robot arms
cutting paper	Pneumatic control : cutting angle blade ,inclined blade ,customized arc cutter ,big small cutter
printing	Double color printing ,netting twine tube ,mechanical convey or servo control
Width of paper	1160 1170mm ( as your paper cone size )
Hang systerm	Automatic deviation correction and constant tension control
dryer	Automatic dry ( by electricity or coal or wood, gas )
Finishing	Velvet ,curling .cutting ,counting ( accept customzied)
electric appliance	main brand (CHINT )
Pneumatic	Airtac
Machine Dimension	length: 14.5m width: 8m
labor needed	1-2 workers/shift
Air compressor	3.6 cubic air output

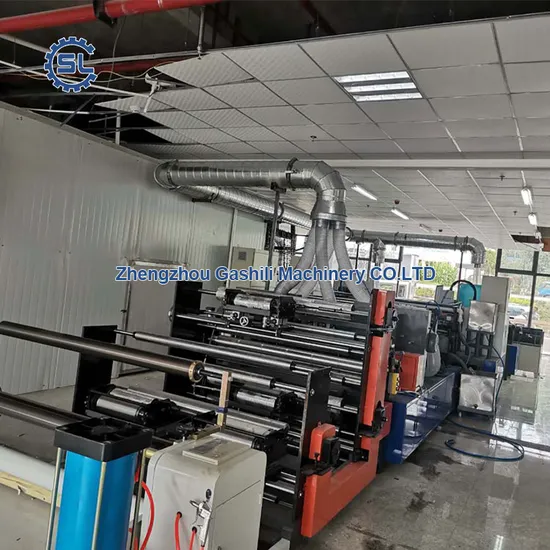

PRODUCT CONFIGURATION twin head paper cone rolling machine drying machine
2 sets of finishing machine Our Advantages: the raw paper hanging machine have correction function and constant tension, with these 2 functions, the big roll of raw paper will be moving and adjusted automatically, very labor saving. Two-color laser ceramic anilox printing, the use life is about 8 times than common printing 2 sets of paper cone finishing machines, will give 2 colors of paper cone at the same time. Advanced Robot arms will provide 4 joints side moving, the catching paper will be more flexible.
