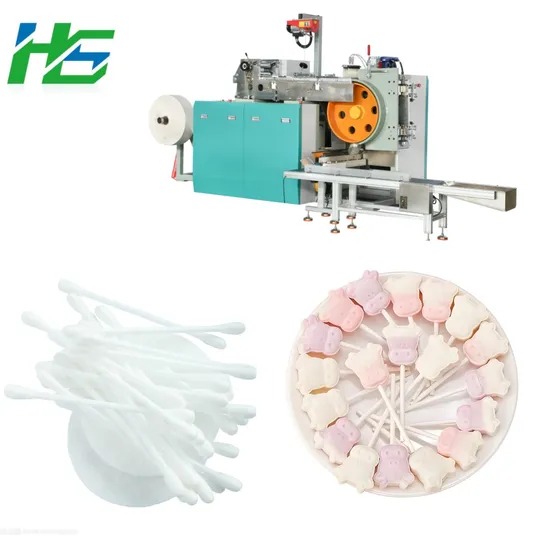

Lollipop Pencil Core Cotton Swab Balloon Paper Stick Making Cutting Forming Machine

Product Description

Product Description
HS-ZBJ Machine working method is cutting paper roll material according to the length, and roll up a little from the beginning until the entire paper segment is rolled, in winding process, paper stick two sides ends keep flush, so it is also called the straight winding machine.

Our Advantages
1. Because machine is only coated one layer of glue on the paper stick outer circle, the hardness of the paper stick will be softer than paper stick of inclined winder machine made. So our machine paper sticks are used in cotton swab, perfume sticks, cakes, lollipops, shoe support and other products or industries.
2. Paper stick machine usually produce more than 3.0mm diameter or bigger sticks. (the paper stick above 3.0mm is a bit soft);
3. Adopt PLC touch screen interface, intuitive display and easy operation. With multiple sets of memorizing devices, there is no need to reset production when changing products.
4. The parts are welded, finished and specially treated to ensure good quality. The machine has stable performance and long service life.
5. The diameter of the paper rod can be changed through servo control.

Main Technology Parameter

Paper Rod Diameter	2.5-6mm		Paper Requirements	single glossy paper
Paper Stick Length	50-260mm (length can be customized)		Power Supply	380V 50HZ
Productivity	400-1000pcs/min		Total Power	4.5KW
Paper Thickness	60-100g/m²		Dimensions	3200*900*2200mm
Applicable Glue	Polyvinyl alcohol glue, starch glue		Weight	2000KG
Machine speed according to stick diameter, diameter is bigger as speed slower.

Product Sample
Machine Details:
Electrical & Pneumatic Parts List:

1	Touch Panel	Siemens:Smart700IE V3
2	PLC	Siemens:Smart SR20
3	Inverter	Siemens:v20,3Kw
4	Circuit Breaker	Eaton:E6-32/3/C
5	Contactor	Eaton:XTCG018C00DT
6	Relay	Phoenix:RXM2LB2BD
7	Switching Power Source	MEAN WELL:A22-STOP/K10
8	Proximity Switch	Bedook:PRE12-2DN
