Asbestos Free Woven Brass Resined Brake Lining Used on Winch and Windlass, Hoist, Crane, Winder, Drilling and Workover Rigs, Agricultural Vehicle, Elevator
| Negotiable | 1 Roll (MOQ) |
Basic Info.
Model NO.
TL2003
Speed
Slow
Carrying Capacity
Weight Level
Tonnage
20T
Reel Number
2
Running Mode
Brake
Feature
Insulating, Winch Windlass
Certification
ISO 9001, Gl
Standard
National Standards
Application
Anchor Winch,Windlass, Mooring Winch
Resistance of Wear
High
Transport Package
Pallet
Specification
100x10x10, 120x15X10, 300X10X10, customized
Trademark
TALFRI
Origin
China
HS Code
5910000000
Production Capacity
10000 Roll/Year
Product Description

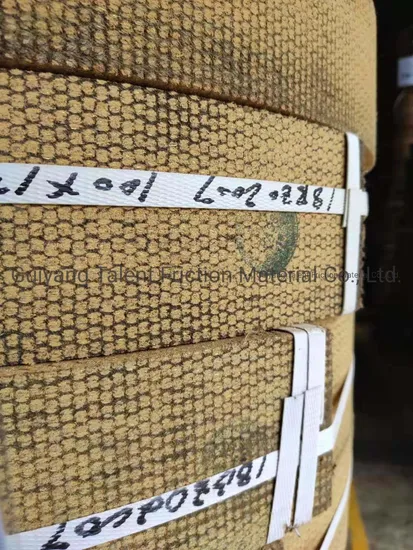

Our product non asbestos Woven Brake Lining TL2003 is a semi-flexible Non Asbestos Brake Lining for medium and heavy duty applications. The solid composite is woven from several types of fabric containing brass wire and impregnated with specially developed resins. The dense, tough material exhibits high resistance to heat and wear and excellent stability under load.The woven brake lining TL2003 could be used on many application, which needs high friction coefficient, such as anchor winch, windlass, lifeboat, raft, crane winch, drum winch, fishing winch, derdger, tugger winch and so on.
TL2003 is suitable for cast iron and steel working surface.
We intruduced the production technology from USA and made the first non asbestos woven brake lining in China. we test it under SAE J661a test method standard.
| Width: Max 510mm ( 20inches ) | |
| Thickness:3.2mm-25.4mm ( 1/8 - 1 inch) | |
| Length:10Mtr | |
| Frictional Properties: | ||
| Normal | 0.49 | |
| Hot | 0.50 | |
| 400°F | 0.48 | |
| Recommended Operating Range: | ||
| Max. Pressure, psi | 250 | |
| Max. Rubbing Speed, ft/min | 5000 | |
| Max. Intermittent Temperature | 650°F (340°C) | |
| Max. Continuous Temperature | 600°F (315°C) | |
