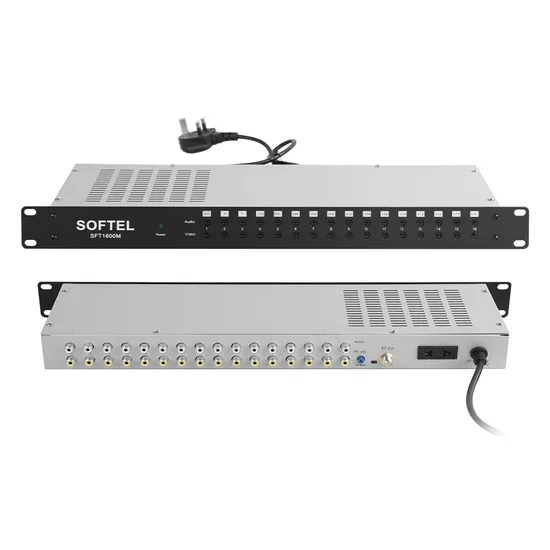

16 in 1 Economy Audio&Video AV to RF Fixed Channel Modulator
| US$135.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SFT1600M
Condition
New
Name
Economy Fixed Channel Modulator (16 in 1)
Input
16 Video& Audio
Output
1 RF
Output Impedance
75
Range
47.00MHz to 860.00MHz
Transport Package
Each Pieces with Polyfoam, Then Double Brown Box
Trademark
SOFTEL
Origin
China
HS Code
85176229
Production Capacity
1000PCS Per Month
Product Description
Features: 1.16 Video& Audio input,1 RF output2.H.F processed.Double side band modulator 3. MCU control for frequency control
4. Standard 19" housing for standard rack
5. User friendly controls in front panel
6. DSB modulator
Reflection | Output Frequency Range | 47MHz ~ 860MHz |
| Frequency Accuracy | ± 5kHz | |
| Output Level | 90 dBmV | |
| Out Of Band Suppression | - 60dBc max | |
| Output Impedance | 75 Ω | |
| Input Reflection | 12dB min any frequency | |
Video Frequency | Video To Audio Carrier Ratio | 18 ± 2dB |
| Input Level | 0.6 ~ 1.5Vp-p | |
| Input Impedance | 75Ω | |
| Input Reflection | 30dB min | |
| Video S/N | 60dB | |
| C/L Delay | 45nsec | |
| Frequency Response | ± 1dB | |
| Differential Gain | ± 5 % (Modulator 87.5 % ) | |
| Differential Phase | ± 5 ° (Modulator 87.5 % ) | |
Audio Frequency | Input Level | -10 ~ 10 dBm |
| Input Impedance | 10KΩ min | |
| Frequency Response | ± 1dB | |
| Distortion | 1 % | |
| Signal To Noise Ratio | -60dB | |
| Audio Image Interval | According to the style. | |
| Power Supply | Voltage | 110 ~ 245V |
| Power Supply Watt Loss | 15W Max |
