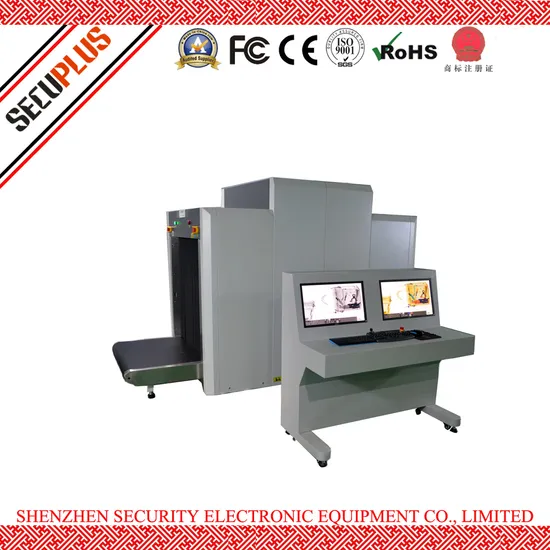

Smart X-ray Airport Baggage Scanner SPX-100100 X ray Cargo Scanner

Product Description

Smart X-ray Airport Baggage Scanner SPX-100100 X ray Cargo Scanner

SECUPLUS x ray machine can help reduce false alarm rates, and allow customers to enhance security and potentially drive down operational costs.
SPX100100 is designed for screening normal checked bagage.It can be widely used in airports, seaports, rail transport stations, critical infrastructures and big events, etc.
High Light:
*Powerful image dealing ability;
*Accurate Z7,Z8,Z9 mark for explosive and narcotics;
*Windows 7 operation system;
*Automatic save scanned image;
*Friendly operation System;
*Reliable performance.
Technical characteristics:
*Duel energy penetration system;
*TIP program;
*Clear and distinct image;
*Scanned imaged can zoom up to 64 times;
*Partly zoom up to 3 times;
*13 kinds of image processing functions and 6 kinds of pseudo color;
Application field: Train Stations; Metro Station; Jail House ; Embassy; Boarder check points; Entertainment venues; Tourist attractions; Office buildings; Shopping malls; Factories, etc;
*Suitable for security inspection of briefcase, hand luggage, postal parcels and other small packages.
General specs :

Tunnel size	1010mm*1005mm (W*H)
Conveyor speed	0.20m/s
Conveyor height	300mm
Maximum load	200kgs(evenly distributed)
Wire resolution	40AWG(dia 0.0787mm wire)
Spatial resolution	Level: dia1.0mm copper wire, Vertical: dia1.0mm copper wire
Penetration(steel)	32mm guarantee, 34mm typical
Penetration resolution	32AWG(0.202mm)
Display	21.5 inch color LCD monitor,high resolution: 1280*1024
X Ray generator anode voltage	160Kv(operating in 150KV)
Cooling cycle	Oil Cooling /100%
X ray dose per inspection	<1.0 μSv
X ray generator	1
Beam direction	from top to bottom
Image process	Black and white / color, anti-color, high energy penetration, super enhancement, histogram equalization, forced scanning, magnifying glass, image pull back / front pull, image storage
Material classification	Organic:orange;Inorganic:blue;Mixed and light metal:green
Section and magnification	Any area selection,1 -64 times magnification, support continuous amplification
Image pull back	unlimited images
Storage capacity	Can store at least 100000 pcs image
X ray leakage	<0.5 μSv /h(at a distance of 5cm From external housing),meet all international and domestic health and safety standards
Film safety	guarantee ASA/ISO1600 Film
Software system	F1,F2,F3 programmable key,high density alarm,TIP;date/time display, baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
Optional function	Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up
Physical size	3595.5*1285*1795mm (L*W*H)
Weight	1300kgs
Operation temperature/Humidity	0ºC+/-3ºC~+40ºC+/-2ºC 5%~95%(non-condensing)
Storage Temperature/Humidity	40ºC+/-3ºC~+60ºC+/-2ºC 5%~95%(non-condensing)
Operation power	220VAC (+/-10%) 50+/-3HZ
Power consumption	2.0KvA
Noise	Less than 55db

Our Services :
1. Operation training program for end users
2. Free of factory training for engineer from agents to end user
3. Provide on-site trainning when customer requires
4. If quality problems happen in guarantee period, our company will maintain for free.
5. One year free spare parts and life time technical support
6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
7. If you are caught in some problems when using our products, welcome to contact us at any time.
