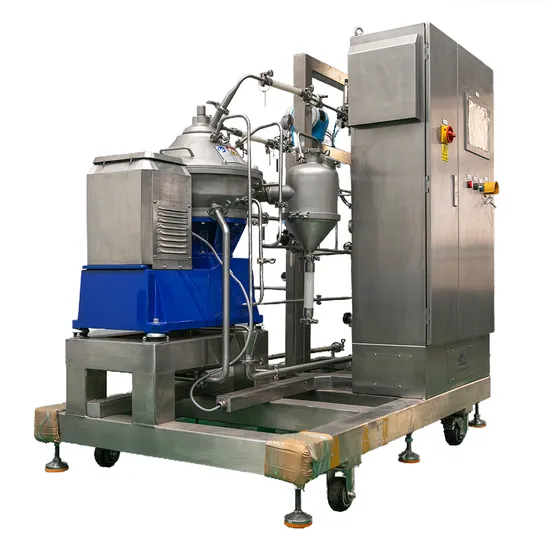

Efficient Liquid Solid Separator Equipment
| US$138,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DQBS220
Type
Centrifuge
Object
Chemical Liquid
Separation Mode
Filter Type
Operating Type
Continuous Type
Installation
Vertical
Centrifuge Type
Disc Centrifuge
Distillation Equipment Type
Steam Distillation Equipment
Extraction Tower Type
Vibration Plate Tower
Pressure
Medium Pressure
Condition
New
Color
Blue, Green, Orange, Yellow, Customizable
Certificate
ISO9001
Motor Power
50 Hz 15 Kw
Machine Weight (Empty)
1250kg
Overall Dimensions
1400*1200*1420mm
Treatment Capacity
1~2 Ton Per Hour
Transport Package
Wooden Export Package
Specification
depend on model
Trademark
CHM
Origin
China
HS Code
8421919090
Product Description
In the intricate world of the chemical industry, separation is a pivotal process that involves distinguishing mixtures into their individual components. This crucial step underpins the production of numerous drugs and chemicals. With a variety of methods available, the selection of the most suitable technique hinges on the unique characteristics of the material in question. Among these methods, centrifugation stands out as the most prevalent.Our DFB(H)Y series separator excels in purifying and clarifying chemical raw materials, efficiently eliminating impurities from extracts. This enhances the clarity and purity of the end product, ensuring customers receive high-quality materials. Designed for safe, reliable, and user-friendly operation, this advanced separator significantly reduces operational costs.
| Application | Model | Treatment Capacity | Motor Power | Inlet Pressure | Outlet Pressure | Weight | Overall Dimensions |
| (L/H) | (KW) | (MPa) | (MPa) | (KG) | (mm) | ||
| Animal Fat/Plant Oil | DQRE260 | 700-1500 | 3 | 0.05-0.1 | ≤0.3 | 280 | 620*500*1100 |
| DQBE260 | 1000-2000 | 3 | 0.05-0.1 | ≤0.4 | 280 | 620*510*1200 | |
| DFBE350 | 1200-2500 | 5.5 | 0.05-0.1 | ≤0.4 | 450 | 620*510*1200 | |
| DFHE450 | 3000-4000 | 11 | 0.05-0.1 | ≤0.4 | 1450 | 1850*1550*1800 | |
| DFHE610 | 6000-10000 | 22 | 0.05-0.1 | ≤0.4 | 2180 | 1980*1610*1950 | |
| Food/Beverage/Dairy | DQRP260 | 200-500 | 2.2 | 0.05-0.1 | ≤0.3 | 260 | 620*510*1400 |
| DQHN260 | 700-1500 | 3 | 0.05-0.1 | ≤0.3 | 260 | 620*510*1400 | |
| DQBP350 | 1200-2000 | 5.5 | 0.05-0.1 | ≤0.4 | 450 | 620*510*1200 | |
| DQBN380 | 2000-3500 | 7.5 | 0.05-0.1 | ≤0.4 | 1250 | 1600*1200*1500 | |
| DQBN410 | 2000-4000 | 11 | 0.05-0.1 | ≤0.4 | 1250 | 1600*1200*1500 | |
| DQHP510 | 3000-5000 | 15 | 0.05-0.1 | ≤0.4 | 1670 | 1850*1550*1800 | |
| DFHP610 | 6000-10000 | 22 | 0.05-0.1 | ≤0.4 | 2100 | 1980*1610*1950 | |
| Biological Fermentation | DFBS260 | 200-500 | 2.2 | 0.05-0.1 | ≤0.3 | 260 | 620*510*1400 |
| DFBS260 | 700-1500 | 3 | 0.05-0.1 | ≤0.3 | 280 | 620*510*1400 | |
| DFBS350 | 1200-2500 | 5.5 | 0.05-0.1 | ≤0.4 | 450 | 620*510*1200 | |
| DFBS410 | 2000-4000 | 11 | 0.05-0.1 | ≤0.4 | 1250 | 1600*1200*1500 | |
| DFBS510 | 3000-5000 | 15 | 0.05-0.1 | ≤0.4 | 1670 | 1850*1550*1800 | |
| DFBS610 | 6000-10000 | 22 | 0.05-0.1 | ≤0.4 | 2100 | 1980*1610*1950 | |
| Industrial Waste Liquid | DFBY200 | 200-1000 | 0.37 | 0.05-0.1 | ≤0.3 | 80 | 500*600*1200 |
| DFBY260 | 700-1500 | 3 | 0.05-0.1 | ≤0.3 | 260 | 620*510*1400 | |
| DFBY260 | 1000-2000 | 3 | 0.05-0.1 | ≤0.4 | 280 | 620*510*1200 | |
| DFBY350 | 2000-3000 | 5.5 | 0.05-0.1 | ≤0.4 | 450 | 620*510*1200 | |
| DFBY410 | 3000-4000 | 11 | 0.05-0.1 | ≤0.4 | 1600 | 1850*1550*1800 | |
| Chemical Liquid Coal Tar Marine/Mineral Oil | DFBY510 | 3000-5000 | 15 | 0.05-0.1 | ≤0.4 | 1670 | 1850*1550*1800 |
| DFHY610 | 6000-10000 | 22 | 0.05-0.1 | ≤0.4 | 2100 | 1980*1610*1950 |
