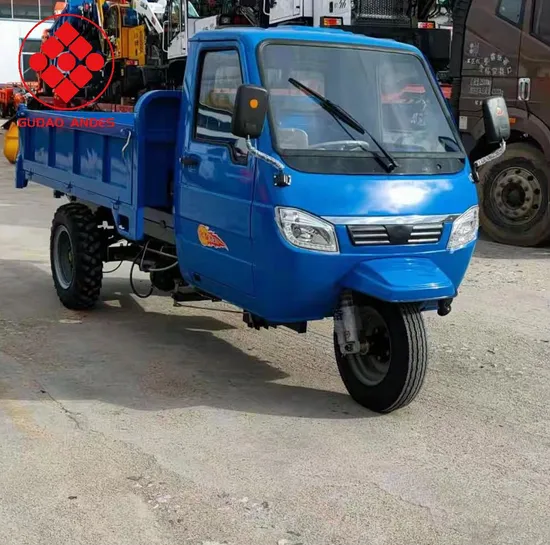

Popular Three Wheel Motorcycle Cargo Tricycle Cheap Gas 3 Wheel Tricycle Cargo Triciclo Cargo 200cc 250cc 300cc Displacement

Product Description

Popular Three Wheel Motorcycle Cargo Tricycle Cheap Gas 3 Wheel Tricycle Cargo Triciclo Cargo 200cc 250cc 300cc Displacement we are factory mining truck factory,such as tricycle,four wheel truck, dump truck for small o midium scale mining! Diesel or electrical three o 4 wheel mining cargo dumper is our main product, mainly used in mining, brickyard, sanitation, palmryand pasture. It has been improved many times with the advantage of large power,long work hours, heavy load and suitable for any road.
We have the types of cargo tricycles dumpr truck and 4-wheel dumper trucks from 1ton to 30 tons for you to choose.
Advantages of tricycle mining truck and 4 wheel dumper
1. Improved design of main structure like two and half beam to assure large load and security;
2. Improved design of power supply and distribution system to achieve lower fuel consumption and more driving force;
3. Best diesel engine and battery group supplier to assure a robost performance;
4. Clutch lock is used for Rear axle and no resistance gear makes it easy to operate.
5. Large capacity is put to use for fuel tank, driving mileage is long.
6. Electrophoretic coating process is used for the vehicle cover panel. Corrosion and aging resistance, non-fading.

Power source	Diesel engine	Diesel engine
Engine power	13KW/18HP	13KW/18HP
Driving position	Middle	Middle
Front axle Model	Double spring absorber	Double spring absorber
Drive type	3×2	3×2
Transmission gear	3 Forward and 1 Reverse High-Low speed shift gear	3 Forward and 1 Reverse High-Low speed shift gear
Front tyre model	450-14	450-14
Rear tyre model	650-16	650-16
Leaf spring quantity	Rear: 15 Pieces	Rear: 15 Pieces
Leaf spring model	90×70×12MM	90×70×12MM
Carriage dimension	1600×1100×450MM	1850×1200×450mm
Carriage thickness	Bottom 3MM / Side 3MM	Bottom 3MM / Side 3MM
Unloading model	Front lifting	Front lifting
Hydraulic cylinder model	110×700MM	110×700MM
Steeing model	Center turbo steering	Center turbo steering
Overall dimension	3200×1100×1250MM	3450×1250×1250MM
Exhaust treatment	Water treatment	Water treatment
Loading capacity	1 Ton	2 Ton

Case of Cliente: Packing and Delivery: Our Exbitition: Inquiry service:
In order to provide you the most suitable product, please help us to answer the bellow several questoins:
1. Where do you need to use the dumper:
For underground tunnel mine and the width is? Or for palmery so the dumper need to be equipped with wider tyre.
2.What is the load capacity you need?
From 1 - 30Tones.
3. What is the engine type you prefer?
For tricycles of 1-5 tones, we have diesel motor and electrico type. For 4-wheel dumpers, we only have diesel motor type.
4. Any other special requirements, please tell us in advance.
