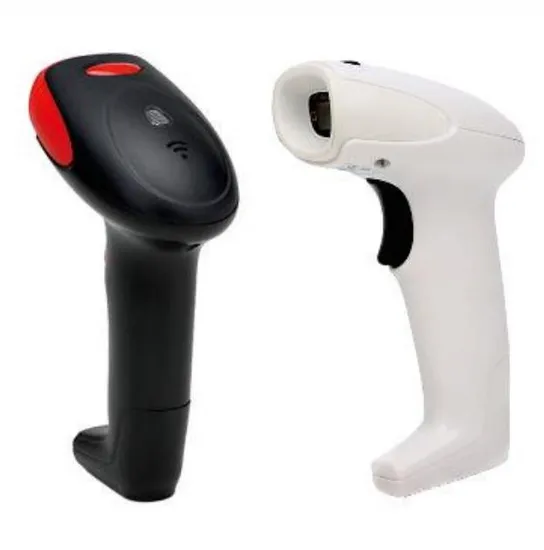

Factory POS Auto Barcode Scanner Reader

Product Description

Quality POS Auto 2D Barcode Scanner OEM POS products Factory in China

Wired Full-Automatic Induction Laser Barcode Reader
Performance Parameters
Part Number	OA-6900
Light Source Type	Visual lasing diode; the wave length is 650mm.
Trigger Mode	Manul and automatic optional (Note: This automatic trigger mode is the technology researched and developed by our company independently and more convenient and reasonable than the automatic induction technology used in the national and international barcode field.)
Scanning Mode	Single-line scanning
Scanning speed	100±2 times /s
Resolution	≥4mil
Printing Contrast Ratio	The lowest reflectivity difference is 30%.
Bit error rate	1/50 million
Input voltage	5VDC±0.25V
Power	250mW (Work): 325mW (momentary maximum)
Current	50mA (Work): 65mA (momentary maximum)
Standby current	<20mA
Light intensity	3000-12000Lux
Depth of field	5mm-630mm
Scanning angle	±60°±65°±42° (Left and right, front and back, rotation)
Decoding capacity	UPC/EAN/JAN, UPC/EAN with Supplemental, UCC/EAN 128, Code 39, MSI, Code11
	Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128Full ASCII
	Codabar, Code93, Discrete2of5, IATA, RSSvariants, Codabar, Chinese2of5,
	International general dimensional barcodes, e.g. Inteleaved2/5, Interleaved2of5 and China postal service code
Prompt mode	Buzzer and LED indicator
Cable interface	USB (standard): PS/2 and RS232 are selectable.
External dimensions	L*W*H: 158mm*68mm*96mm
Weight	170g (excluding cables)
Cable standard	Straight line,1.8m
Interface type	RJ-45 crystal head
Hull material	ABS+PC
Temperature	0ºC to 50ºC (Work): -40ºC to 60ºC (storage)
Setting mode	Manual (scanning and setting barcodes according to the sequence)
Safety Regulations	Laser safety class: EN60825-1, Class 1, state level-I laser safety standard
	EMC: EN55022,EN55024
	Electrical safety: EN60950-1
	Packaging level: IP52
	Anti-seismic capacity: This product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times.

1 D ,2 D wireless Barcode reader scanner

2D Auto Barcode Scanner With Bracket Holder
Our scanner widely using in different station in many Countries :
Our Hot sale Pos Products recommed
Our Production line of our pos barcode products in our factory :
Our packing exporting standard :
Our shipping by Air , Seaway Container , Raiway ,Road way by car :
About us :
Our factory located in Guangzhou City, Which the City ,quality materials using control well than other Area .
We offer OEM /ODM service for our products for each of our partner in different Countries.
We aiming to the products we produced and offerd to you better than others in most market have . You do not need worry Quality , Do not need worry After sales service ,
Be happy with our service and fast speed of dealing business for long term business .
Doing business with us will save time for you , save money for you , save problem for you .
My Name is Sherry , Yours reliable trusting friends.
