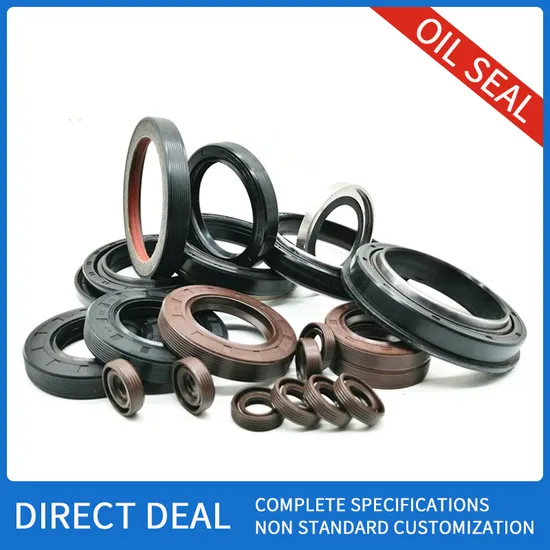

NBR FKM Rubber Oil Seal Tc Oil Seal Manufacturers of Different Types of Oil Seals

Product Description

NBR FKM Rubber Oil Seal TC Oil Seal Manufacturers Of Different Types Of Oil Seals
Description-TC Oil Seal:
The TC oil seal is a mechanical component used to seal oil. TC skeleton oil seal isolates the parts of the transmission component that need to be lubricated from the output components so that lubrication and leakage are not allowed.
This is a rubber-covered double-lip oil seal with a self-tightening spring. Generally speaking, the oil seal often refers to this TC oil seal.
The function of the skeleton oil seal is to isolate the parts that need lubrication from the output parts in the transmission parts, so as not to let the lubricating oil leak. It is usually used in the transmission parts.
The rotary shaft is a rotary shaft lip seal. The skeleton acts as a reinforcing steel bar in concrete members and keeps the shape and tension of the oil seal. According to the skeleton type, it can be divided into internal skeleton oil seal, external skeleton oil seal, and internal and external skeleton oil seal. The skeleton oil seal is made of high-quality nitrile rubber and steel plate, with stable quality and long service life. Widely used in automobile, motorcycle crankshaft, camshaft, differential, shock absorber, engine, axle, front and rear wheels, and other parts.

Type	TC TB TA SC SB SA VC VB VA KC KB KA TCV TCN
Temperature	-35~+250ºC
Press	0~0.05MPA
Rotational Speed	0-25m/s
Medium	lubricating Oil, Grease, Water
Other material of oil seal	Silicone, NBR, Metal & Stainless Steel, PTFE, etc.
Production equipment	includes vacuum vulcanizing machines, large-scale flat vacuum vulcanizing machines,
	rubber machines, CNC machine tools, temperature-controlled ovens, and detectors
Application	High-pressure hydraulic seal auto rubber oil seal
	1. Fluid system (static & dynamic)
	2. Hydraulic system (dynamic)
	3. Pneumatic system (dynamic)
	4. Oil or grease media sealing
	5. Water media sealing
	6. automobile, motorcycle, industry, agricultural machinery, truck, buses, trailers,
	exercise equipment.

These are just a few of the sizes. And we can also custom the size of your requirements.
Please contact us to tell me your request.

SIZE	SIZE	SIZE	SIZE	SIZE
35*54*7	44*57*9	53*70*9	63*92*10	72*95*10
36*56*7	45*56*7	54*72*8	64*93.3*9	73*98*12
37*50*6	46*58*5	55*70*8	65*81*7	74*96*7
38*50*12	47*58*7	56*76*6	66*86*9	75*90*13
38*50*12	48*63*10	57*71*7	67*88*9	76*93*10
40*50*6	49*63*9	58*72*8	68*82*10	76*93*10
41*54*8	50*62*12	59*72*12	69*92*14	80*95*8
42*52*4	51*70*9.5	60*72*9	70*87*7	80*95*8
43*55*6	52*67*6.7	62*75*7	71*88*8	90*105*12

Different Type Rotary Shaft Oil Seal

Different Type Rotary Shaft Oil Seal
Type	Material	Lip	Spring	Feature
TC	NBR & FKM	Double Lips	Single	Metal Coverd Rubber
TB	NBR	Double Lips	Single	Metal Case
TA	NBR	Double Lips	Single	Metal Case
SC	NBR & FKM	Single	Single	Double Metal Shell
SB	NBR	Single	Single	Metal Case
SA	NBR	Single	Single	Double Metal Shell
DC	NBR	Double Lips	Double	Double Springs
VC	NBR & FKM	Single	Without	Metal Coverd Rubber
VB	NBR	Single	Without	Metal Case
TCV	NBR	Double Lips	Single	High Pressure
TCN	NBR	Double Lips	Single	High Pressure
PTFE	PTFE	Single & Double Lips	Without	Stainless steel
HTCL	NBR & FKM	Double Lips	Single	Inside thread L
HTCR	NBR & FKM	Double Lips	Single	Inside thread R

Other material of oil seal: Silicone, NBR, Metal & Stainless Steel, PTFE, etc. Production equipment: includes vacuum vulcanizing machines, large-scale flat vacuum vulcanizing machines, rubber machines, CNC machine tools, temperature-controlled ovens, and detectors. Application High-pressure hydraulic seal auto rubber oil seal: 1. Fluid system (static & dynamic) 2. Hydraulic system (dynamic) 3. Pneumatic system (dynamic) 4. Oil or grease media sealing 5. Water media sealing 6. automobile, motorcycle, industry, agricultural machinery, truck, buses, trailers, exercise equipment. DLseals standard sizes of Galvanized Copper Washers metal gaskets Dowty seals Bonded Seals
Our sealing products factory is located in Hangzhou City, zhejiang Province. Founded in 2014, the company is a comprehensive sealing enterprise integrating sealing design, R & D, production, agency, storage and sales. The company has seven companies and three field engineers who have been engaged in the sealing industry for some years. Excellent sealing design and development capability, advanced processing equipment and technology, high-quality imported raw materials (hydraulic reciprocating seal) and skeleton rotary seal; Products are widely used in: hydraulic and pneumatic construction machinery. Petrochemical Machinery and electronics. Electricity. Shipbuilding. papermaking. Coal mine pump valve and other fields
Our main products are: O-ring, X-ring, Y-ring, D-rings, rubber flat washer, ED rings, rubber strips, rubber ball, all kinds of skeleton oil seal, stepseal, polyurethane oilseal, pneumatic seals and Mechanical Seal all kinds of rubber parts for the design according to customer request.
we specialized in the development and production of sealing systems which were used in the Metallurgical,Electrical,Auto, Engineering machinery, Light industrial machinery and Electrical appliance manufacturing industries. BESEALS focus on customers' needs,as a dependable partner and reliable supplier to help you resolve supply or technical problems ,and improve the performance of your equipments or your business. When you are facing emergency repairs situation or urgent orders,the highly responsive team of DLseals will offer you very short lead time. Beseals has a global sales network,and our seals have been sold to more than 100 countries or areas ,Such as America, England, Canada, Australia, Russian Federation ect . FAQ 1. who are we? Are you trading company or manufacturer ?
We are manufacturer.We are based in Hangzhou, China, start from 2010,sell to Domestic Market(33.00%),North America(15.00%),South America(10.00%),Western Europe(8.00%),Eastern Europe(6.00%),Souther Europe(6.00%),Southeast Asia(5.00%),Mid East(5.00%),Northern Europe(5.00%),Oceania(2.00%),South Asia(2.00%),Africa(00.00%),Eastern Asia(00.00%),Central America(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
PTFE Seals/Oil Seals/O Rings/Rubber Seals/Plastic Seals/Mechanical Seal/O-RING/ RING Seals.
4. why should you buy from us not from other suppliers? Beseals is a professional manufacturer of seals .Our company specializes in the production of PU, PTFE, rubber and metal sealing components
5. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
6.Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but you need to pay the cost of freight. 7. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,Express Delivery; Accepted Payment Currency:USD,EUR,JPY,CAD,HKD,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Escrow; Language
Spoken:English,Chinese,Japanese
For more information, please contact us. We look forward to your arrival
