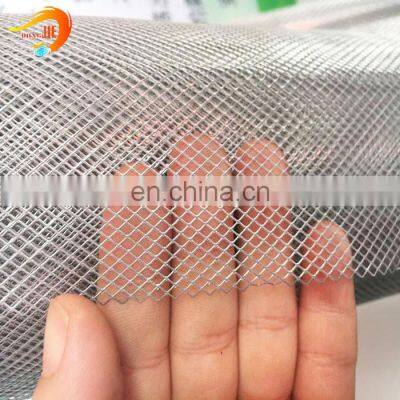

MICRO HOLE EXPANDED METAL MESH
View More, Click Here!
Dongjie Wire Mesh offers micro expanded metal with various hole patterns and can be made of various metal materials.
Micro expanded metal can be made of almost all kinds of metal sheet. Except for carbon steel, aluminium, stainless steel, copper, it also can be made of nickel, titanium and other materials.
The same as you know about common expanded metal, micro expanded metal is formed in an expanding process. In this process, the basic metal is simultaneously slit and cold-formed with high precision technology. Finished with various optional patterns and one-piece structure, it is durable and economical for filter element & support, gutter filter, batteries grid plate, aesthetic paneling, decorative mesh and so on.
It's worth mentioning that we can provide micro expanded metal with surface treatment of Teflon spraying. Dongjie own professional and precision production line, and your other special customization for micro expanded metal is our honor.

· One-piece construction. · Versatile and attractive. · Excellent weight-to-strength ratio. · Low wind resistance. · Easy cutting and shearing. · Various styles and materials are available. · Durable and economical.

Specification
Name	Micro Hole expanded metal, Mini-mesh expanded metal foil, fine mesh expanded metal
Material	Carbon steel, stainless steel, aluminium, sliver, brass, copper, nickel, titanium.
Hole Pattern	Diamond, square, round, hexagonal, triangle, fish scale
Hole Type	Raised/standard, flattened.
Structure	One-piece construction.
Surface Treatment	PVC coated, Teflon spraying, hot-dipped galvanized, electro galvanized, anodized, polished.
Process	Punching and shearing tensile.
Color	Green, gray, blue, yellow, white, black, any color available according to customer's requirement.
Package	Standard pallet with packaged into thin film, bubble film for unit inside, woven bag for unit outside, or according to your requirements.

Styles of Expanded Metal
Regular (standard or raised) – all expanded metal is produced in regular form off the expanders. The strands and bonds are set at a uniform angle to the plane of the sheet. This gives added strength and rigidity, as well as a skid resistant surface.
Flattened – is manufactured by processing regular expanded metal in a rolling mill. The rolling process reduces the thickness of the original base metal.
Design Designations
Strands – The sides of the expanded metal design
Strand Thickness – Thickness of the base material from which the sheet was produced.
Strand Width – Amount of metal fed under dies to produce one strand
Strand Thickness and Width – Can be varied to create different openings.
The width of the strand should equal or exceed the thickness of the base metal.
SWD – Nominal dimension, Short Way of Diamond
LWD – Nominal dimension, Long Way of Diamond
Design Size – Actual dimension SWD and LWD.
Measured from a point to a corresponding point on the adjacent diamond.
SWO – Short Way of Opening
LWO – Long Way of Opening
Bond – Where two strands intersect
Product Images

Dimensions for Standard Micro Expanded Metal
style	Overall Thickness	Design Size (in.)		Opening Size (in.)		Strand Size (in.)		Weight (lbs. per sq. ft.)
		SWD	LWD	SWO	LWO	Width	Thickness
Steel
1/8"-029	.050	.140	.280	.085	.185	.029	.024	.4142
3/16"-035	.070	.165	.400	.115	.260	.035	.024	.4242
3/16"-036	.060	.230	.500	.170	.370	.036	.024	.3130
1/4"-H035	.083	.220	.400	.140	.240	.035	.024	.3182
1/4"-H045	.085	.220	.400	.140	.240	.045	.030	.5114
3/16"-R045	.080	.270	.600	.200	.440	.045	.024	.3333
3/16"-R050	.088	.270	.600	.200	.440	.050	.030	.4630
5/8"-110	.172	.630	1.575	.428	1.260	.110	.060	.8000
Aluminum
3/16"-035	.075	.175	.400	.115	.260	.035	.032	.1823
3/16"-037	.075	.240	.500	.170	.365	.037	.040	.1757
1/4"-H035	.075	.220	.400	.140	.240	.035	.032	.1450
1/4"-H042	.083	.220	.400	.140	.240	.042	.040	.2176

Product Process
Application
Decorative mesh.
Covering & support for air and fluid filter.
Strainer.
Furniture, container.
EMI/RFI shielding.
Battery cell.
Ventilation system.
Satellite and radar antenna.

micro expanded metal for digital audio	micro expanded metal for grease filter
micro expanded metal for tianium	micro expanded metal for battery grid plate

Packing&Shipping
Package:
Standard pallet with packaged into thin film, bubble film for unit inside, woven bag for unit outside, or according to your requirements.
Shipping:
Our Service
1. Small sample is free.
2. According to the different customer need to customize logo.
3. According to the color of the customers like to customize.
4. We have full stock, and can deliver within short time.
5. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
We have rich experience of design, manufacture and sell wire mesh products, we cherish every order from our honor.
Our Certificate
FAQ
1. How to make an inquiry of Wire Mesh?
You need to provide material, wire diameter, size and the quantity to ask an offer. You can also indicate if you have any special requirement .
2. Could you provide free sample?
Yes, we can provide free sample in half A4 size together with our catalogue. But the courier charge will on your side. We'll send back the courier charge if you make an order.
3. How is your Payment Term?
Generally, our payment term is T/T 30% in advance and the balance 70% against the copy of B/L. Other payment term we can also discuss.
4. How is your delivery time?
We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material.
