New Design Lever Arch File Inner Paper Pasting Machine for File

Product Description

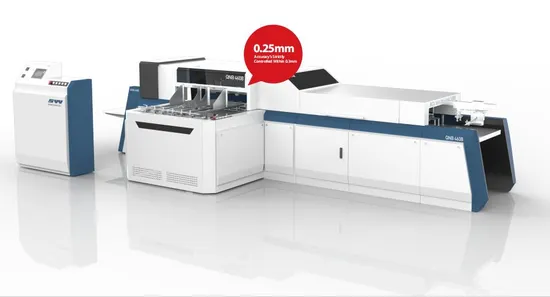

lever arch file inner paper pasting machine QNB-460
hard cover machine adopts automatic paper feeding system and automatic cardboard positioning device; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make perfect book covers, notebook covers, calendars, hanging calendars, files etc.

Feature:
1. The feeder in this machine adopts back-push feeding system, which is controlled pneumatically, and its structure is simple and reasonable.
2. Adopt imported ultrasonic paper tester device to keep two pieces of layered paper from entering into the machine at the same time.
3. The cardboard feeding table is controlled by linear guide line and servo motor, its location is correct and quick.
4. Cardboard table adopt non-stop feeding system which can efficiently improve working speed..
5. The whole machine adopts PLC control, featuring in simple operation. The troubles are displayed directly on the screen, which helps the operator easily remove them.
6. Optional device: glue viscosity meter
hard cover machine Main Technical Parameter:

Model	QNB-460,B,T	QNB-600B,T
Length of paper	100-830MM	230-1030MM
Width of paper	120-480MM	120-600MM
Thickness of paper	80-200g	100-300g
Thickness of cardboard	1-3mm	1-3mm
Working Speed	0-25sheets/min.	0-25sheets/min.
Dimension	L4000XW2100XH1500mm	L6800XW2250XH1500mm
Power supply	10.5kw	11.5kw
Weight	2000kg	2200kg

Lever arch file machine combine with following machine :
1) Automatic case maker for file folder (we also have semi automaticcase maker )
2) Automatic lining machine (we also have semi automatic lining machine )
3) Cardboard slitting machine for hardcover SW-1350
4) Angle corner cutting machine for paper ZD-120
5)Mutify hole punching machine SW-95
6)Twin Riveting machine SW-91
7) Four riveting machine SW-91A
8) Twin rado riveting machine SW-92
9) finger ring eyeleting machine SW-93
10) Creasing machine SW-99
11) edge protector machine SW-96
