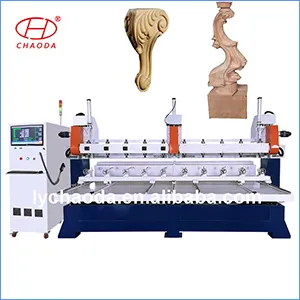

Professional CNC Router Machine 5 Axis Furniture Legs Making Router CNC

Product Description

Professional cnc router machine 5 axis furniture legs making router cnc
Specifications

Model	JCW1325R--8H
Working size	1200mm ( L) x 300mm (W) x 10 rotaries
Spindle power	10*3.5KW Air Cooled (option: Water Cooled)
Spindle rotating	0-18000rpm
Max moving speed	20m/min
Reposition precision	0.03mm
Control system	5 Axis Syntec (option: Ncstudio)
Motor	Servo system

Application
All kinds of wood, hardwood, solidwood, plywood, foam, EPS, polystyrene, polyurethane, styrofoam, polyfoam, composite board, PVC, plastic, acrylic, Organic glass, and other materials.
1) Decoration industry
2) Advertising industry
3) Mould industry
4) Construction industry
5) Craft industry
6) Furniture industry
7) Sculpture, statue, figure industry
8) Model industry

Main Features
1) This 5 axis cnc router machine with 8 rotary axis is with removable table, so, when you cut and engrave the flat /
plane, just need to put on this table; when you do the column / round / cylinder, just need to take down the
moveable table.
2) Each spindle has two heads with two tools, which is equivalent to Auto Tool Changer
3) Multi spindles can work at the same time,also can work alone, many times increasing inefficiency. can also
control the machine heads independently, can use only one head to process and make increasing the working
area.
4) This machine is very suitable for furniture bulk production such as desk legs/stair handrails and other column /
cylinder products,it also can easily engrave 360 degree human body, Buddhist statue, sculpture and other art
works
5) Easy-to-operate Taiwan SYNTEC control system
6) Powerful PowerMill software with post processor
7) Except X, Y, Z and Rotary Axis, the 5th axis is the spindle can swing front and back, which can do
more complex work.
FAQ
1) Factory location:
Linyi city, Shandong province, China.
From Shanghai to Linyi by airplane: about 1 hour
From Beijing to Linyi by airplane: about 1 hour
From Guangzhou to Linyi by airplane: about 2 hours
2) Payment term:
50% T/T deposit payments in advance, the balance should be paid before shipment
3) Delivery time:
1 month
4) Free training in our plant:
Including how to make program (tool path) by PowerMill software, how to install and operate
the machine, normally 2~3 days
