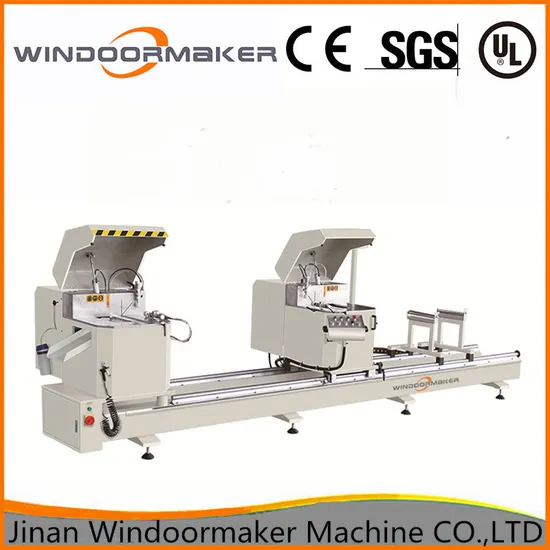

Window Machine Auto Double Head Precision Mitre Saw/ Window Door Making Machine of Automatic Aluminum Saws

Product Description

Product Description
Specification:
Used for Aluminum, PVC and Curtain-wall profile accurate Cutting. Digital display system equipped can be easy readout the accurate cutting length and quantity automatically, ensures a high accurate re-load position and convenient man operation work Hydraulic cylinder ensured the stable speed adjusting and saw blade working. Automatic angle cutting can be changed in 90°&45°. When cutting the blade can be moved from bottom to top which is convenient and safe for man operation. Carbide saw blade for a high quality cutting and life. Imported linear guide rail keep the accuracy of cutting length. Product Parameters
Technical Parameter:

Power supply	Made to order
Motor power	2*2.2KW
Motor rotary speed	2800r/min
Air consumption	60L/min
Operation air pressure	0.6~0.8Mpa
Cutting length	400~4300mm
Max. cutting height	125mm
Cutting width	235mm
Cutting angle	45°,90°
Feeding speed	Stepless timing 0~3m/min
Cutting profile surface plane	≤0.10mm
Cutting angle tolerance	Ra12.5 μm
Saw blade specification	φ500mm×4.4mm×φ30mm Z=108
Dimension(L×W×H)	5750×1300×1500mm
Weight	1800kg

Certifications
Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.

Machine at old customer

Packaging & Shipping
