Stainless Steel Gate Valve Oil and Gas 800wog Y Type Check Valve
| US$4.50 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
800wog Y Type Check Valve
Material
Stainless Steel
Connection Form
Thread
Structure
Swing
Pressure
Ordinary Pressure
Function
Ddcv Double Lobe, Nrvr Silence, Sfcv Rubber Lobe, Nrvz Silence, Nrvg Silence
Sealing Form
Bellows Globe Valve
Flow Direction
Reversing
Standard
ANSI
Application
Industrial Usage, Water Industrial Usage, Household Usage
Size
1/2"-4"
Transport Package
Small Box-Cartons-Plywood Case
Specification
CE and ISO proved
Trademark
LEINA
Origin
China
HS Code
8481804090
Production Capacity
5000/Month
Product Description

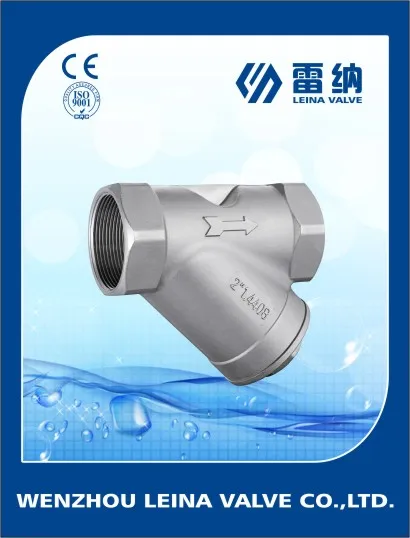

Y Type Check valve 800WOGFeatures
Various Thread Standards Available
Suitable for installation in horizontal and vertical
Using dewaxing precision casting
Product standard
Design: ASME B16.34
Wall Thickness: ASME B16.34
Pipe Thread: ASME B1.20.1, BS21, DIN 2999/259, ISO 228/1, JIS B 0203, ISO 7/1
Inspection & Testing: MSS SP-110, EN 1226
| No. | Parts name | Material | |
| ANSI/JIS/DIN | ANSI/JIS/DIN | ||
| 1 | Body | A351-CF8M/SCS14A/1.4408 | A351-CF8/SCS13A/1.4308 |
| 2 | Compression ring | SUS304 | |
| 3 | Cap gasket | PTFE/RPTFE | |
| 4 | screw | A193-B8 | |
| 5 | Disc | SUS304 | |
| 6 | Spring | SUS304 | |
| 7 | Cap | A351-CF8M/SCS14A/1.4408 | A351-CF8/SCS13A/1.4308 |
| 8 | Cap gasket | PTFE/RPTFE | |
| Size | d | L | H |
| 1/2" | 17.5 | 67 | 44.7 |
| 3/4" | 23 | 75 | 52.1 |
| 1" | 29 | 90 | 65.7 |
| 1-1/4" | 38 | 110 | 70 |
| 1-1/2" | 43.5 | 120 | 79.5 |
| 2" | 55 | 140 | 95.5 |
| 2-/2" | 69 | 190 | 125 |
| 3 | 81.5 | 205 | 144.5 |
