Efficient TM: Ylf Crystal with Linearly Polarized Laser Output

Product Description

Products Description

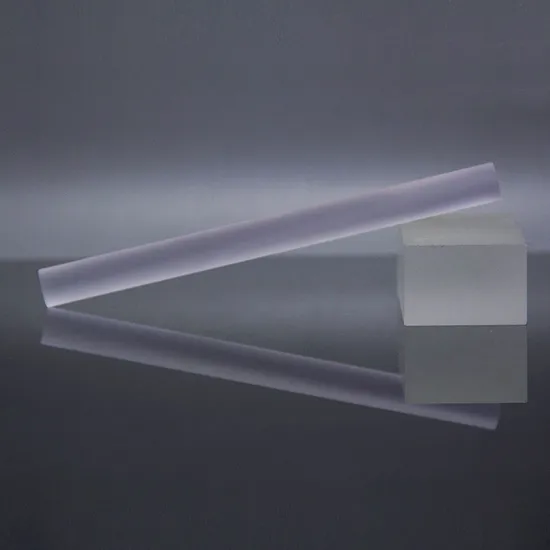

Tm:YLF Tm: YLF crystal is a negative uniaxial crystal with a negative temperature coefficient of refractive index, which can offset part of thermal distortion, so the output beam quality is high. The pumping wavelength is 792nm, and the linearly polarized laser light of 1.9μm is output in the a-axis direction. The c-axis output is non-linearly polarized light. Selecting the appropriate crystal size and doping concentration can obtain high-power laser output, and it is an important pump source laser crystal for mid-wave infrared lasers. Main features: Linearly polarized laser output The thermal effect of laser operation is small Cross relaxation Efficient Suitable for diode pumped
Product Parameters

Crystal structure	Tetragonal
Melting point	825°C
Moh's hardness	4-5
Density	3.95g/ cm3
Thermal conductivity	0.06W/cm/K
Young's modulus	7.5×10 11 dynes cm -2
Tensile strength	3.3×10 8 dynes cm -2
Coefficient of thermal expansion	[100] Direction: 13×10 -6 /K
		[001] Direction: 8×10 -6 /K

Doping concentration	0~5at% Can be customized according to customer requirements
Orientation	[100] or [001], ± 5°
Wavefront distortion	≤0.25λ/25mm @632.8nm
Crystal rod size	Diameter: 3~9.5mm, Length: 5~120mm Can be customized according to customer requirements (round rod or plank)
Dimensional tolerance	Diameter: +0.00/-0.05mm, Length: ± 0.5mm
Cylindrical processing	Grinding or Polishing
Parallelism of end faces	≤10"
Perpendicularity between end face and rod axis	≤5′
Flatness of end face	≤λ/10@632.8nm
Surface Quality	10-5 (MIL-O-13830A)
Chamfer	0.15±0.05mm
AR Coating Reflectance	≤0.25%
