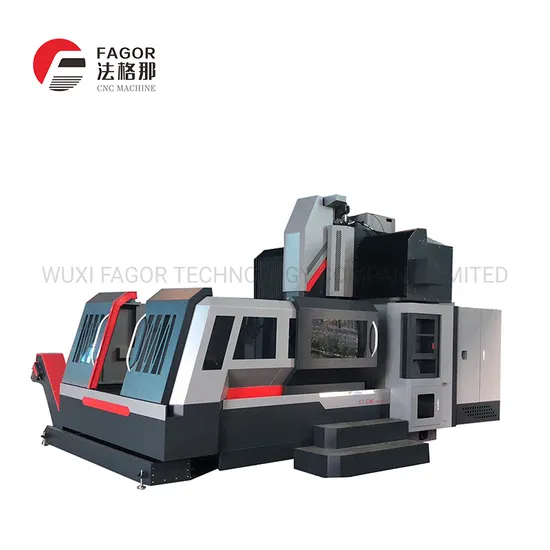

High Precision CE Machine Center Fanuc/Siemens/Mitsubishi Controller Gantry CNC Vertical Milling Machine
| US$110,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TB-LP2518
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Worktable Size(L×w)(mm)
1600*2500
Max. X Axis Travel(mm)
2500
Max. Y Axis Travel(mm)
1800 (Tool Change 2000)
Max. Z Axis Travel(mm)
1000
Gantry Width(mm)
1800
Gantry Height(mm)
1300
Range of Spindle Nose to Worktable(mm)
150~1150
Recommned Spindle Motor Power(Kw)
22kw
Recommend X/Y/Z Axis Motor(Nm)
36, 36 (Brake)
Max. Loading of Worktable(Kg)
7000
Frame Weight(Kg)
21000
Transport Package
Wood Packing
Specification
6700*4030*3900
Origin
China
Production Capacity
600 Sets Per Month
Product Description
| ITEM | TB-LP2518 | TB-QLP2518(LIGHT) | |
| WORKTABLE SIZE(L×W)(MM) | 1600×2500 | 1600×2500 | |
| MAX. X AXIS TRAVEL(MM) | 2500 | 2500 | |
| MAX. Y AXIS TRAVEL(MM) | 1800 (TOOL CHANGE 2000) | 1800 (TOOL CHANGE 2000) | |
| MAX. Z AXIS TRAVEL(MM) | 1000 | 800 | |
| GANTRY WIDTH(MM) | 1800 | 1900 | |
| GANTRY HEIGHT(MM) | 1300 | 1080 | |
| RANGE OF SPINDLE NOSE TO WORKTABLE(MM) | 150~1150 | 200~1000 | |
| WORKTABLE SPACINGOF T-SLOTS(NUMBER-WIDTH×DISTANCE) | 9-22×180 | 9-22×180 | |
| SPINDLE(MODEL /DIAMETER) | BT50/∅190 | BT50/∅190 | |
| SPINDLE DRIVEN | BELT | ROTATE SPEED 6000R/MIN | ROTATE SPEED 6000R/MIN |
| DRIVE RATIO 1.5∶1 (1∶1 OPTION) | DRIVE RATIO 1.5∶1 (1∶1 OPTION) | ||
| ZF REDUCER+BELT,OPTION | 6000R/MIN | 6000R/MIN | |
| 4∶1 | 4∶1 | ||
| X.Y.Z Axis Rapid Speed (mm/min)) | 12000/15000/12000 | 12000/15000/12000 | |
| X.Y.Z Axis Speed (mm/min) | 1-10000/1-10000/1-8000 | 1-10000/1-10000/1-8000 | |
| X/Y/Z AXIS BALL SCREW | X:6312,Y:5010,Z:5010 | X:6312,Y:5010,Z:5010 | |
| X/Y/Z AXIS LINEAR SPECIFICATION/SLIDER NUMBER | X:ROLLER GUIDE 55/8 Y:ROLLER GUIDE 55/4 Z:RECTANGULAR ROLLER | X:ROLLER GUIDE 55/8 Y:ROLLER GUIDE 55/4 Z:RECTANGULAR ROLLER | |
| X/Y/Z AXIS MOTOR CONNECT WAY | DIRECT | DIRECT | |
| RECOMMNED SPINDLE MOTOR POWER(KW) | 22KW | 22KW | |
| RECOMMEND X/Y/Z AXIS MOTOR(NM) | 36,36,36 (BRAKE) | 36,36,36(BRAKE) | |
| FRAME DIMENSION(MM) | 6700×4030×3900 | 6840×3600×3295 | |
| MAX. LOADING OF WORKTABLE(KG) | 7000 | 5500 | |
| FRAME WEIGHT(KG) | 21000 | 16000 | |
