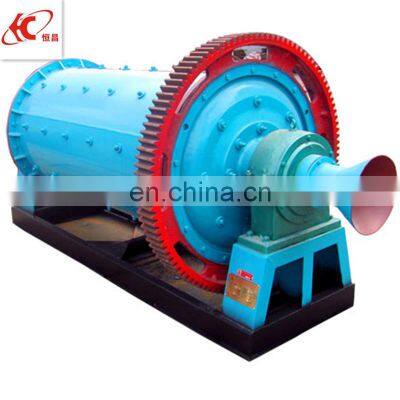

100 kg-500kg per hour Small Ball Mill / Mini Ball Mill

Product Description

Product Description
Products Description
Ball mill is the key equipment for grinding after the crushing process in the beneficiation plant, it is used to grind kinds of materials such as copper ore, gold ore, magnetite ore, quartz, lead zinc ore, feldspar and other materials into fine powder 20-75micrometer. Based on discharging type, It could be grate type, overflow type etc. What's more, the ball mill can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Working principle
Grinding ball mill
The grinding ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the
grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel
balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and
grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Product structure
The grinding ball mill is composed of the feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor, and electric control). The quill shaft adopts the cast steel part and the liner is detachable. The turninggear wheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The ultrafine ball mill is with stable and reliable working condition.
Production Advantages
1. High-efficiency. Our ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush.Therefore, it can save energy by 10-20%.
2. Simple structure, easy maintenance. Ball mill is mainly composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). Convenient installation and debugging , easy to operate.
3. High processing capacity,obvious continuous operation advantages. The capacity can get 4.6-260 t/h.
4. Wide-range usage. Ball mill as an old grinding equipment in market, the technology is mature and operated steadily.
Processing materials
 Stone/sand processing line

No	Name	Brand	Notes
1	Vibrating feeder	Hengchang	Model choosen depending on capacity
2	Jaw crusher	Hengchang	Model choosen depending on capacity
3	Impact crusher	Hengchang	Model choosen depending on capacity
4	Vibrating screen	Hengchang	Model choosen depending on capacity
5	Spiral classifier	Hengchang	Model choosen depending on capacity

Product Paramenters
Product detailes of grinding mill
Overseas cases
Overseas exhibition
Customer visit
Certification and honors
Packing&Shipping
The package of ball mill will be designed according to model, wooden case or container, we will strengthen the cargo to avoid collision.
Company Introduction
Related Products
Mining flotation machine
Spiral classifier
Mining leaching tank
FAQ
1.What material do you want to grind?2.The feeding size should be below 25mm, if your size is bigger, we can provide crusher.3.What's your demand capacity per hour?
