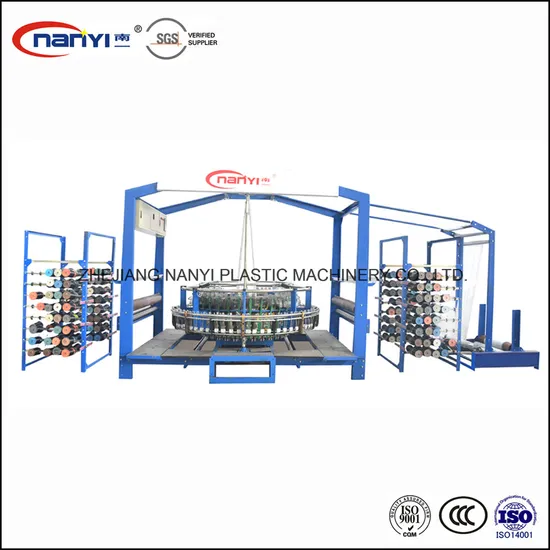

Plastic Polypropylene PP Leno Mesh Bag Circular Loom

Product Description

plastic polypropylene PP Leno mesh bag Circular Loom:
Plastic Leno bag Circular Loom > NY-WYJ-4/750
This kind of circular loom is used to weave the mesh bags to packing vegetables,onions,potatoes,fruits ,etc, it can use round fiber or flat fiber as warp fiber , and flat fiber as weft fiber only to weave mesh Leno fabric .
★ Sensitive automatic stop with the intelligent detector for warp-breaking,weft-breaking and weft-ending
★ rimless wheel shuttle style, less friction, more steady running;
★ Latest weft & warp detecting system, lower waste, higher efficiency;
★ Adopts the latest energy saving synchronous motors to control the winder,main frame and fabric lifting roller to be synchronized, when the loom stops,the winder stops at the same time with no harm of rubber sheet of winder roller and the fabric, also avoid less density of fabric which is usually caused by restarting the loom after stop
★ Adopts the latest energy saving synchronous motors to adjust the weft density and com[ensate the weft density in case of weft-breaking,that improve the evenness smooth of woven fabric

Model No.	NY-WYJ-4/750
Number of Shuttle	4
Weaving Folding Width	300-750
Max. Number Warp (pcs)	512
Max Diameter of Warp Bobbin	110mm
Max Diameter of Weft Bobbin	110mm
Max Revolution	120rpm
Noise(A)	< 65
Total Power of Motor(kw)	2.7
Bobin Size (ID*L)	Φ38*230mm/Φ35*218mm
Max Winding Diameter	1500mm
Installing dimensions(L*W*H)	7.5*2.4*2.7 m
Approxi.Weight(kg)	1900
