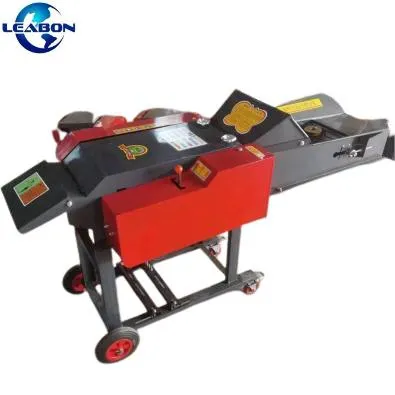

Agriculture Equipment Farm Machinery Horse Feed Chaff Cutter Machine for Rape Straw Chaff Cutter

Product Description

Agriculture Equipment Farm Machinery Horse Feed Chaff Cutter Machine for Rape Straw Chaff Cutter
Product Description
Chaff cutter is mainly used for cutting green (dry) corn stalks, rice straw and other kinds of crop stalks and pasture grass agricultural livestock feed processing machinery. Suitable for breeding cattle, sheep, horses, deer and other livestock, become a good helper for farmers guillotine cutting grass. Uses: guillotine cutting green (dry) corn stalks, rice straw and other crops and pasture grass, suitable for small, medium and large farms, feed processing plants. It can also be used in paper making, straw power generation and other fields.
Product Parameters

Model	LB-5
Chain width	275
Capacity	5t/h
Motor(kw)	4kw 3Phase
Weight	105kg
Dimension(mm)	1800*550*980mm

More Pictures
Working Process
Other Type Chaff Cutter
The machine is powered by a motor. The power is transmitted to the main shaft, and the gear at the other end of the main shaft transmits the speed-regulated power to the grazed grass through a gear box, a universal joint, etc. When the material to be processed enters between the upper and lower pressure grasshoppers, it is pressed. Holding and feeding at a certain speed into the cutting mechanism, after the high-speed rotary cutter is chopped and thrown out of the machine through the grass.

Technical Parameter

Model	Power(KW)	Weight	Dimension(mm)	Capacity(T/H)
LB9Z-3.0	5.5	180	1250*1150*1670	2.5-3.5
LB9Z-5.0	5.5	350	2690*1210*2390	4.5-5.5
LB9Z-8.0	7.5	480	3110*1500*2860	6-8
LB9Z-10.0	15	1000	3510*1800*4210	8-10
LB9Z-12.0	18.5	1285	3810*1900*4230	12-18
LB9Z-15.0	22	1500	4100*1950*4350	15-20
LB9Z-20.0	30	2000	4350*2050*4550	20-30
LB9Z-30.0	45	3000	4850*2350*4550	25-38

Packaging & Shipping
Company Profile
Our Service And FAQ
Our service
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can provide you the different mould to meet your different requirements.
5.We can also meet the special voltage demand.
6.The engineer is available to service machinery oversea.
FAQ:
Before quote, please kindly inform us follows information with us.so then we can suggest a suitable model chaff cutter machine for you.

Q1:What is your raw material?

Q2:What is the capacity you need?(t/h)

Q3:What's the size of final products?
