Product Description

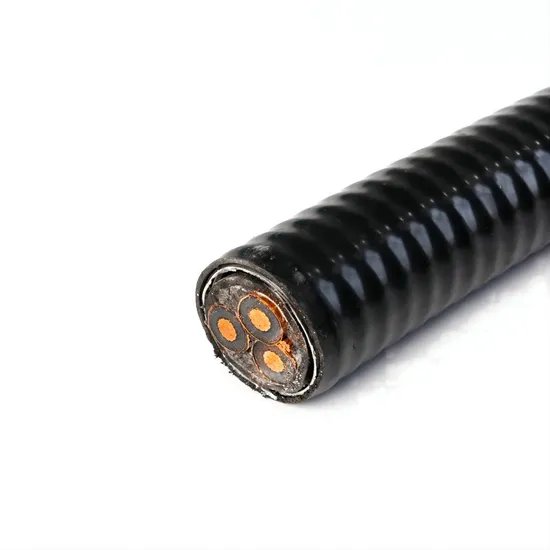

Product Description TECK90 is an interlocked armoured cable for use in petro-chemical, pulp and paper, and other industrial application environments. TECK90 can be used in open and concealed wiring, direct burial, and in hazardous locations.
The insulated conductors are made with cross-linked polyethylene and twisted with an uninsulated ground wire. The twisted core is covered with a PVC jacket, then covered with either interlocked aluminum or galvanized steel, and covered with a PVC jacket over the armour.
TECK90 is manufactured to CSA C22.2#131 and CSA C22.2 #174 to allow it to meet the certain C S A tests including; flame test FT4,-40C cold temperature impact test, low acid gas and sunlight resistance.
TECK90 is available in 600 and 1000-volt constructions from #14 to 500 kcmil in copper. Cables can be manufactured up to 50 conductors. Custom cables are available upon request including composites, vertical riser, and coloured jackets.

Conductor	Class B Compacted/compressed stranded copper
Insulation	Cross-linked polyethylene(XLPE),90°C rated
Ground	Class B compacted/compressed stranded copper bare ground conductor
Assembly	Multiple conductor cables assembled with suitable fillers and binder tape
Inner Jacket	Black polyvinyl chloride(pvc), 90°C rated
Armour	Aluminum Interlocked Armour(AIA)
Overall Jacket	Black polyvinyl chloride(pvc), 90°C rated (optional colors available)

Product Parameters

Conductor Size (AWG or Kcmil)	Number of Conductors	Grounding Conductor Size (AWG or Kcmil)	Approx.Diameter Inner Jacket	Approx.Diameter Armour	Approx.Diameter Outer Jacket	Ampacity 30°C Ambient(Amps)		Approx Weight
			Inches	Inches	Inches	75°C	90°C	Ibs/1000 ft
8	2	10	0.590	0.800	0.900	45	45	397
8	3	10	0.627	0.837	0.917	45	45	466
6	2	8	0.720	0.930	1.030	65	65	536
6	3	8	0.768	1.088	1.187	65	65	710
6	4	8	0.883	1.203	1.283	65	65	888
4	3	8	0.907	1.228	1.328	85	90	958
4	4	8	0.994	1.318	1.394	85	90	1144
3	3	6	0.965	1.285	1.385	100	110	1116
3	4	6	1.058	1.378	1.458	100	110	1351
2	3	6	1.030	1.350	1.450	115	125	1281
2	4	6	1.131	1.451	1.551	115	125	1559
1	3	6	1.211	1.531	1.651	130	145	1595
1	4	6	1.333	1.653	1.773	130	145	1970
1/0	3	6	1.295	1.615	1.735	150	160	1867
1/0	4	6	1.427	1.747	1.868	150	160	2303
2/0	3	6	1.390	1.710	1.830	175	190	2282
2/0	4	6	1.533	1.864	1.984	175	190	2774
3/0	3	4	1.498	1.818	1.938	200	215	2623
3/0	4	4	1.654	1.984	2.104	200	215	3338
4/0	3	4	1.619	1.949	2.047	230	240	3168
4/0	4	4	1.849	2.179	2.299	230	240	4103
250	3	4	1.826	2.156	2.275	255	270	3760
250	4	4	2.013	2.343	2.464	255	270	4878
300	3	4	1.940	2.270	2.420	285	300	4378
300	4	4	2.141	2.471	2.622	285	300	5512
350	3	3	2.048	2.378	2.529	310	330	4962
350	4	3	2.262	2.592	2.742	310	330	6266
500	3	3	2.327	2.657	2.807	380	400	6574
500	4	3	2.573	2.903	3.054	380	400	8382

Detailed Photos
Packaging & Shipping
* We can design and produce according to client's requirement. Any requirement, feel free to contact us!
Company Profile
Established in 1994,Henway Electric Group Inc has now developed into an innovative enterprise with strong R&D ability after 20 years in the industry. It covers an area of 210,000 square meters and has more than 2,000 employees. It has successively introduced about 2,000 items of advanced
R&D, production and testing equipment. The annual production capacity exceeds 30 billion yuan.Henway's products can be divided into four categories,namely power cable, wire &cable for electrical equipment, communication cable and building wire.They include insulated power cable of 220KV
and below, Rubber insulated cable of 35KV and below, Aerial insulated cable,Overhead conductor,Mining cable
etc,a total of nearly 30 product series with nearly 4,000 types and 50,000 items.The products are widely used in the fields of infrastructure, utility, hydro-water projects, iron, mining, petroleum, chemical industry,building,subway, high-speed rail,airports,etc.They have been exported to more than 100 countries around the world.
Henway passed ISO 9001,ISO 14001,OHSAS 18001,and successively acquired TUV certificate,CE certificate,UL certificate and so on.More than 30 years of development and cultivation makes the extraordinary achievements of Henway.
Henway is still promoting the enterprise's scale,technology and brand construction.
Heway Cable-make pioneering efforts and forge ahead !
Certifications
FAQ 1. Q:How does your factory control the quality?
A:Factory has a quick and enthusiastic merchandisers team, strict and responsible QC team, service for many well-known brands all around the world with our high-quality products and strict.
2. Q:Can I visit your company?
A: Sure,If you need,we will arrange the driver to pick you up.
3. Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4. Q:Have you ever supplied cables to our country?
A: Henway Cables have been sold to over 100 countries and regions in the world. you can contact me for details.
5. Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables. Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7. Q:How long is your delivery time?
A: According to your order's quantity. Usually our lead time is 3 - 20 working days.
For more information about wires and cables, please feel free to contact us. Your inquiries will be replied to within 6 hours!!
