Conveyor Belt Roll Slitting Cutting Automatic Machine

Product Description

★Features:
1.Widly use for all types of conveyor belt including PU PVC PVK ... belt thickness up to 10mm .
2.The whole machine is sent and can be used without assembly.
3.Easy to use &simple controls allow warehouse staff to use safely and quickly.
4.cutting speed adjustable as different request .
★Description:
1.Aluminum alloy body, surface oxidation treatment.
2.Controller panel have three working positions: FWD forward - rotating/ REV reversal reverse and natural position.
3.Pneumatic roller tensioner to keep coils tight.
4.Manual adjustable-feed belt fence.
5.Fix blade with knife mounted on moveable toolbar. standard is 5 knives
6.Length counter, enables the cut length to be checked when cutting belt.
★Technical Datasheet

Model	CC2000	CC3000	CC3400
Working Table Width	380mm
Max.Cutting Speed	47 Rotation/Min
Max.Belt Width	2000mm	3000mm	3400mm
Max.Belt Thickness	10mm
Min.Belt Thickness	0.5mm
Min.Cutting Width	25mm
Machine Dimension	2480*1070*1020mm	3700*1070*1250mm	3890*1110*1380mm
Equipped Blade	5pcs
Power	750W
Voltage	1PH 220V
N.W.	420KG	600KG	690KG
Packing Size	2670*1150*1420mm	3890*1150*1540mm	4070*1200*1640mm
G.W.	470KG	670KG	780KG

★Machine Detail

Rubber Roller--Hold the belt to run	Meter Counter

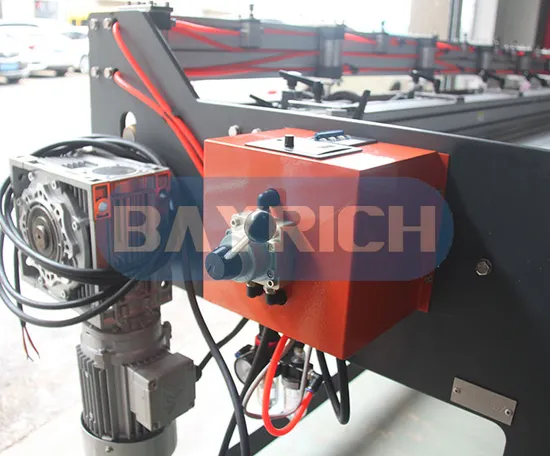

Motor and Speed Controller
Belt Align Device

★Main Components

Frequency Converter & controller -- Shihlin (Taiwan)

★Accessories Part for Free

Blade--10pcs	Meter Counter--1pcs

★Optional Accessories

	Winder stand (equipped Motor & Connect with Machine)
	Winder stand (equipped Motor)
	Winder stand
