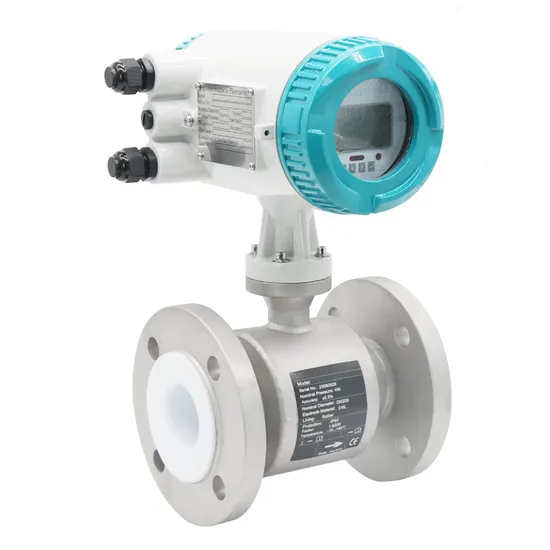

High Accuracy Stainless Steel Corrosive Liquid Electromagnetic Water Flow Meter

Product Description

Product Description Electromagnetic flow meter is one of the most popular flow meters. Flange type electromagnetic flow meter has been used for more than 50 years worldwide. It is widely used for all conductive liquids in every industry, such as water, acid, alkali, milk, slurry etc.
Product Parameters

Size	DN3-DN3000mm
Nominal Pressure	0.6-1.6Mpa(2.5Mpa/4.0Mpa/6.4Mpa...Max 42Mpa)
Accuracy	+/-0.5%(Standard) +/-0.3% or +/-0.2%(Optional)
Liner	PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode	SUS316L, Hastelloy B, Hastelloy C Titanium, Tantalum, Platinium-iridium
Structure Type	Integral type, remote type, submersible type, ex-proof type
Medium Temperature	-20~+60 degC(Integral type)
	Remote type(Neoprene,Hard Rubber,Polyurethane,EPDM) -10~+80degC Remote type(PTFE/PFA/FEP) -10~+160degC
Ambient Temperature	-20~+60deg C
Ambient Humidity	5-100%RH(relative humidity)
Measuring Range	Max 15m/s
Conductivity	>5us/cm
Protection Class	IP65(Standard); IP68(Optional for remote type)
Process Connection	Flange (Standard), Wafer, Thread, Tri-clamp etc (Optional)
Output Signal	4-20mA/Pulse
Communication	RS485(Standard), HART(Optional),GPRS/GSM (Optional)
Power Supply	AC220V (can be used for AC85-250V) DC24V (can be used for DC20-36V) DC12V (optional), Battery Powered 3.6V (optional)
Power Consumption	<20W
Alarm	Upper Limit Alarm / Lower Limit Alarm
Self-diagnosis	Empty Pipe Alarm, Exciting Alarm
Explosion Proof	ATEX

Applications Electromagnetic flow meter is widely used in water treatment, food industry, pharmaceutical, petrochemical, paper mill, chemical monitoring etc. In the metallurgical industry, it is often used to control the flow of cooling water for continuous steel casting, continuous steel rolling, and steel-making electric furnaces;
In the field of water supply and drainage in public utilities, electromagnetic flow meters are often used for the transfer measurement of finished product water and raw water in water plants;
In the pulp process of the paper industry, electromagnetic flow meters are involved in the measurement of the flow of grinding pulp, water, acid, and alkali;
In the coal industry, measuring coal washing and pipeline hydraulic conveying coal slurry;
As for food and beverage industries, it is used for beer and beverage filling measurement;
As for chemical and petrochemical industries, it is used to measure corrosive liquids, such as acids and alkalis etc.
Detailed Photos
Why Choose Us Installation Instructions
In order to obtain a stable and accurate flow measurement, it is very important that the flow meter is installed correctly in the pipe system.Do not install the meter near equipment that produces electrical interference such as electric motors, transformers, variable frequency, power cables etc.Avoid locations with pipe vibrations for example pumps;
Do not install the meter close to pipeline valves, fittings or impediments which can cause flow disturbances;
Place the meter where there is enough access for installation and maintenance tasks. Model Selection

ATLD		xxx	x	x	x	x	x	x	x	x
Caliber	DN3mm-DN3000mm
Nominal Pressure	0.6Mpa		1
	1.0Mpa		2
	1.6Mpa		3
	4.0Mpa		4
	Other		5
Connection Mode	Flange connection			1
	Clamp connection			2
	Sanitary connection			3
Liner Material	PTFE				1
	PFA				2
	Neoprenen				3
	Polyurethane				4
	Ceramic				5
Electrode Material	316L					1
	Hastelloy B					2
	Hastelloy C					3
	Titanium					4
	Platinum-iridium					5
	Tantalum					6
	Stainless steel covered with tungsten carbide					7
Structure Type	Integral type						1
	Remote type						2
	Remote type immerse						3
	Integral type Ex-proof						4
	Remote type Ex-proof						5
Power	220VAC 50Hz							E
	24VDC							G
Output communication	Flow volume 4-20mADC/pulse								A
	Flow volume 4-20mADC/RS232C communication								B
	Flow volume 4-20mADC/RS485 communication								C
	Flow volume HART output/with communication								D
Converter Figure	Square									A
	Circular									B

Packaging & Shipping
Q: How long is your delivery time?
A: it depends on the quantity. Normally it's about a week to two weeks.
Q: How to get quotation?
A: Please tell us the pipe diameter, measuring medium, flow rate, temperature, pressure, connection type and accuracy of the product you need, we will choose the most suitable product for you.
Q:can i design our own logo or color ?
A:sure ! we are glad to help you.
Q:Can I place a small order for the first time?
A:YES. This shows your recognition of us, I believe we will have longer-term cooperation.
