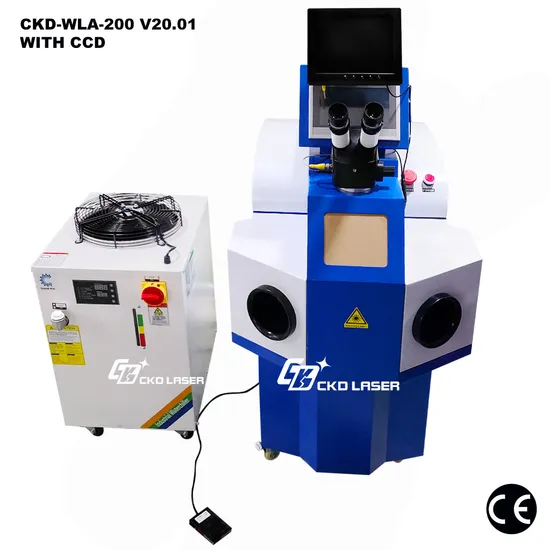

Hot Sale Laser Spot Welding Machine for Jewelry Repairing Electronic Component Repair
| US$3,300.00-5,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CKD-WLA-200
Application
Biomedicine, Electronic Industry, Automotive Industry, Manufacturing Industry, Jewellery Welding
Technical Class
Pulse Laser
Control
Manual
Power Density
Heat Conduct Welding
Laser Classification
YAG Laser
Type
Jewellery Laser Welding Machine
Shipping Date
3-5 Work Days After Payment
Cooling Model
Water Cooling
Attachments
Water Chiller and Foot-Switch
Transport Package
Wooden Box
Specification
CE passed, Europe/ Asia/ America Standard
Trademark
CKD LASER
Origin
Shenzhen, China
HS Code
8515809090
Production Capacity
200 Set/Month
Product Description
APPLICATION
INDUSTRY:
Precision welding on various tiny parts, for example, jewelry, electronics, communication, precision metails, watches and also can be used to fill blister of false tooth, etc.
MATERIAL:
Gold, silver, titanium, stainless steel, copper, aluminum and so on.
TECH PARAMETERS
| Parameter | Unit | Data |
| Type | CKD-WLA-200 | |
| Laser power | W | 200 |
| Working medium | Nd:YAG | |
| Central Wavelength | nm | 1064 |
| Pulse frequency | Hz | 1-40 |
| Pulse width | ms | 0.1-20 |
| Electricity | A | 60-300 |
| Min. output power | W | 10 |
| Single pulse energy | J | 80 |
| Ocular multiple | times | 10 |
| Cooling mold | Water cooling | |
| Water chiller | Outside | |
| Power Source Requirement | 90-240V/50-60Hz/2KVA | |
| Working temperature | ºC | 25±2 |
| Dimension | mm | 1010*550*1220 (machine) |
| 700*360*590 (includes the size of filter vat) | ||
| Weight | Kg | 185 (with outside water chiller) |
OPTIONAL STANDBY PARTS OF CONSUMPTIONS
ADVANTAGES
* Precision weld without surface touch.
* Small heat-affected zone.
* Data adjustable and easy operation.
* Professional desingn, convenient to metal recycle.
* Helthy, use adcantaced automatic light shielding system, eliminating light stimulating to eyes.
* 10X microscope magnification, cross cursor indicating, the shielding gas output in synchronization with the laser, assure good appearance of solder joint.
PACKIGN&SHIPPNG
SAFETY PROTECTIVE INNER
PACKING AND OUTER PACKING
SEPARATELY SAFTY PACKING TO SAVE YOUR SHIPPING CHARGE
