Universal Tooling Milling Machine HX6436/HX6436CL/XL6436
| US$15,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HX6436/HX6436CL
Type
Tool Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Manual
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Wooden Pack/Container
Specification
2320× 2100× 2000
Trademark
Hercules
Origin
China
Product Description

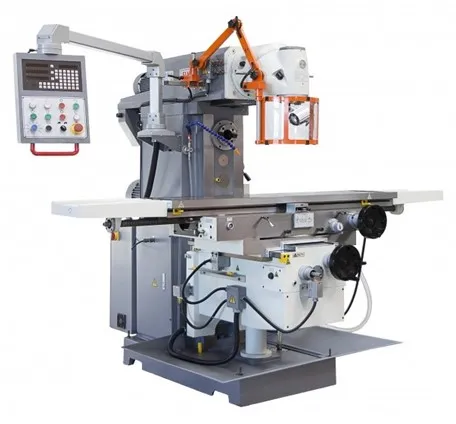

Machine PhotoHX6436C/HX6436CL Machine Features
• Rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing.
• Precision-grounded guideways with hardened surfaces for long-term accuracy and wear-resistance.
• Large work area of 1600 x 360 mm and up to 350 kg table load capacity
• Quiet, precision-made headstock gears with hardened and grounded gears
• Universal milling head can reach fast conversion between vertical milling and horizontal milling
• Most of machining angle can be set with combining both swivel levels,
• Servo motor allows continuous adjustment for all 3 axis feeding
• Control panel swings out to either side and features an integrated position indicator
• 5.5 kW main drive with high torque
• Coolant system and chip tray included
Specifications:
| Specification | Unit | HX6436C | HX6436CL |
| Table size | mm | 1325×360 | 1600×360 |
| Table travel (X/Y/Z) | mm | 1100/300/400 | 1300/300/400 |
| Table feed(X/Y/Z) | mm/min | 30~750/20~500/15~375 | 30~750/20~500/15~375 |
| Spindle taper | 7:24 IS050 | 7:24 IS050 | |
| Arm travel | mm | 600 | 600 |
| Distance between spindle nose and table surface | mm | 190-590 | 190-590 |
| Swivel Table | ±45°Optional | ±45°Optional | |
| Distance between horizontal nose and table surface | mm | 20-420 | 20-420 |
| Distance between spindle and arm | mm | 200 | 200 |
| Spindle speed range | r.p.m | 12 steps 60-1750 (V) 12 steps 60-1800 (H) | 12 steps 60-1750 (V) 12 steps 60-1800 (H) |
| T-slots (NO./width/pitch) | mm | 3/18/80 | 3/18/80 |
| Main motor power | Kw | 5.5 (H) 4 (V) | 5.5 (H) 4 (V) |
| 3 to feed Ac servo motor torque | N.m | 15 | 15 |
| Overall size | mm | 2320×2100×2000 | 2520×2100×2000 |
| Net weight | kg | 2750 | 2850 |
Standard Accessories:
| name | Specification Model | Qty |
| 7:24 middle cover | 7:24 ISO50/MS4 | 1 |
| Horizontal arbor assembly | Ф27 | 1 |
| Horizontal arbor assembly | Ф32 | 1 |
| Drawbar | M24 | 2 |
| Double-ended wrench | S22-24 | 1 |
| Double-ended wrench | S17-19 | 1 |
| Double-ended wrench | S36-41 | 1 |
| Inner hexagonal wrench | 5 | 1 |
| Inner hexagonal wrench | 10 | 1 |
| Inner hexagonal wrench | 14 | 1 |
| Sleeve | M24 | 1 |
| Washer | M24 | 1 |
| Taper shanl sets milling cutter arbor | 7:24 ISO50-Ф32 | |
| Operation manual | 1 | |
| The packing list | 1 | |
| Certification | 1 | |
| EP1C series servo drive manual | 1 |
