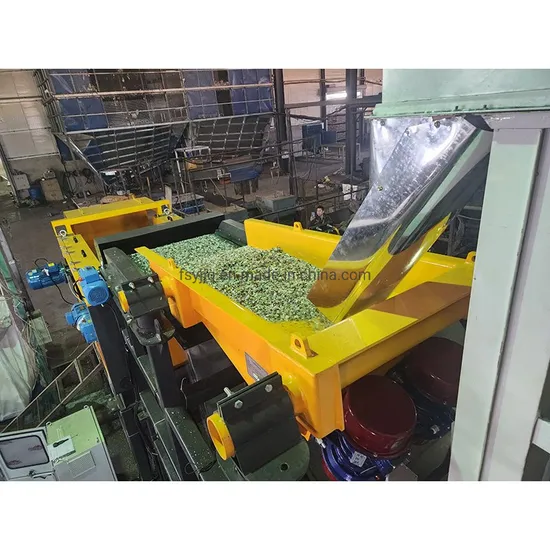

High-Performance Eddy Currents Machine to Recovery Ferromagnetic Aluminum Fragments

Product Description

EDDY CURRENT NON-FERROUS METAL SEPARATORS PERMANENT RARE EARTH MAGNETIC
Removes Metallic Impurities in Plastic Recycling Process
What we could do in PET bottles /flakes PP PVC UPVC PP HDPE ABS PCR(Post Consumer Recycled) plastic recycling process Whether it's plastic flake, pellets or whole plastic bottles, Ejet offers solutions for the removal of ferrous , non-ferrous and stainless steel metal contamination .are for further processing to be manufactured into recyclate ground material or fibres .

Shredded PET is processed over special magnetic separation system (Eddy current separators ECS with magnetic separation devices fitted to ) to remove small, fingernail-sized ferrous . aluminum ,and removes weakly magnetic stainless steel fragments (from cans and bottle cap). provide superior metals removal in recycled PET bottle and regrind recycling applications. could effectivily make the aluminum, brass, bronze, copper and other metallic removed from the post-consumer PET beverage containers bottles recycling stream. also extremely effective for Plastic Flake and Regrind Recycling.
Ejet`s ferrous , non-ferrous and stainless steel metal contamination removal equipment for Plastic Recycling Facilities .These units can also be designed into "custom systems" in combinations with Transfer Conveyors into and out of the system,Magnetic Drum Separation Feeders, High Intensity Magnetic Separation Conveyors, Magnetic Crossbelt Conveyors and Vibratory Feeder Trays

Mainly operation to removal harmful Metal In Plastic Waste

Early in the process, ferrous and non-ferrous metal contamination is removed from the waste plastic using Magnetic Separators and Eddy Current Separators. Initially, after the plastic is released from the compacted bale, the waste is fed into a primary shredder. To protect the shredder from damage, an Overband Magnet is suspended across the feed conveyor and removes large ferrous metal.
At this stage, the type of ferrous metal contamination found in the plastic is diverse and often surprising. It can include metal packaging miss-sorted at the MRF, heavy lumps of iron that increase the weight of the plastic bale, and metal picked up during transportation. There have even been reports of car engine blocks. Reasonably sized items of cast iron entering the shredder will cause significant and costly damage and result in the plant being closed until a repair is possible.
After the primary shredder, the waste plastic has been reduced in size and many contaminants liberated. This shredded waste plastic is fed onto another Magnetic Separator, commonly a Drum Magnet or Pulley Magnet, to remove liberated smaller ferrous metals.
Spanner after passing through and damaging a shredder
The type of ferrous metal separated at this stage includes steel spanners, nuts, bolts, screws, fine metal wires, springs, iron shards, fine ferrous dust, and chunks of stainless steel. Most of the ferrous metal was not part of the original plastic packaging and has been introduced between disposal and processing.
The cleansed plastic waste then passes over a high intensity concentric Eddy Current Separator to remove fine non-ferrous metals. Commonly separated metals include aluminium beverage cans, foils, tubes, and even window frames.
After the metal contamination has been removed, the plastic waste moves to the next stage in the plant, which could be further separation of contamination or sorting by colour or plastic type.
Part 1.
Magnetic and sensor-sorting equipment for efficient separation and recovery metallic impurities from crushed plastic flakes ,fractions and Regrind to produce higher purity and increased yield and Protect blow molding, injection molding, extruding and compounding machines in plastic recycling

self-cleaning overhead suspension magnets often working together with a permanent Magnetic Pulley unit and the robust Magnetic Drums (or enclosed type) offer the highest separation efficiency along with outstanding functionality and robustness. wide variety of powerful Rare Earth Magnetic Separators to capture and hold ferrous and weakly magnetic stainless steel from the mixture

Powerful Grate magnet & ultra intensity roll incorporates extremely high gauss fields, neodymium rare earth magnets to hold and extract iron and paramagnetic 300 stainless steel metal and Wire-Cleaning Applications for product stream protection against fine and tramp metal contamination. widely used in abrasive materials, plastic, silicon sand, medicine, glass, founding, building material, the special material ,metal and electronic products grade, resources recovery and so on. The first stage of separation focused on removing magnetic particles with a high-intensity Rare Earth Drum Magnet. Magnetics accounted for approximately 1 %. Removing the magnetics is beneficial to subsequent processing

Part 2.
aluminum, copper and other nonferrous fines even ultra-fine harmful contamination recovery ,
typically missed on traditional eddy current separators

The Eddy Current Separator ideal for separating and throwing smaller, conductive, non-ferrous materials, such as aluminum, copper, brass and zinc plate . Ultra High-frequency model (UHF/HFEC) significantly improved separation of small and finest metallic particles from plastics and other non-metallic particulate. typical suitable for the PET /PETE recycling that having great requirement on the material`s purification . With the new eddy current separator, a recycler can obtain a single pass aluminum reduction of up to 92 percent and achieve a clean PET yield of between 97-99 percent

Part 3.
Vibrating feeder , Belt Conveyor ,Bucket Elevate , Screw feeder etc other handling equipment required not only supplying and cutting out materials but also passing materials smoothly to next process



Working plant for plastic recycling
Except in recycled plastic processing, EDDY CURRENT NON-FERROUS METAL SEPARATORS PERMANENT RARE EARTH MAGNETIC Removes non-ferrous metallics from: • plastics • glass cullet • electronic scrap • automobile shredder residue (ASR) • boiler bottom ash • spent foundry core sand • municipal solid waste (MSW) • co-mingled recyclables • urban wood waste • mixed

Recovery of iron and steel scrap using shredder systems for shredded mixture scraps separation and sorting for every task in Auto shredder residue: ASR Recovery of non-ferrous metals for recycling & secondary smelting Effective recovery & quality improvement of aluminium scrap Cable recycling: Optical sorting technology for recycling cables .Separation & sorting through all fractions in electrical scrap"> Automatic sorting valuable residues recover valuable materials from household and commecial waste ,also for Separation and sorting recycling incineration bottom ash foundry residues Sorting & recycling of valuable materials from construction and demolition waste Plastic /glass sorting equipment for metal removal recycling

Our Service
1.We cooperate with superior suppliers.
2.The test of materials is free.
3.Strict quality checked for every machine before packing.
4.Engineers available to service machinery overseas.
5.Sales service support, also technology support.


About us

Fushun Ejet Magnetic Equipment Co.Ltd, founded in 2006, located in Fushun City, northeast of China, the working plant is 6000sq.m. ,just takes 40 minutes from Shenyang taoxian international airport to our factory.with a large product range of eddy current separator, magnetic separator, induction sorter,Xray sorter and Air separator, trommel screen , belt conveyor etc handling equipment and much .
EJET always providing the most cost effective and beneficial in research,development, manufacturing , sale and service for any of customer industrial magnetic needs.
well equipped to handle whatever your project is .not matter Municipal solid waste recycling; plastic recycling;glass recycling, Aluminum recycling .Incineration Bottom Ash recycling ,UBC sorting and other auto shredding scraps recycling industries or all kinds of mineral processing industries.
Dedicated to strict quality control and thoughtful customer service,EJET's experienced staff members are always available to discuss your requirements and ensure full customer satisfaction . The products have been exported to over 50 countries, and obtain highly praise from customers .
In addition, EJET had obtained CE certificates to European market, and OEM ,ODM orders also could be available . We will strive to provide an efficient, capable, and friendly manner that everyone with whom we come in contact will be happy to b associated with us.
