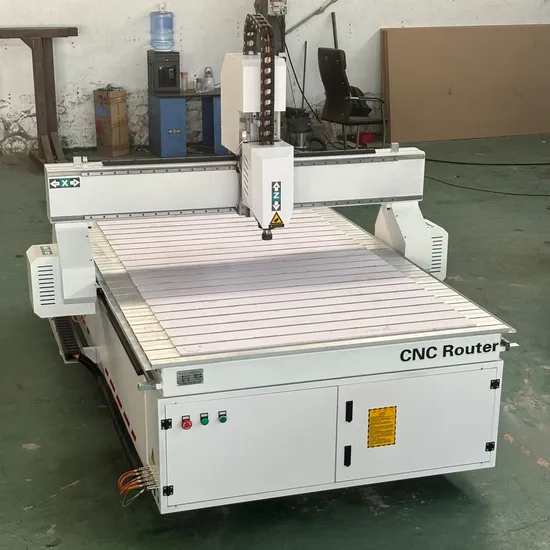

Efficient Woodworking CNC Router for Creative and Custom Designs

Product Description

Product Parameters

Woking area	600*900*200mm or 600*900*500mm
Table style	Aluminum T-slot table with PVC
Table surface	Welded steel tube,cast iron vertical shafts and steel gantry
Spindle	3.0KW water cooling spindle
Spindle rotating speed	0-24000rpm
Collect size	ER20
Guide rail	Taiwan Hiwin linear square guide rail
Driving method	X,Y axis by helicia gear rack,Z axis by TBI ball screw
Motors and drivers	Stepper motor 450B and leadshine drivers MA860H
Control system	NCstudio control system
Invert	Fuling invert
Max.working speed	12m/min
Instruction formate	G code*.u00*.mmg*.plt
Woking voltage	AC220V/AC380V,single phase/3 phsae,50-60Hz
Standard software	Artcam 2010
Compatible software	Type3
Control Cabinet	Independent
Other	Tool sensor;Oiling system;Water pump;Tool Box,English manuals etc.
Optional parts	1)4.5kw water cooling spindle; 2)Rotary axis(80mm//100mm/150mm) diameter; 3)Mach3/DSP control system; 4)Dust collector; 5)Vacuum table with 5.5kw vacuum pump.

This machine can be meticulously tailored to meet your specific requirements, ensuring it aligns perfectly with your unique woodworking needs and creative visions.
Product Description
The Wayne CNC router machine by Liaocheng Wayne New Materials Co., Ltd. is an advanced, intelligent cutting and milling solution. Engineered to cater to a wide array of intricate processing needs, this highly adaptable machine performs routing, drilling, cutting, sawing, slotting, and more. Its innovative carousel tool magazine, positioned beside the spindle or on the fuselage, enables automatic tool changes, allowing the CNC router to undertake multiple, complex processes in a single operation seamlessly. This versatile equipment excels in cutting, engraving, drilling, routing, grooving, and pocketing across materials like wood, MDF, acrylic, PVC, plastic, foam, and others.
The Wayne CNC router machine stands out as the premier choice for enterprises with high production demands. Unlike traditional manual tool change methods, this wood CNC machine features an independent tool magazine loaded with various tool bits. Through computer program control, it effortlessly switches the necessary tools without halting operations, optimizing productivity during processing.
1. Wood Processing: Expertly designed for crafting various furniture items such as doors, windows, cabinets, screens, and more. 2. Advertisement: Ideal for engraving and precisely cutting a myriad of labels and number plates.
3. Art Crafts: Perfect for engraving characters of any language and intricate graphics on gifts and souvenirs.
Main Feature
1. Z-axis feeding height of 200mm, accommodating a variety of material thicknesses.
2. Robust square tube welded steel frame structure with an 8mm thickness, ensuring stability and durability.
3. Choice of an Aluminum T-slot table or Vacuum table paired with a 5.5kw Vacuum pump for optimal material handling.
4. Precision X-axis rack and pinion drive, Y-axis dual rack and pinion drive, and Z-axis 2510 Ball screw for accurate movements.
5. High-quality X, Y, Z axis Taiwan square rails from PMI, offering exceptional reliability and performance.
6. Equipped with a 450B stepper motor and MA860H Leadshine driver, with an option for a servo motor and driver for enhanced control.
7. Features a powerful 3.0KW water cooling spindle and a 3.7kw Fuling inverter, with other spindle options available to suit specific needs.
8. Includes the Nc-Studio-5.4.49 control system, with optional DSP or Mach 3 control systems for versatile operation and ease of use.
Options
1) Optional 4.5kw water cooling spindle for greater power and efficiency.
2) Rotary axis options (80mm, 100mm, 150mm diameter) to expand processing capabilities.
3) Choice of Mach3 or DSP control systems for tailored user experiences.
4) Dust collector option to maintain a clean working environment.
5) Vacuum table with a powerful 5.5kw vacuum pump to ensure secure material placement during processing.
