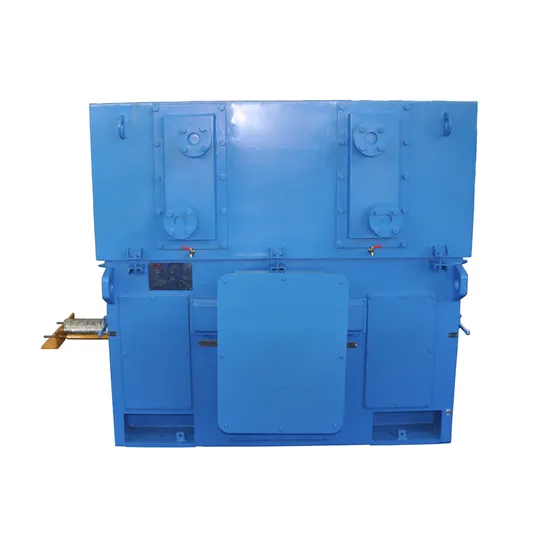

6600V/11000V Yks Air-Water Cooling High-Voltage 3-Phase AC Motor

Product Description

YKS series (6KV/10KV) high voltage motor is a squirrel-cage rotor water-cooled three-phase asynchronous motor. This type of motor has advanced technology, high efficiency, low noise, low vibration, reliable operation, convenient installation and maintenance. The power class, installation dimensions and electrical performance of this series of motors are in compliance with the relevant provisions of the IEC standard.
The YKS series (6KV/10KV) high-voltage water-cooled motor is welded into a box-shaped structure to strengthen the rigidity of the 45° position of the frame. An air-water cooler is arranged above for heat exchange, and the stator coil is double-wound flat copper wire with a F-grade polyimide film, and the heat resistance and electric strength are improved. The core is made of non-oriented cold-rolled silicon steel sheet, and the loss per unit volume is greatly reduced. The stator core is press-fitted to facilitate the welt and overall dipping. The rotor is a shaft welded rib structure, which strengthens the rigidity of the shaft and increases the air inlet area of the rotor. The squirrel cage rotor adopts a reliable cast aluminum process.
The YKS series (6KV/10KV) water-cooled high-voltage motor allows direct start at full pressure. From the end of the shaft, the motor is turned clockwise or counterclockwise. The YKS high voltage three-phase asynchronous motor has a protection rating of IP44 or IP54 and a cooling method of ICW81A.
YKS series (6KV/10KV) high voltage AC motors can be used to drive a variety of different machines. Such as ventilators, compressors, pumps, crushers, cutting machine tools and other equipment, and can be used for prime movers in coal mines, machinery industry, power plants and various industrial and mining enterprises.
Center height range: H450 ~ 630mm
Power range: 220kW~2500kW
Number of poles: 2/4/6/8/10/12
Rated voltage: 10000V/11000V
Rated frequency: 50HZ/60HZ
Protection level: IP44 or IP54
Insulation class: F
Work system: S1 (continuous)
Cooling method: IC81W
Installation form: IMB3
Motor connection: Y (three outlet terminals in the junction box, the junction box from the extension of the spindle is located on the right side of the base)
Altitude: no more than 1000m
This type of motor is suitable for use in environments where the ambient air temperature does not exceed 40 ° C and there is no serious dust, the minimum ambient air temperature is -15 ° C, and there is no corrosive and explosive gas in the air (which can also be made into a damp heat or high-altitude motor).
YKS series (6KV/10KV) water-cooled high-voltage motor adopts the internationally popular box structure. The base and end cover are made of steel plate welded with good rigidity and light weight. After removing the protective cover (or cooler), you can observe and touch the inside of the motor to facilitate the installation and maintenance of the motor. The stator adopts an external press-fit structure. The stator windings are made of Class F insulation material and anti-corona material. The winding ends are fixed by a special lashing process, which is firm and reliable. The whole stator is treated with vacuum pressure impregnated Class F solventless paint (VPI). Thus, the motor has excellent and reliable insulation properties and moisture and impact resistance.
There are many types of motor products manufactured and sold by our company. The main products are high- and low-voltage three-phase asynchronous motors. The motor structure types include squirrel-cage type and winding type. Among them, high-voltage synchronous motors mainly support air compressors and mine ball mill equipment. use. We adhere to the service tenet of "focus on products, service with heart" and provide high-quality motor products to customers.
Our company's motor manufacturing factory adheres to the concept of green, efficient and energy-saving production service, pays attention to the harmonious development of internal and external environment, builds environmentally friendly motor manufacturing enterprises, strictly implements motor standard process, and selects high-quality energy-saving materials to ensure the quality of motor products.
